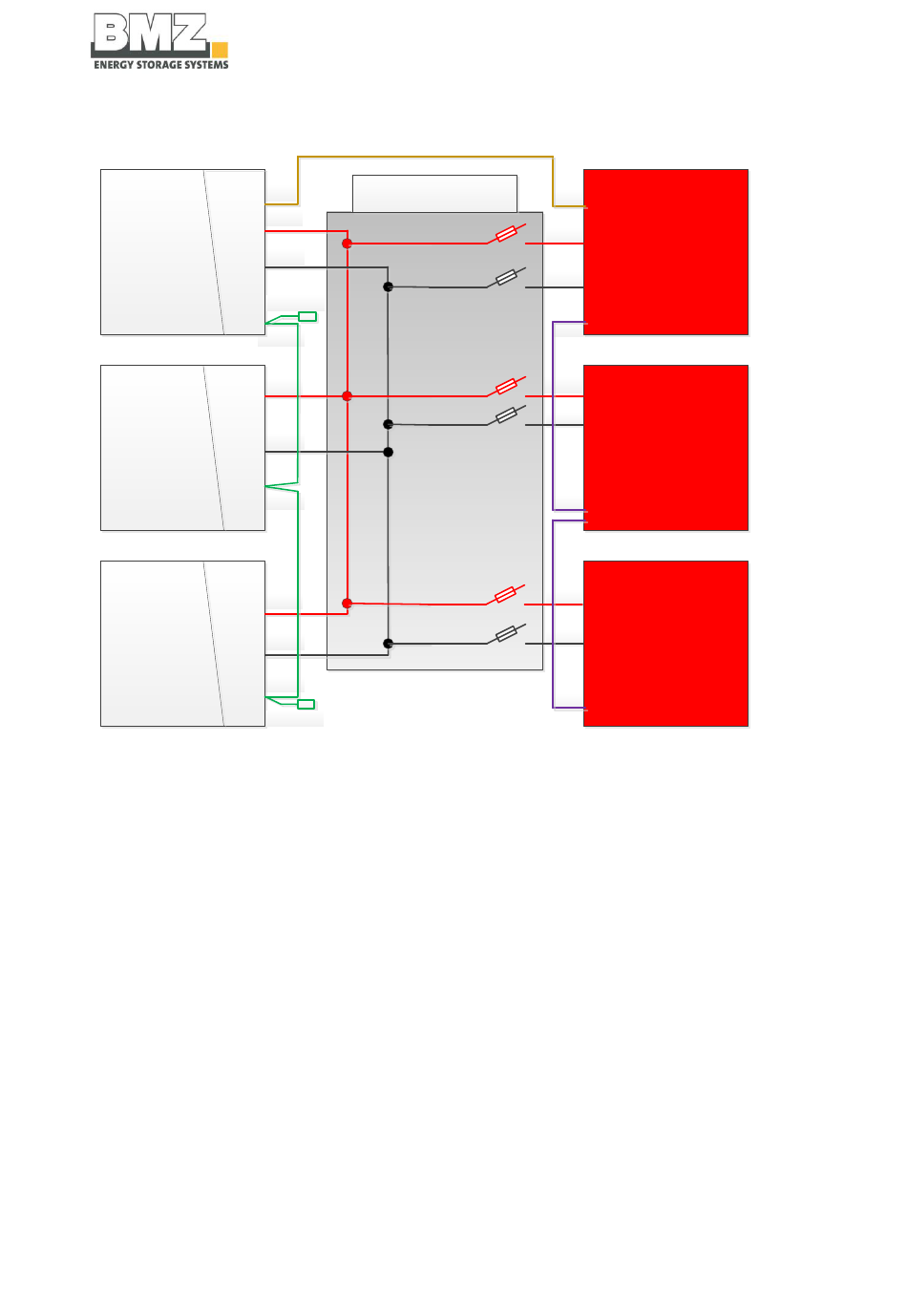

4.8.4 3-phasiger Betrieb des SMA Sunny Island an 3 Stück ESS Batterie
BMZ ESS Battery 1
battery mode „MASTER"
Device adress „1"
BMZ ESS Battery 2
battery mode „SLAVE"
Device adress „2"
BMZ ESS Battery 3
battery mode „SLAVE"
Device adress „3"
Abbildung 4-21: 3 Phasen Betrieb an 3 Stück ESS Batterie
Originalbetriebsanleitung ESS 7.0 | 9.00 | X | Z
BAT BREAKER 3er
CAN
PLUS
MINUS
RS485 terminating
resistor
Intern
PLUS
MINUS
Intern
PLUS
MINUS
Intern
RS485 terminating
resistor
Aufstellung, Montage und Erstinbetriebnahme
CAN
SMA Sunny Island
PLUS
Inverter 1
Inverter „MASTER"
MINUS
SYNC
PLUS
MINUS
SMA Sunny Island
Inverter 2
SYNC
PLUS
SMA Sunny Island
MINUS
Inverter 3
SYNC
