SC3500 QUICK START GUIDE
Drive motor inspection
1. Turn the key switch (G Figure6) to "ON"
2. Depress the accelerate pedal (D Figure6) slightly then loosen it to
check if the machine can be steered forward and stopped.
3. To ensure the security, confirm if the machine can be stopped
immediately by pressing the emergency button (F Figure6). Rotate
the emergency button to reset it.
CAUTION
Climbing capacity of the machine must not exceed
10%.
CAUTION
The brake of drive motor is unstuck when the motor
works normally, it locks when the motor stops
working.
In some
packing/unpacking, machine fault etc., need to move
the machine without drive motor working, please
insert A screwdriver (Figure6 A) drive motor brake
(Figure6 B) and motor (Figure6 C) between the
grooves (Figure6 ), the machine brake is released, the
machine can be moved, after completion, please take
out the screwdriver, otherwise will not be able to start
the machine.

MACHINE START AND STOP

Starting the machine

1. Prepare the machine as shown in previous paragraph.
2. Sit on the seat (J, Figure7), insert the key switch (B) and turn it to
"I". If the LCD (A, Figure7) is 100%, the batteries are fully
charged for use. If the LCD (A, Figure7) is 10%, batteries must be
charged before operation. [Refer to MENTAINENCE chapters for
batteries charging]
3. Press One-Start button (D, Figure7)to start the machine, the
squeegee and brushes are released to the floor automatically,
vacuum motor begins to work.
NOTE
Make sure the squeegee assembly is lifted before the
machine steer backward, or the
Machine will be stopped and LCD screen show
"Error" information.
NOTE
Make sure to turn off brush button before brush
assembly is lifted, and lift the brush assembly before
machine steers forward/backward.
4. Depress the accelerate pedal (N Figure7), operate the machine
forward or backward by steering wheel (L Figure7) together with
forward-backward switch (I Figure7), you can adjust speed by
speed adjusting knob (F Figure7).
5. Adjust solution flow by solution adjusting button (G Figure7) base on cleaning requirement.
special cases, such as machine
G
H
I
J
9
ENGLISH
G
F
E
D
C
B
C
B
A
A

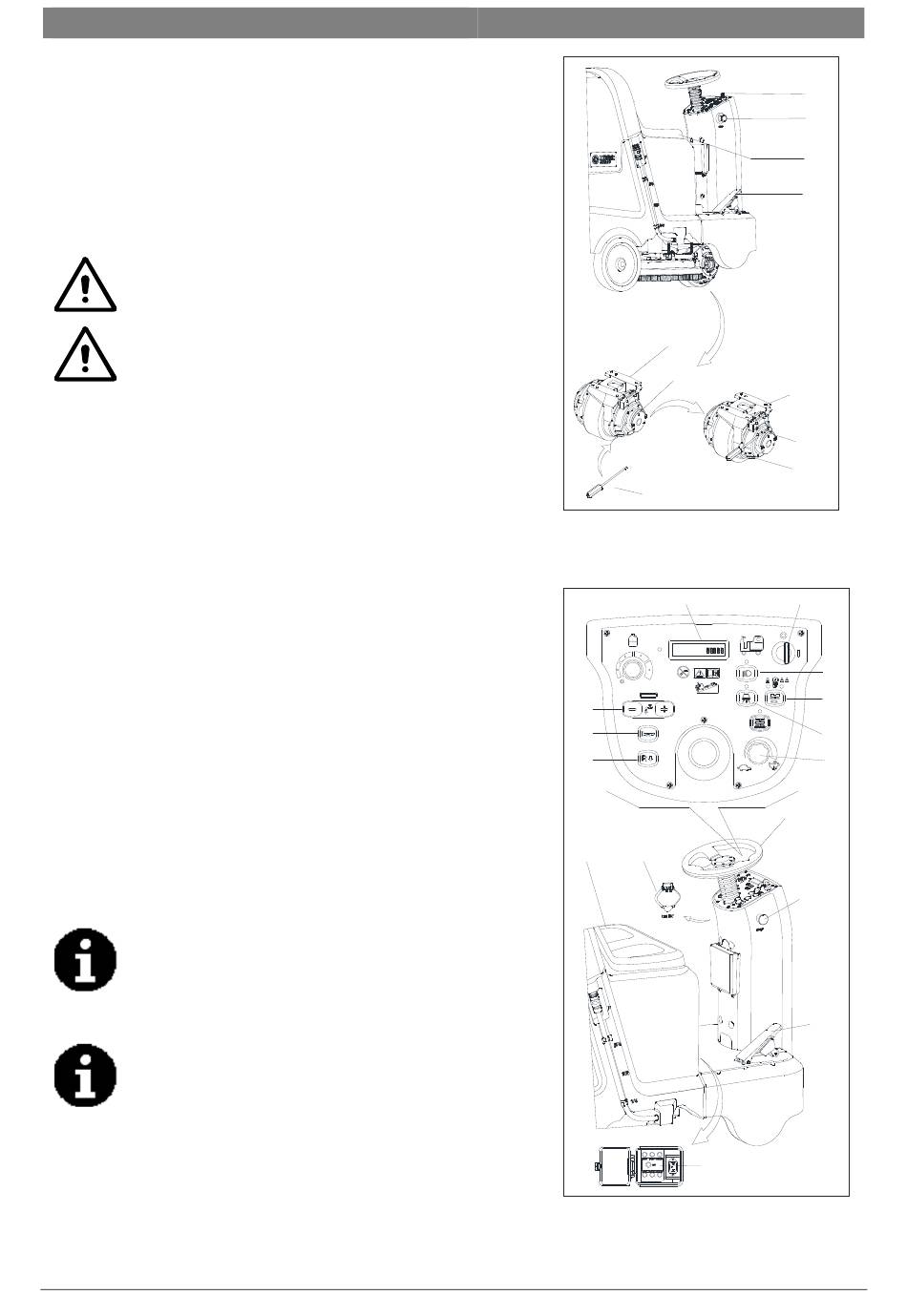

Figure 6
