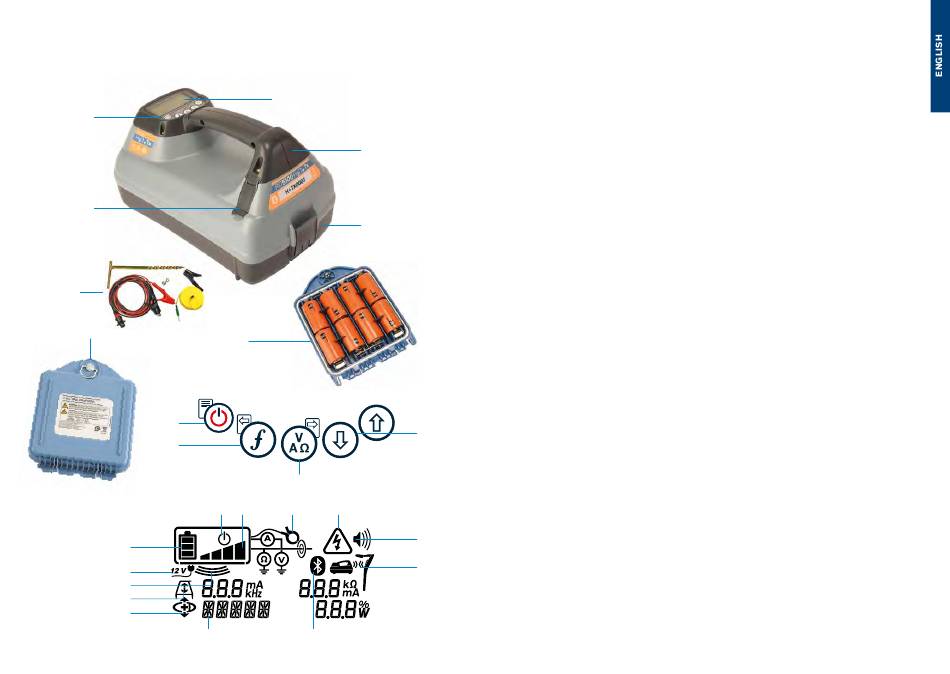

Transmitter features
1. Keypad.
2. LCD.
3. Bluetooth module.
4. Removable accessory tray.
5. Accessories.
6. Side support tab.
7. D-cell battery tray.
8. Optional Lithium-Ion battery pack.
Transmitter keypad
9. Power key.
10. Frequency key.
11. Up and down arrows.
12. Measure key.
Transmitter screen icons
13. Battery level indicator.
14. Operation mode readout.
15. Standby icon.
11 16. Output level indicator.
23
24
17. Clamp icon: Indicates when a
signal clamp or other accessory is
connected.
18. DC Power connected indicator.
19. Induction mode indicator.
20. A-Frame: Indicates when the
transmitter is in Fault-Find mode.
21. CD Mode: Indicates that the
transmitter is in Current Direction
Mode.
22. Voltage WARNING: indicator:
Indicates that the transmitter is
outputting potentially hazardous
voltage levels.
23. Volume level indicator.
24. Pairing icon: Appears when the
transmitter and locator are connected
via iLOC.
25. Bluetooth icon: Indicates status of
Bluetooth connection. Flashing icon
means pairing is in progress.
