06.2006
Installation
Siemens AG 6SE7087-6KP50
SIMOVERT MASTERDRIVES
The unit is mounted directly to a mounting surface. Fixing is by means
of two or four M5 screws.
Mounting surface
260 mm
220 mm

Side view

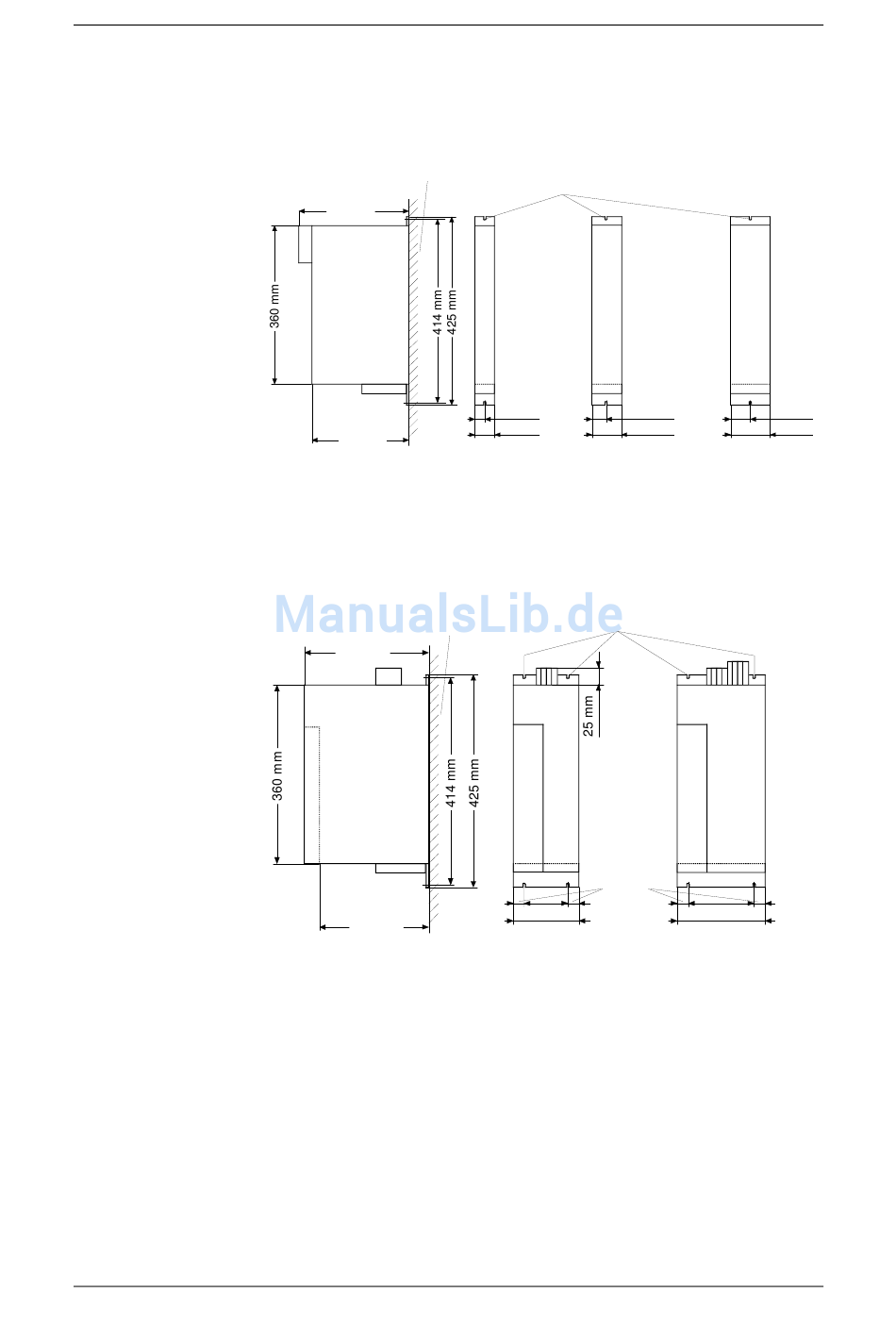

Fig. 5-2 Dimension drawings for housings up to 90 mm wide
Mounting surface
260 mm
220 mm
Side view
Fig. 5-3 Dimension drawings for housings 135 mm and 180 mm wide
Operating Instructions
Slots
for screws M5
22.5 mm 33.75 mm
45 mm
67.5 mm
0.55 kW 1.5 / 2.2 kW
Front view (without front cover)
Cutouts
for M5 screws
22.5 mm
135 mm
5.5 / 7.5 / 11 kW

Front view

Installation
45 mm
90 mm
4.0 kW
180 mm
15 - 37 kW
5-3
