6. Commissioning

By default, all function selection switches are set to OFF.
DIP-Bank 4

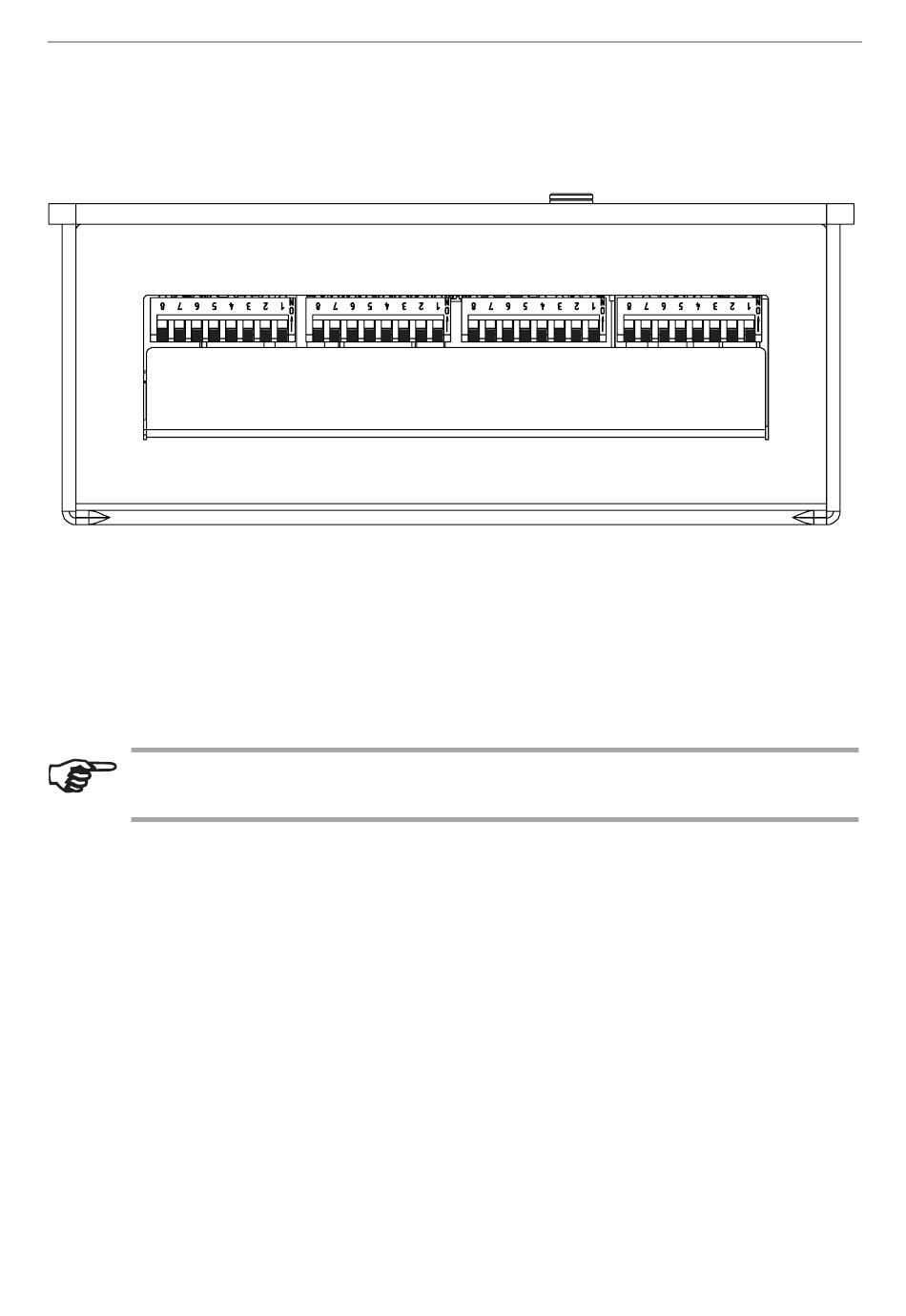

Fig. 8: Function selection switch - Standard setting
Each DIP-Bank provides setting options for the product features of Infrabox
Basic, which are listed below and described in detail.
The settings made in each function setting are shown in the DIP-Bank as well
as the function selection switch.
Note that the controller needs to be disconnected from the mains for
10 seconds after making changes so that the settings are saved.
For standard deliveries, the features are as follows:
Operating mode: Normal
Operating type: Switch
Operating time: 6 hours
Foil sensor: Off
Leading/trailing edge phase control: Not activated
DIP-Bank 3 DIP-Bank 2
p. 18/32
DIP-Bank 1
