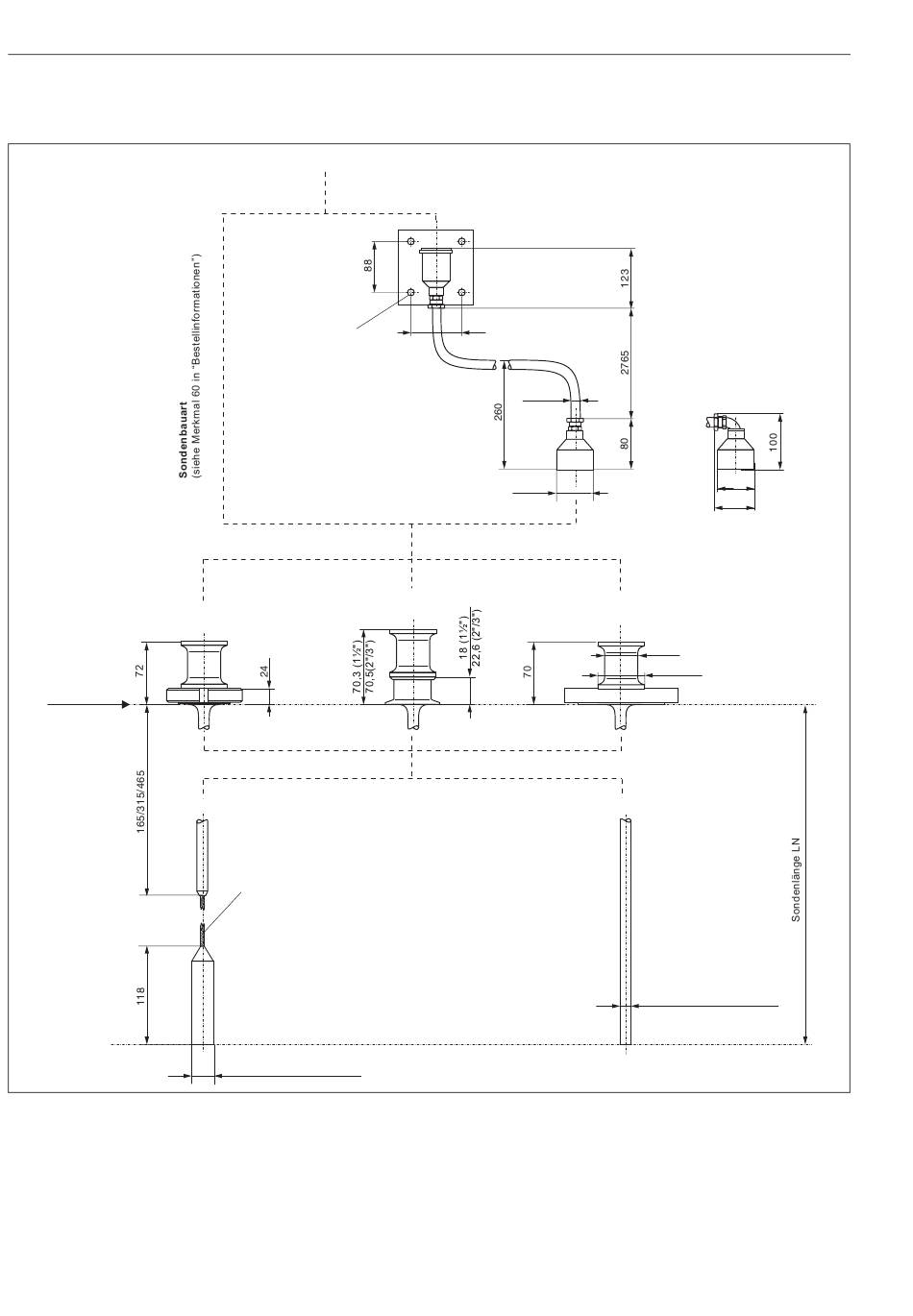

Montage
Milchrohr
Referenzpunkt
der Messung
Seilsonde
12
Prozessanschluss, Sondentyp
Gehäuse F12 / T12 / F23
4 x Ø 8,5
DN 50
Seil:
Ø 4 mm
Ø 22 (incl. Isolierung)
Levelflex M FMP41C FOUNDATION Fieldbus
Variante "3" / "4":
abgesetzte Elektronik
Einführung oben
88
Ø 21,3
Ø 76
1 ½"/2"/3"
Clamp
Variante "4":
abgesetzte Elektronik
Einführung seitlich
Ø 76
Ø 81
Flansch DN 40...200
oder Äquivalent
Ø 42
Ø 60
Stabsonde
Ø 16 (incl. Isolation)
L00-FMP41xxx-06-00-00-de-001
