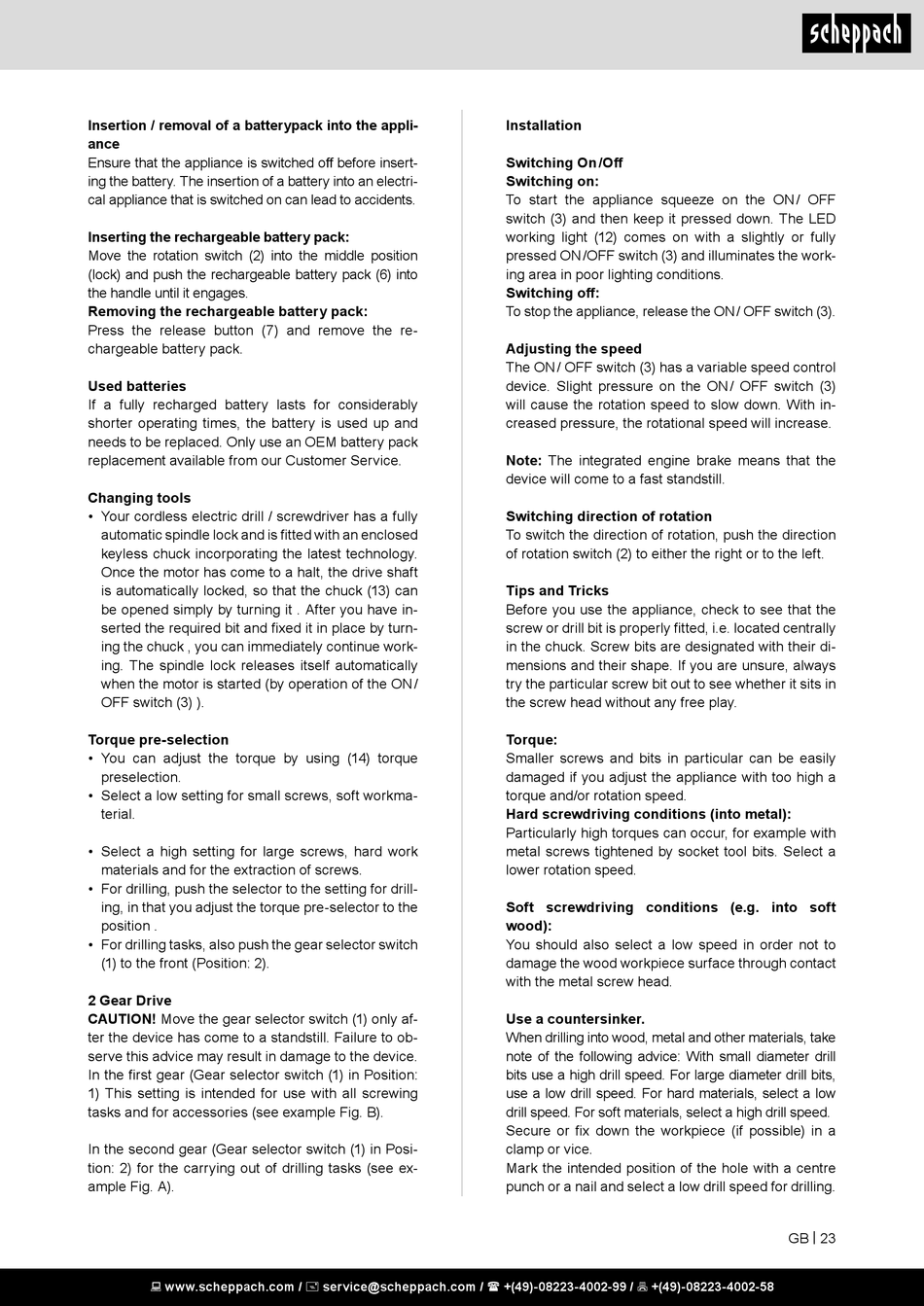

Scheppach CID27-12Li Original Bedienungsanleitung Seite 23

Insertion / removal of a batterypack into the appli-
ance
Ensure that the appliance is switched off before insert-
ing the battery. The insertion of a battery into an electri-
cal appliance that is switched on can lead to accidents.
Inserting the rechargeable battery pack:
Move the rotation switch (2) into the middle position
(lock) and push the rechargeable battery pack (6) into
the handle until it engages.
Removing the rechargeable battery pack:
Press the release button (7) and remove the re-
chargeable battery pack.
Used batteries
If a fully recharged battery lasts for considerably
shorter operating times, the battery is used up and
needs to be replaced. Only use an OEM battery pack
replacement available from our Customer Service.
Changing tools
• Your cordless electric drill / screwdriver has a fully
automatic spindle lock and is fitted with an enclosed
keyless chuck incorporating the latest technology.
Once the motor has come to a halt, the drive shaft
is automatically locked, so that the chuck (13) can
be opened simply by turning it . After you have in-
serted the required bit and fixed it in place by turn-
ing the chuck , you can immediately continue work-
ing. The spindle lock releases itself automatically
when the motor is started (by operation of the ON /
OFF switch (3) ).
Torque pre-selection
• You can adjust the torque by using (14) torque
preselection.
• Select a low setting for small screws, soft workma-
terial.
• Select a high setting for large screws, hard work
materials and for the extraction of screws.
• For drilling, push the selector to the setting for drill-
ing, in that you adjust the torque pre-selector to the
position .
• For drilling tasks, also push the gear selector switch
(1) to the front (Position: 2).
2 Gear Drive
CAUTION! Move the gear selector switch (1) only af-
ter the device has come to a standstill. Failure to ob-
serve this advice may result in damage to the device.
In the first gear (Gear selector switch (1) in Position:
1) This setting is intended for use with all screwing
tasks and for accessories (see example Fig. B).
In the second gear (Gear selector switch (1) in Posi-
tion: 2) for the carrying out of drilling tasks (see ex-
ample Fig. A).
 www.scheppach.com /  service@scheppach.com /  +(49)-08223-4002-99 /  +(49)-08223-4002-58
Installation
Switching On /Off
Switching on:
To start the appliance squeeze on the ON / OFF
switch (3) and then keep it pressed down. The LED
working light (12) comes on with a slightly or fully
pressed ON /OFF switch (3) and illuminates the work-
ing area in poor lighting conditions.
Switching off:
To stop the appliance, release the ON / OFF switch (3).
Adjusting the speed
The ON / OFF switch (3) has a variable speed control
device. Slight pressure on the ON / OFF switch (3)
will cause the rotation speed to slow down. With in-
creased pressure, the rotational speed will increase.
Note: The integrated engine brake means that the
device will come to a fast standstill.
Switching direction of rotation
To switch the direction of rotation, push the direction
of rotation switch (2) to either the right or to the left.
Tips and Tricks
Before you use the appliance, check to see that the
screw or drill bit is properly fitted, i.e. located centrally
in the chuck. Screw bits are designated with their di-
mensions and their shape. If you are unsure, always
try the particular screw bit out to see whether it sits in
the screw head without any free play.
Torque:
Smaller screws and bits in particular can be easily
damaged if you adjust the appliance with too high a
torque and/or rotation speed.
Hard screwdriving conditions (into metal):
Particularly high torques can occur, for example with
metal screws tightened by socket tool bits. Select a
lower rotation speed.
Soft screwdriving conditions (e.g. into soft
wood):
You should also select a low speed in order not to
damage the wood workpiece surface through contact
with the metal screw head.
Use a countersinker.
When drilling into wood, metal and other materials, take
note of the following advice: With small diameter drill
bits use a high drill speed. For large diameter drill bits,
use a low drill speed. For hard materials, select a low
drill speed. For soft materials, select a high drill speed.
Secure or fix down the workpiece (if possible) in a
clamp or vice.
Mark the intended position of the hole with a centre
punch or a nail and select a low drill speed for drilling.
