Refer to Specifications
5. If the cable has a shield wire, connect the shield wire to the ground stud. Use the ring terminal
supplied with the analyzer. Refer to
6. Install the electrical access cover.

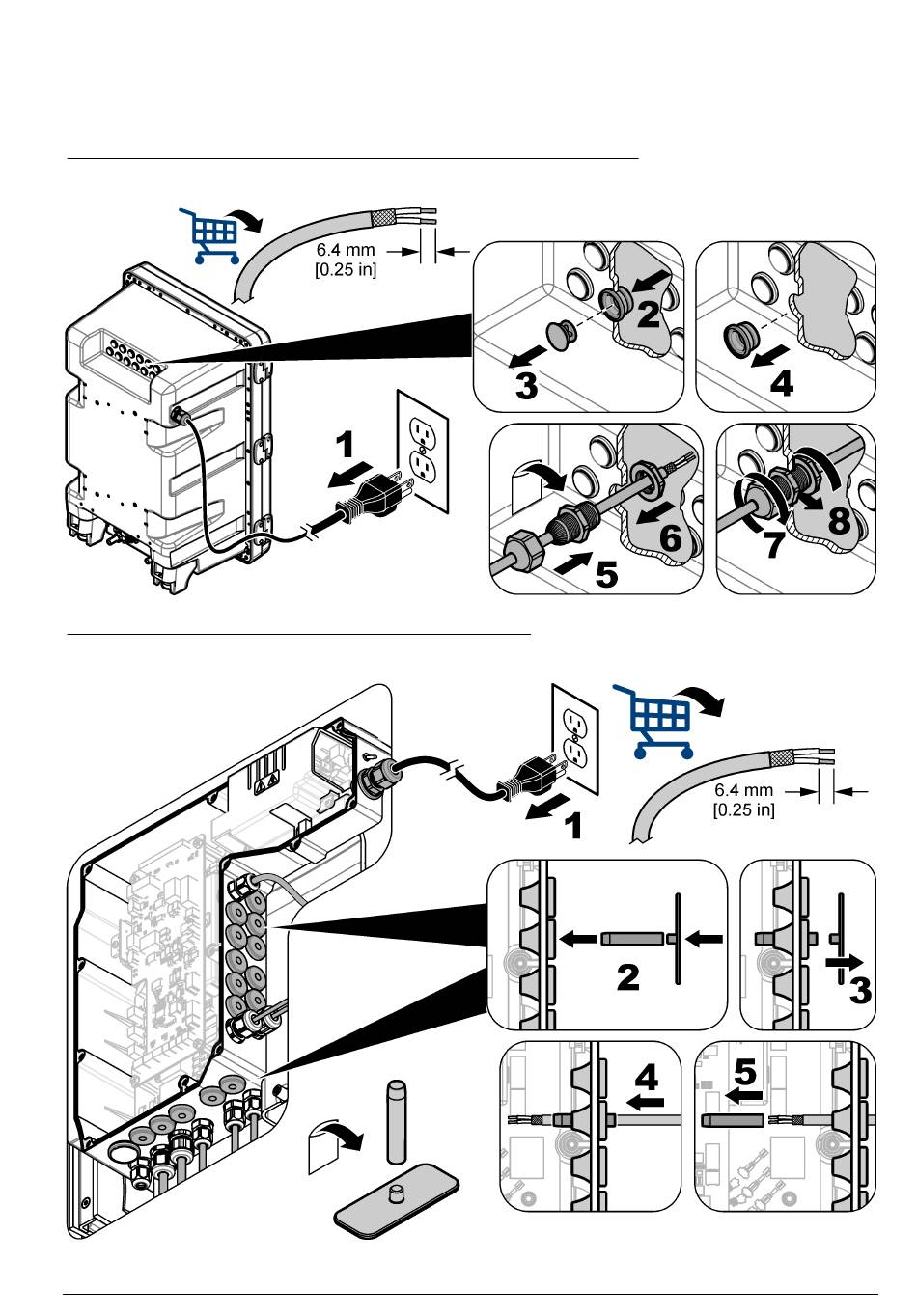

Figure 9 Remove an external plug and install a strain-relief fitting
Figure 10 Put the cable through an internal port plug
on page 3 for wiring requirements.
Figure 12.
English 25
