RADIO EDGE DEVICE (RED) is an EN 13849-1:2015 Standard-compliant
device and it's a PL "c" Category 2 safety system if connected to a RIB
control board equipped with AUTOTEST.
RED allows to build a safety system made with one or more safety strips
fixed to the moving leaf/shutter without having to use cable-reel.
It consists in a radio communication based on a 868.3MHz RIB protocol.
The safety strips connections, their working status and the RED battery charge
levels are checked constantly.
The RED can manage Normally Open (NO) or Normally Closed (NC) contact of
safety strip, therefore select it with jumper JP2.
Each RED has its own internal identification code that distinguishes it from the
others.

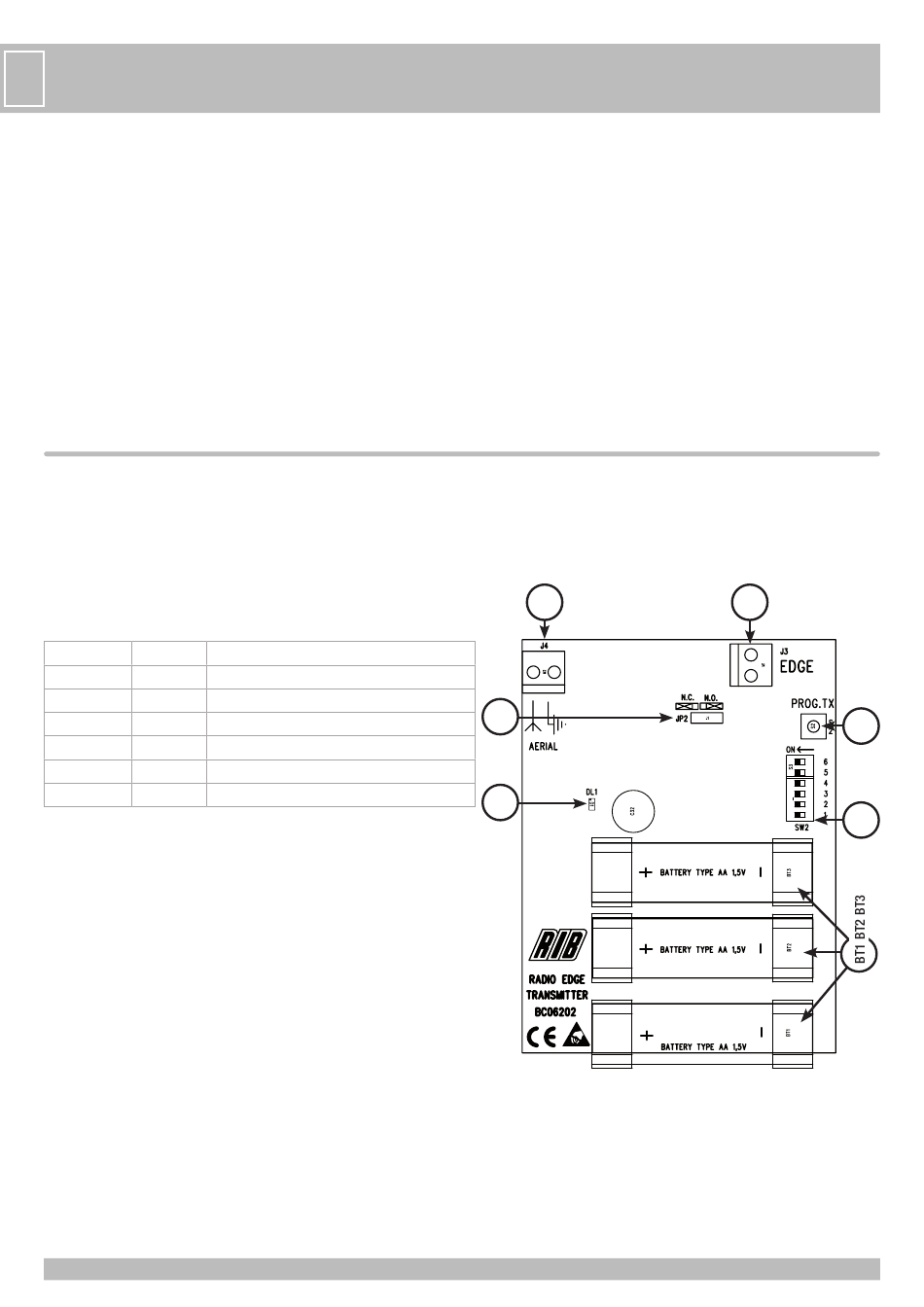

POINT A

- ELECTRICAL CONNECTIONS

J3
EDGE
J4 AERIAL
JP2 JUMPER
DL1 (red)
SW2
S2 PROG.TX
BT1-BT2-BT3
Input from the safety strip contact
868MHz Aerial connection (optional)
Safety strip contact type selection (NO or NC)
Radio transmission in progress
Identification dip-switches
Programming button
3x1,5V AA-type batteries (optional)
LEGISLATION ANS REGULATION ON AUTOMATIC GATES AND DOORS
The technician must ensure that RED is managed as explained in the EN12453
Standard at section 5.1.2 by a control board able to run a self test before the gate/
door shuts (AUTOTEST).
Use RIB actuators, RIB electronic boards equipped with AUTOTEST feature and
RIB safeties, in order to perform installation in compliance with the Legislation
and Regulation in force.
Once installation is complete, the operator must ensure the machine is EN13241-
1-compliant.
RIB shall not be held liable for any damages caused by misuse or wrongful or
unreasonable use of the product.
J4
JP2
DL1
14
J3
S2
SW2
