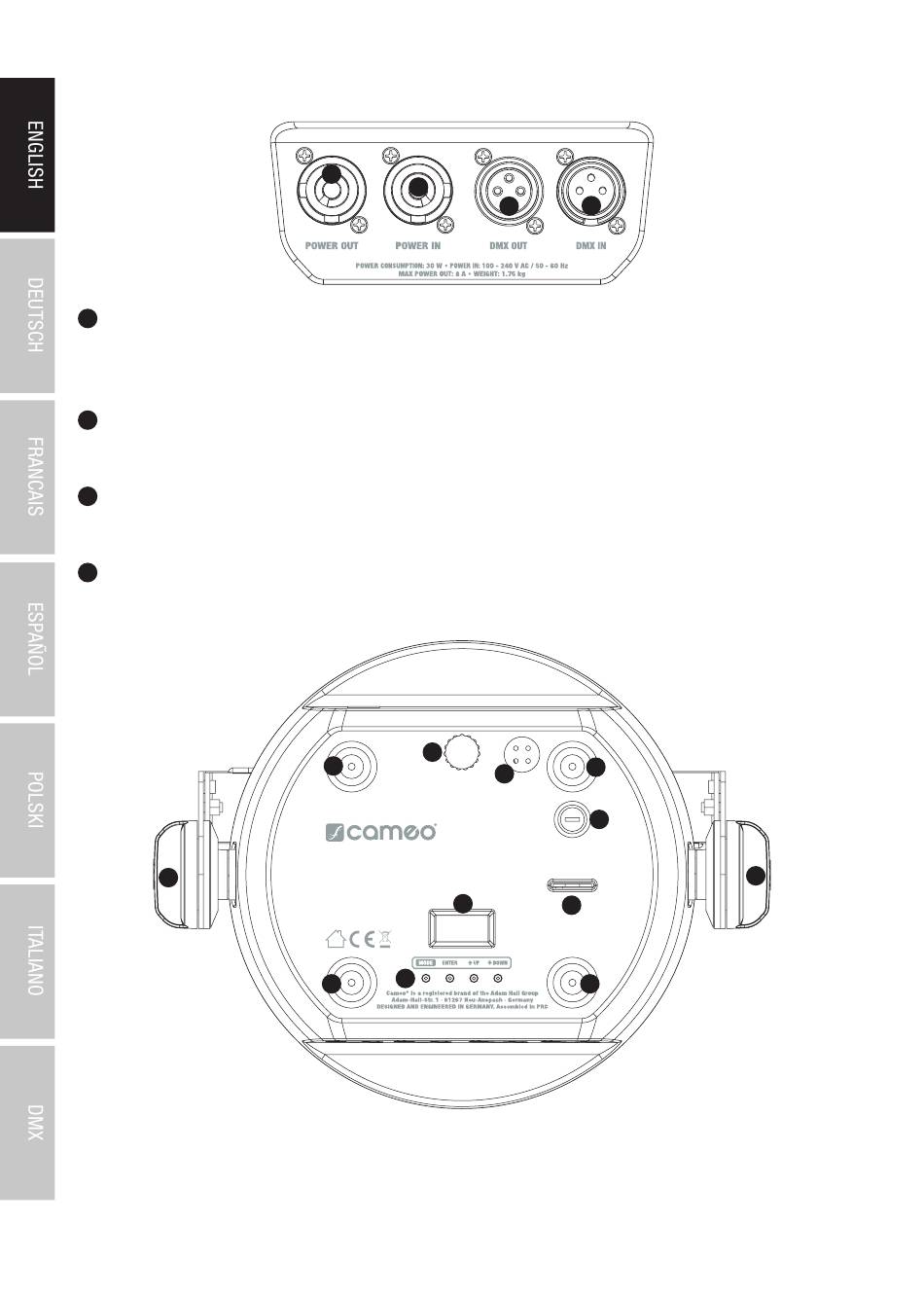

CONNECTIONS, CONTROL, AND DISPLAY ELEMENTS

POWER IN
1
Blue Power Twist power input socket. Operating voltage: 100–240 V AC / 50–60 Hz. A suitable
power cable with Power Twist plug is included in the delivery.
POWER OUT
2
White Power Twist power output socket to supply power to additional Cameo spotlights (max. 8 A).
DMX IN
3
Male 3-pin XLR connector to connect a DMX control device (e.g., DMX console).
DMX OUT
4
Female 3-pin XLR connector to transmit the DMX control signal.
12
8
2
1
9
10
ROOT PAR TW
6
7
10
3
4
10
8
MIC
5
FUSE: F3A / 250 V
