INTRODUCTION

7 × 4 W Tunable White Spotlight
CLROOTPARTW
CONTROL FUNCTIONS
• 2-channel, 3-channel, 4-channel 1, 4-channel 2, and 8-channel DMX control
• Master/slave mode
• Stand-alone functions
• Controllable via IR remote control (remote control optionally available)
• W-DMX connection possible with optional iDMX Stick
PROPERTIES
• 3-pin DMX connectors
• Power Twist power connector, IN and OUT
• OLED display
• Configurable PWM frequency
• Connection for iDMX stick
• Convection cooling
• Tilt screw
• Twin mounting bracket included
• Operating voltage: 100–240 V AC
• Power consumption: 30 W

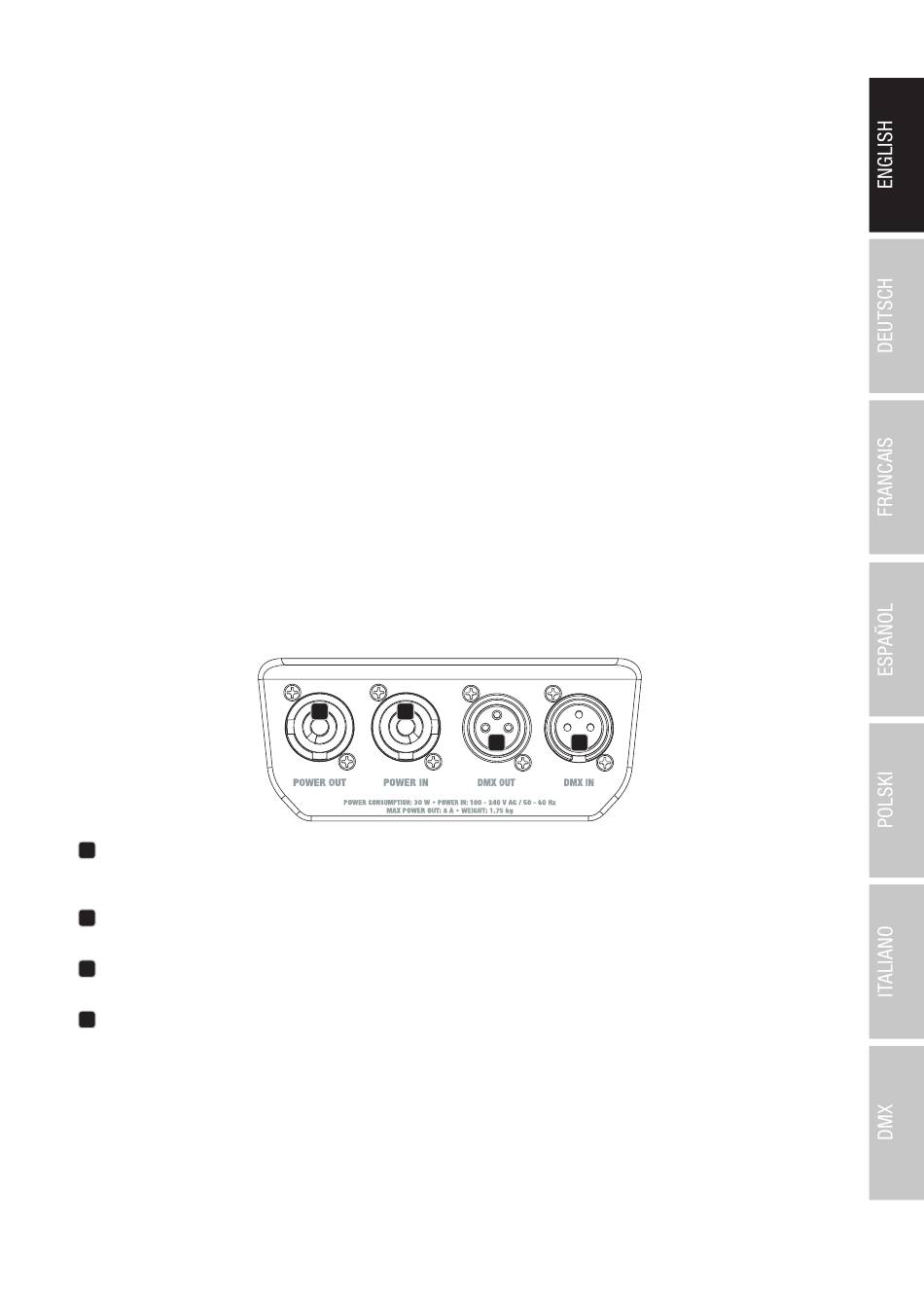

CONNECTIONS, CONTROL, AND DISPLAY ELEMENTS

POWER IN
1
Blue Power Twist power input socket. Operating voltage: 100–240 V AC / 50–60 Hz. A suitable power cable with Power Twist plug is
included in the delivery.
2 POWER OUT
White Power Twist power output socket to supply power to additional Cameo spotlights (max. 8 A).
3 DMX IN
Male 3-pin XLR connector to connect a DMX control device (e.g., DMX console).
DMX OUT
4
Female 3-pin XLR connector to transmit the DMX control signal.
2 1
4 3
