9.

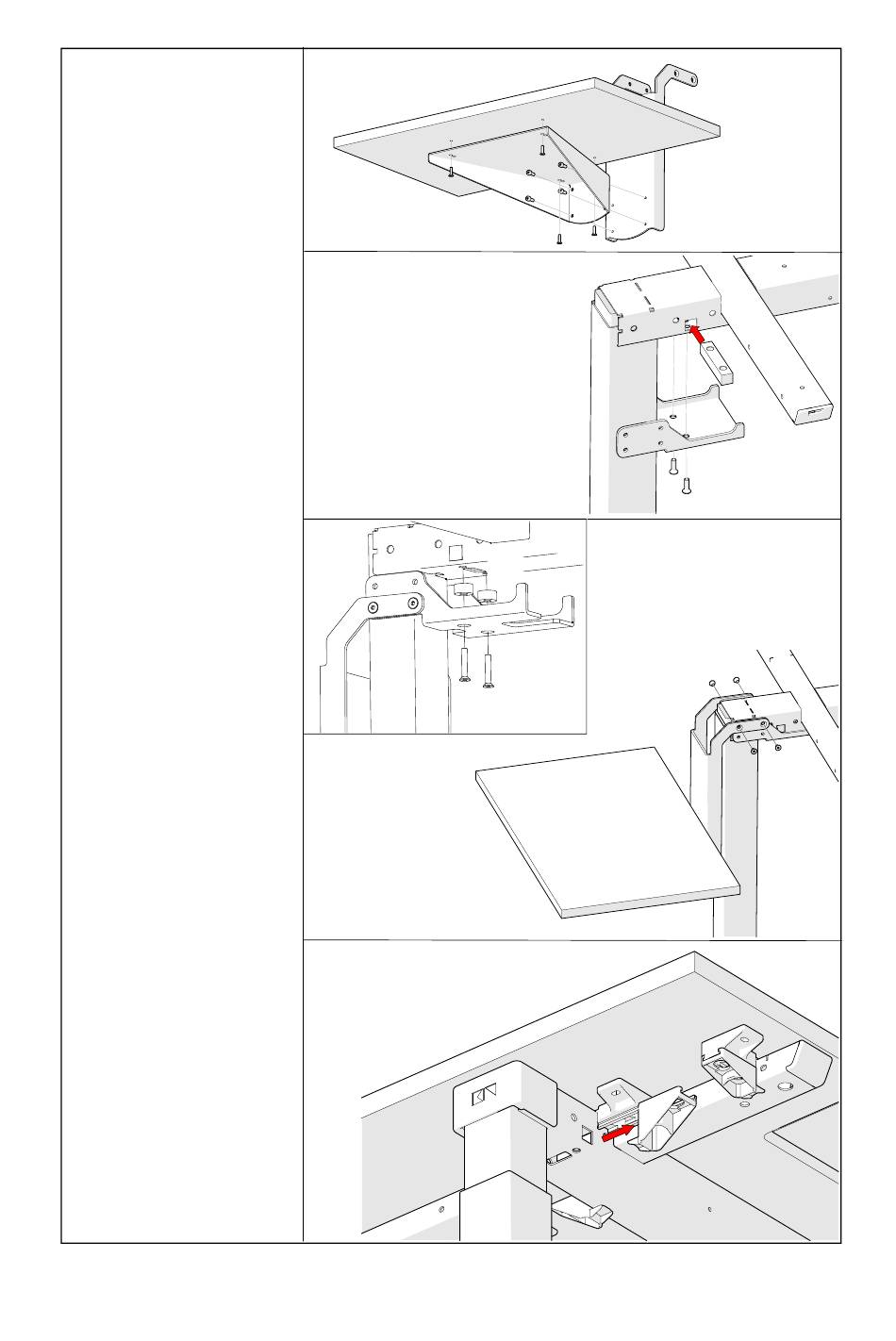

Fitting the printer
tray
Fit the console (a) to the re-
taining plate (b) using cy-
(c)
(a)
linder head screws M5x8
(b)
(SW4). Attach the printer
shelf (c) to the console, using
screws ø6,3x14.
Insert square shaft (d) into
the desk top frame.
Screw connecting clamp (e)
to the square shaft from
underneath through the
frame, using counter-sunk
screws M8x20 (SW5).
Desk with crank:
(d)
Insert square shaft, place
spacers (f) between frame
and connecting clamp,
tighten counter-sunk screws
(e)
M8x35 (SW5) from under-
neath (g).
Attach the printer tray retai-
ning plate to the connecting
(f)
clamp (h) with counter-sunk
screws M6x8 (SW4).
(g)
(h)
Note:
Desks with desk flap or desks
without sliding top:
View from rear
Before assembly, remove lo-
wer part (i) of the fitting.
(i)
24
