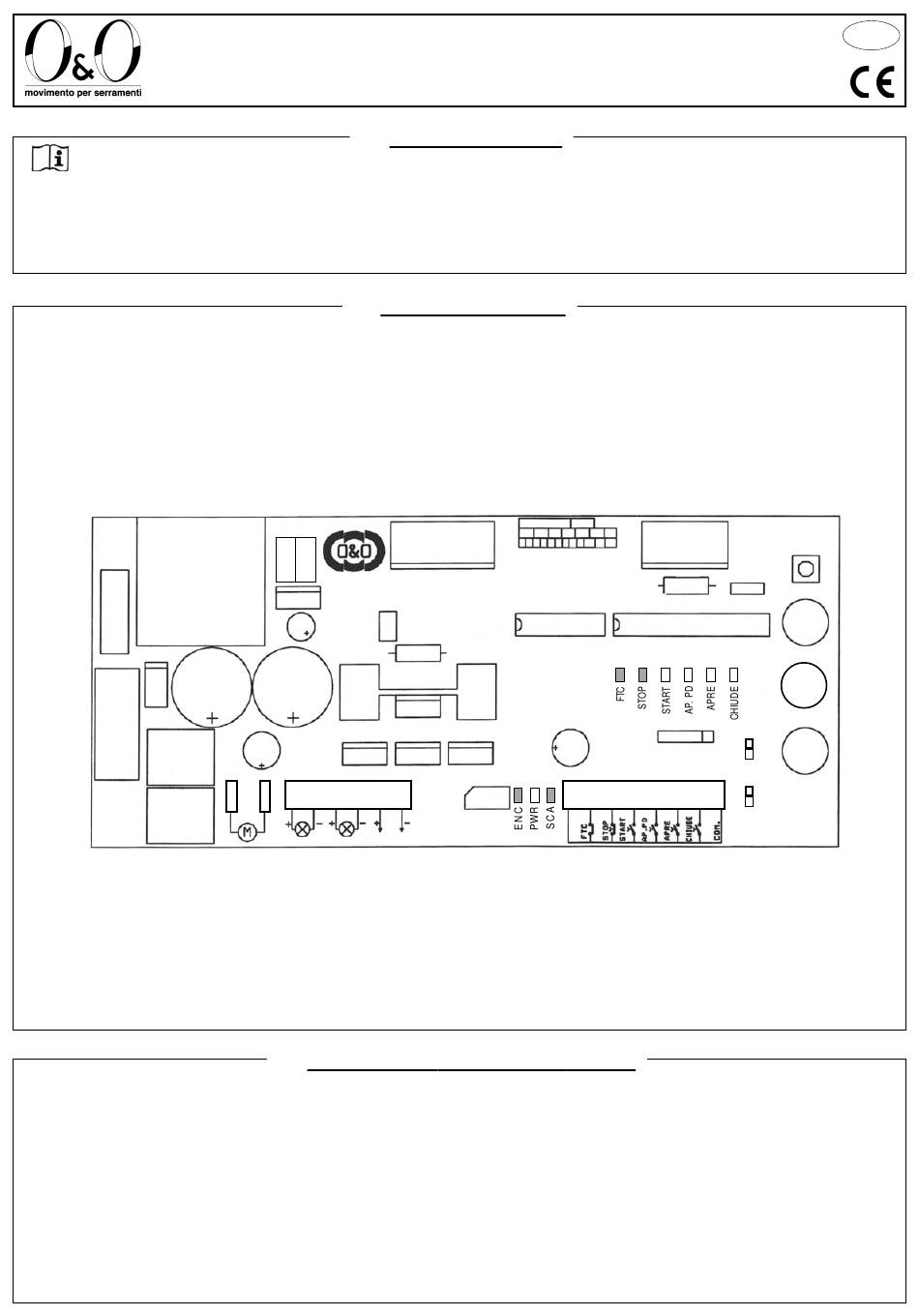

CONTROL UNIT MOD.
The LOG-BT control unit is designed to control the new 24 Vdc automatic barrier featuring an encoder for learning travel and
recognising obstacles.
Thanks to the considerable amount of logic available even very particular operating conditions on sytems can be met.
Compliance with the requirements of the European Directives (89/336EEC,73/23EEC and their subsequent amendments) proves
the high quality and safety levels reached.
- Microprocessor logic
- Green LEDS displaying the status of the NO control inputs and red LEDS for the status of the NC safety ones
- Pull out terminal blocks
- Speed adjustable from 3.5 to 8 Sec.
- Approaching at a slower speed that can be adjusted in opening and closing
- Output for a flashing light and gate open indicator or for a red and green traffic light
- Set for the plugging-in of O&O card radio receivers
- Self-test of the mos-fet torque adjustment circuit
F1
F2
M1: Power terminal block
M2: Controls and safety devices terminal block
M3: Eencoder connector
M4: Transformer terminal
J4: Connector for radio receiver
J5: Connector for battery charger
JRX1: 1st radio channel selection jumper
JRX2: 2nd radio channel selection jumper
ELECTRONIC

1. INTRODUCTION

2. MAIN FEATURES

TRASF.
M 4
M1
SCA OUT 24V
LAMP

3. TECHNICAL SPECIFICATIONS

- Power:
- Motor output:
- Flashing light output
- SCA output:
- Traffic light output:
- 24V output:
- Operating temperature:
- Housing dimensions (WxHxD):
- Protection level:
LOG-BT
CHARGE BAT.
J5
S1
M3
S1: 8-way dip switch
F1: 10A AL blade power fuse
F2: 2A 5x20 logic fuse
ST: Start and programming key
P1: Torque trimmer
P2: Speed trimmer
P3: Slowing down trimmer
μP:
Microprocessor with flash memory
230Vac ±10% 50/60 Hz 100W
24Vdc PWM
24Vdc 15W
24Vdc 3 W
24Vdc 15+15W
24Vdc 6W
-15 ÷ +60°C
200x275x130mm
IP54
