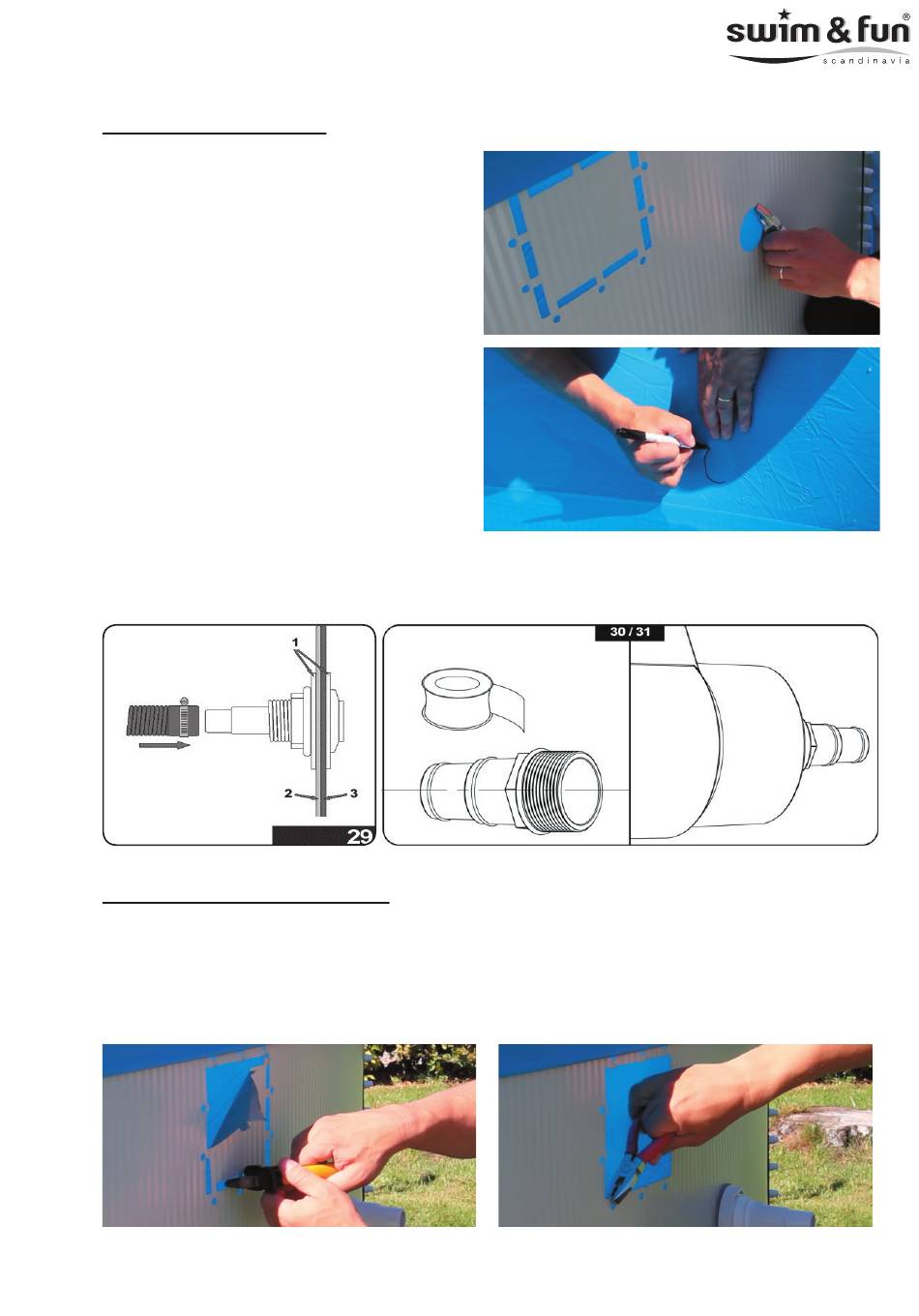

Perforations in pool wall
There are perforations in the pool wall for
making holes for the skimmer and return
tube. The holes can be cut out and all une-
ven surfaces are then removed with a file.
Lastly, the edges should be treated with an
anti-corrosion agent. If this is not done, the
edge may rust.
Draw/mark the round hole in the liner and
then cut an X in the circle with a sharp knife.
Do not cut beyond the marked hole. Now fit
the return tube and a gasket from the inside
of the pool and out through the pool wall. At-
tach the return tube to the pool wall by firmly
tightening the plastic nut. Do not overly tigh-
ten the nut.
Screw the Inlet connector kit to the pool wall.
Make sure the Teflon tape is coated onto the
threading of the inlet connector fist. (See dia-
gram 30). Screw the remaining parts of the inlet connector kit into position.
(See diagram 29, A: Pool outside, B: Pool inside, diagramm 30, A: Teflon Tape)
A
B A
13.3 Assembling the Skimmer
To fit the skimmer, repeat the procedure to mark the skimmer hole (see below). The skimmer set
may contain either 2 x single gaskets or one double gasket. Fit the double gasket around the skim-
mer perimeter and the hole in the lining so that the gasket seals both the pool wall and the liner. Fit
single gaskets one on each side, i.e. one on the outside of the liner and one on the outside of the
pool wall.
