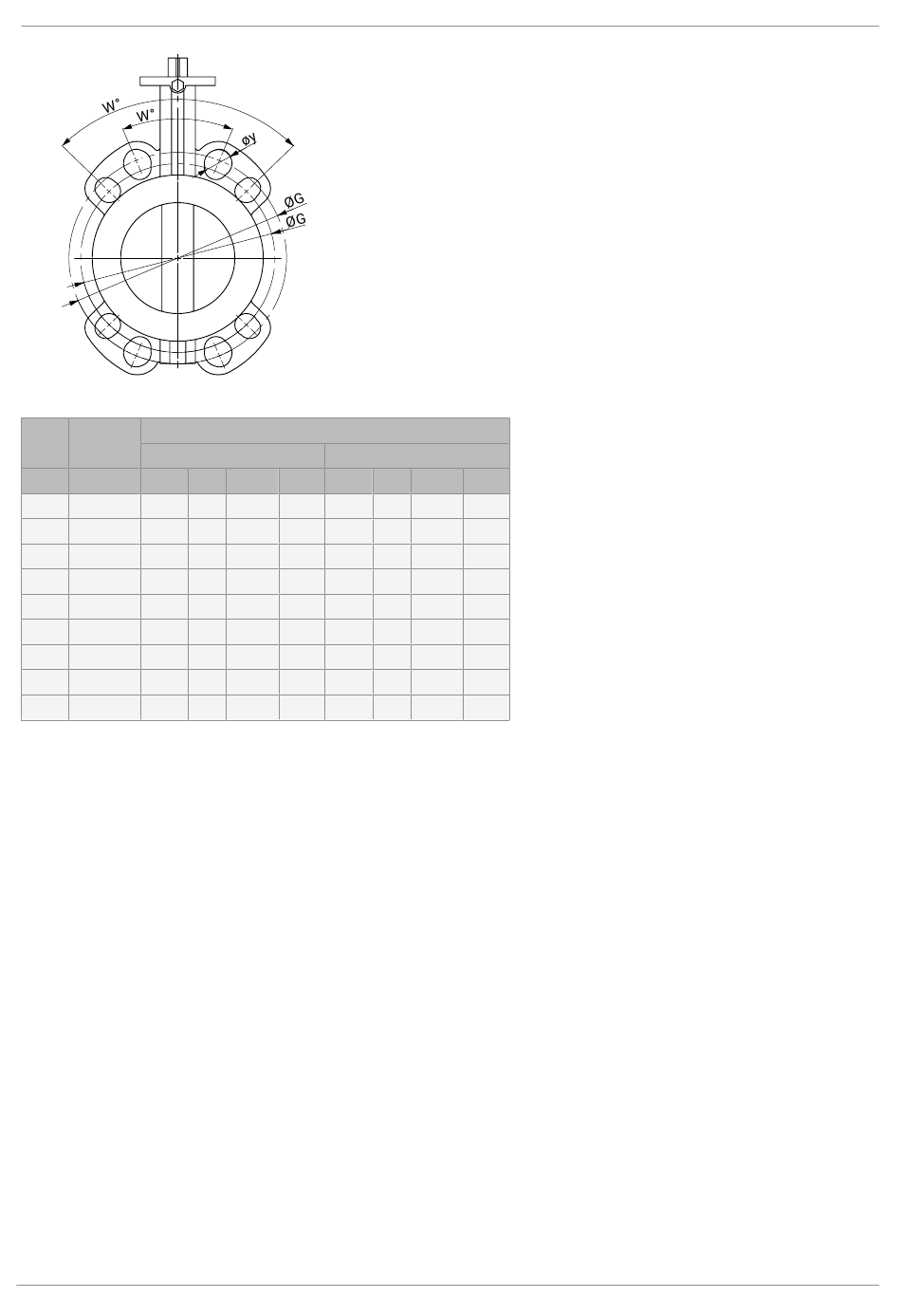

Anschluss JIS K10, K16
DN INCH
JIS-K10 (Code G)
DIN ASME w°
50 2" 90
65 2½" 90
80 3" 45
100 4" 45
125 5" 45
150 6" 45
200 8" 30
250 10" 30
300 12" 22,5
Maße in mm
n = Anzahl der Schrauben
www.gemu-group.com
Anschluss (Code)
JIS-K16 (Code J)
n ØG y w°
4 120,0 19,0 45
4 140,0 19,0 45
8 150,0 19,0 45
8 175,0 19,0 45
8 210,0 23,0 45
8 240,0 23,0 30
12 290,0 23,0 30
12 355,0 25,0 30
16 400,0 25,0 22,5
n ØG y
8 120,0 19,0
8 140,0 19,0
8 160,0 23,0
8 185,0 23,0
8 225,0 25,0
12 260,0 25,0
12 305,0 25,0
12 380,0 27,0
16 430,0 27,0
