100 - 250 V AC (code 04)

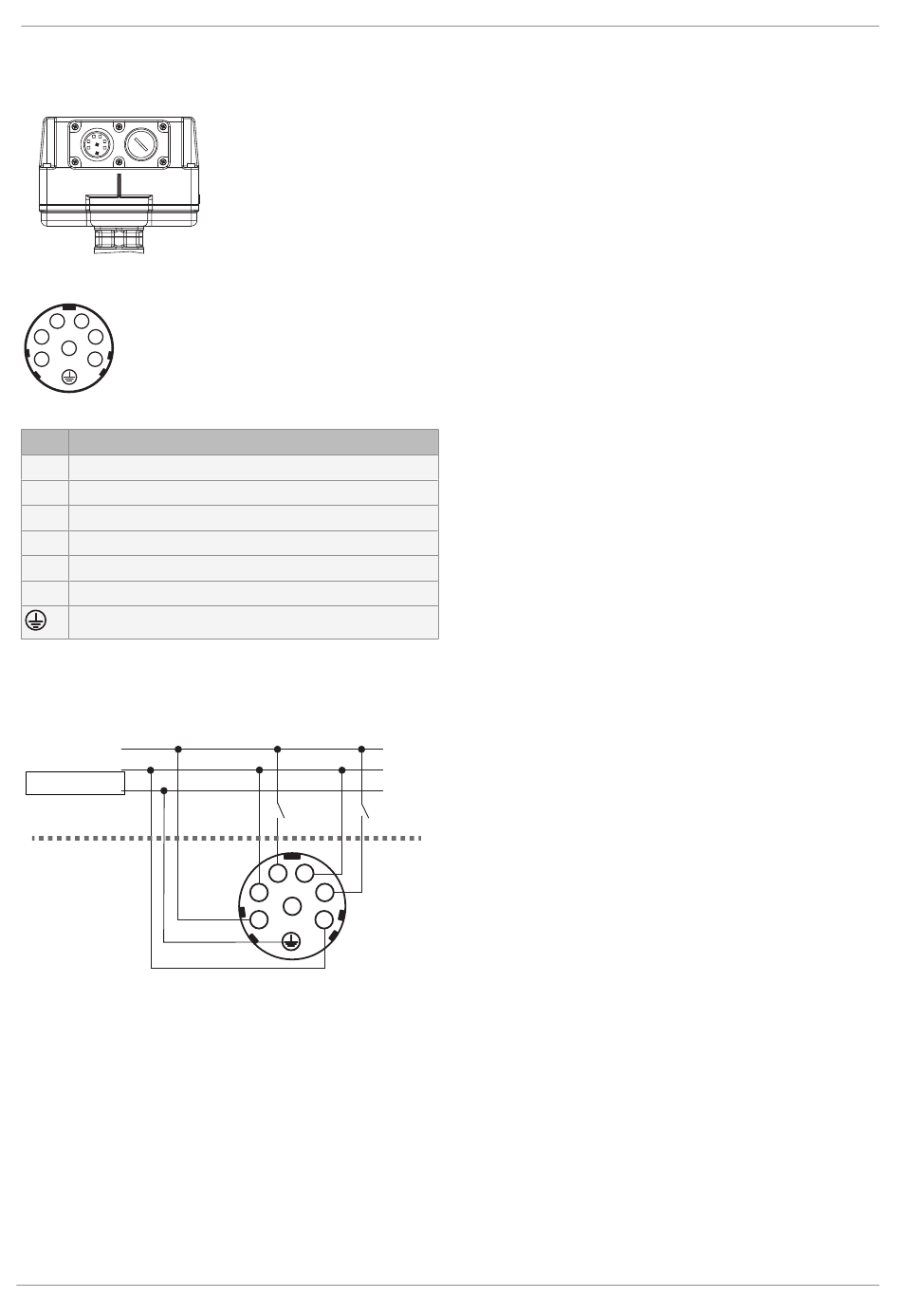

Position of the connectors
X1
Electrical connection
5 4
6 3
1 2
Plug assignment X1
Pin
1 L1, supply voltage
2 N, supply voltage
3 L1, direction of travel CLOSED
4 N, direction of travel CLOSED
5 L1, direction of travel OPEN
6 N, direction of travel OPEN
PE, protective earth conductor
The potential must be assigned by the user.
Connection diagram
External wiring
www.gemu-group.com
Description
OPEN
CLOSED
5 4
6 3
1 2
L1
N
PE
105 / 136
12 GEMÜ 9428 electrical connection
GEMÜ R488 Victoria
