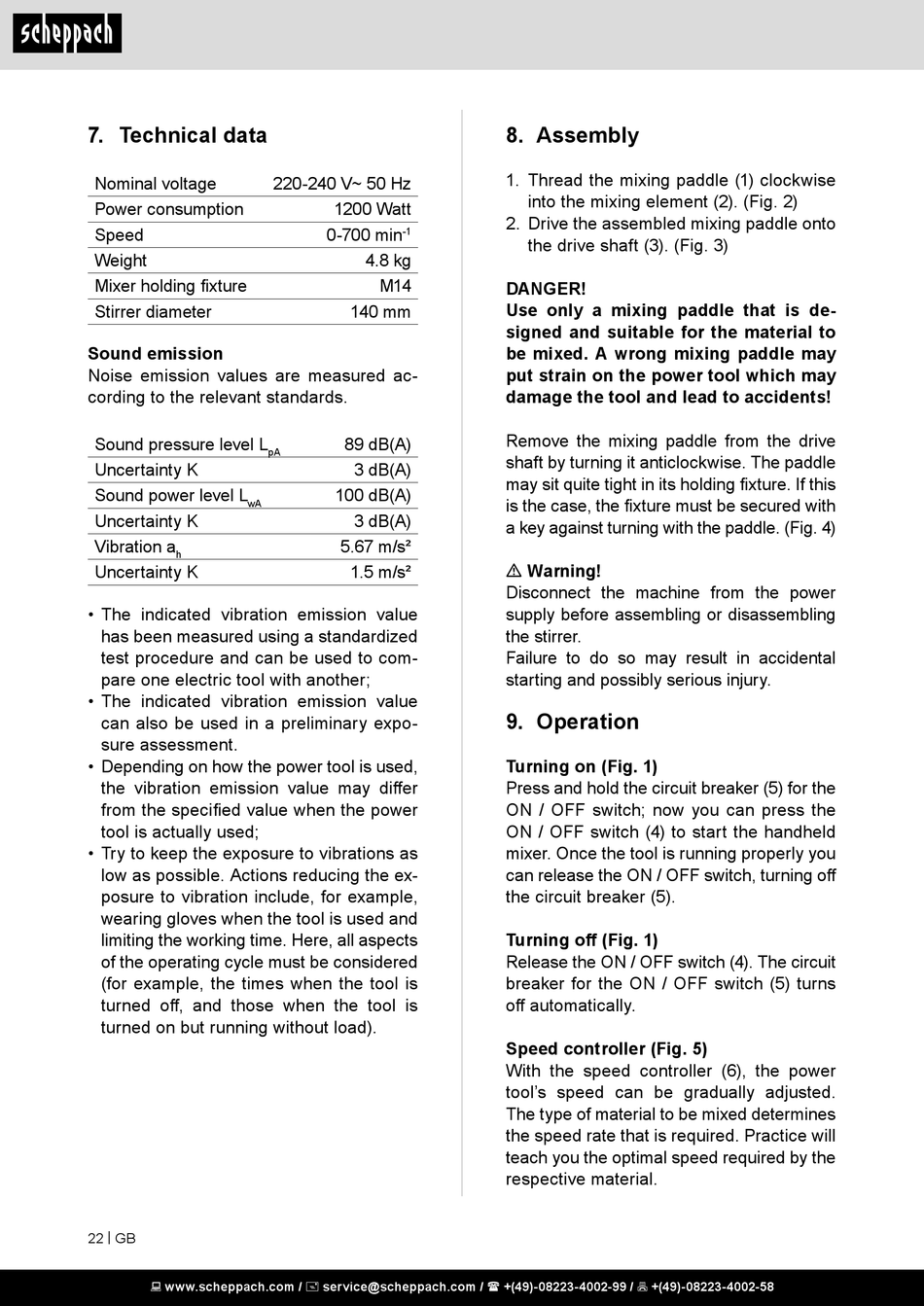

7. Technical data

Nominal voltage
Power consumption
Speed
Weight
Mixer holding fixture
Stirrer diameter
Sound emission
Noise emission values are measured ac-
cording to the relevant standards.
Sound pressure level L
Uncertainty K
Sound power level L
wA
Uncertainty K
Vibration a
h
Uncertainty K
• The indicated vibration emission value
has been measured using a standardized
test procedure and can be used to com-
pare one electric tool with another;
• The indicated vibration emission value
can also be used in a preliminary expo-
sure assessment.
• Depending on how the power tool is used,
the vibration emission value may differ
from the specified value when the power
tool is actually used;
• Try to keep the exposure to vibrations as
low as possible. Actions reducing the ex-
posure to vibration include, for example,
wearing gloves when the tool is used and
limiting the working time. Here, all aspects
of the operating cycle must be considered
(for example, the times when the tool is
turned off, and those when the tool is
turned on but running without load).
22 | GB
 www.scheppach.com /  service@scheppach.com /  +(49)-08223-4002-99 /  +(49)-08223-4002-58
220-240 V~ 50 Hz
1200 Watt
0-700 min
-1
4.8 kg
M14
140 mm
89 dB(A)
pA
3 dB(A)
100 dB(A)
3 dB(A)
5.67 m/s²
1.5 m/s²

8. Assembly

1. Thread the mixing paddle (1) clockwise
into the mixing element (2). (Fig. 2)
2. Drive the assembled mixing paddle onto
the drive shaft (3). (Fig. 3)
DANGER!
Use only a mixing paddle that is de-
signed and suitable for the material to
be mixed. A wrong mixing paddle may
put strain on the power tool which may
damage the tool and lead to accidents!
Remove the mixing paddle from the drive
shaft by turning it anticlockwise. The paddle
may sit quite tight in its holding fixture. If this
is the case, the fixture must be secured with
a key against turning with the paddle. (Fig. 4)
m Warning!
Disconnect the machine from the power
supply before assembling or disassembling
the stirrer.
Failure to do so may result in accidental
starting and possibly serious injury.

9. Operation

Turning on (Fig. 1)
Press and hold the circuit breaker (5) for the
ON / OFF switch; now you can press the
ON / OFF switch (4) to start the handheld
mixer. Once the tool is running properly you
can release the ON / OFF switch, turning off
the circuit breaker (5).
Turning off (Fig. 1)
Release the ON / OFF switch (4). The circuit
breaker for the ON / OFF switch (5) turns
off automatically.
Speed controller (Fig. 5)
With the speed controller (6), the power
tool's speed can be gradually adjusted.
The type of material to be mixed determines
the speed rate that is required. Practice will
teach you the optimal speed required by the
respective material.
