STEP 2
1. Install the support tube for the backrest (4) on
the Z swivel joints (11) of the main frame. Use
2 washers (23), 1 screw (21) and 1 nut (26)
for each hole.
2. Mount the headrest (14) at the upper end of
the back support tube (4) with 2 screws (22).

3. ASSEMBLY INSTRUCTIONS

Firmly tighten all component parts
and pre-assembled parts!
11
18
1
2
23
19
25

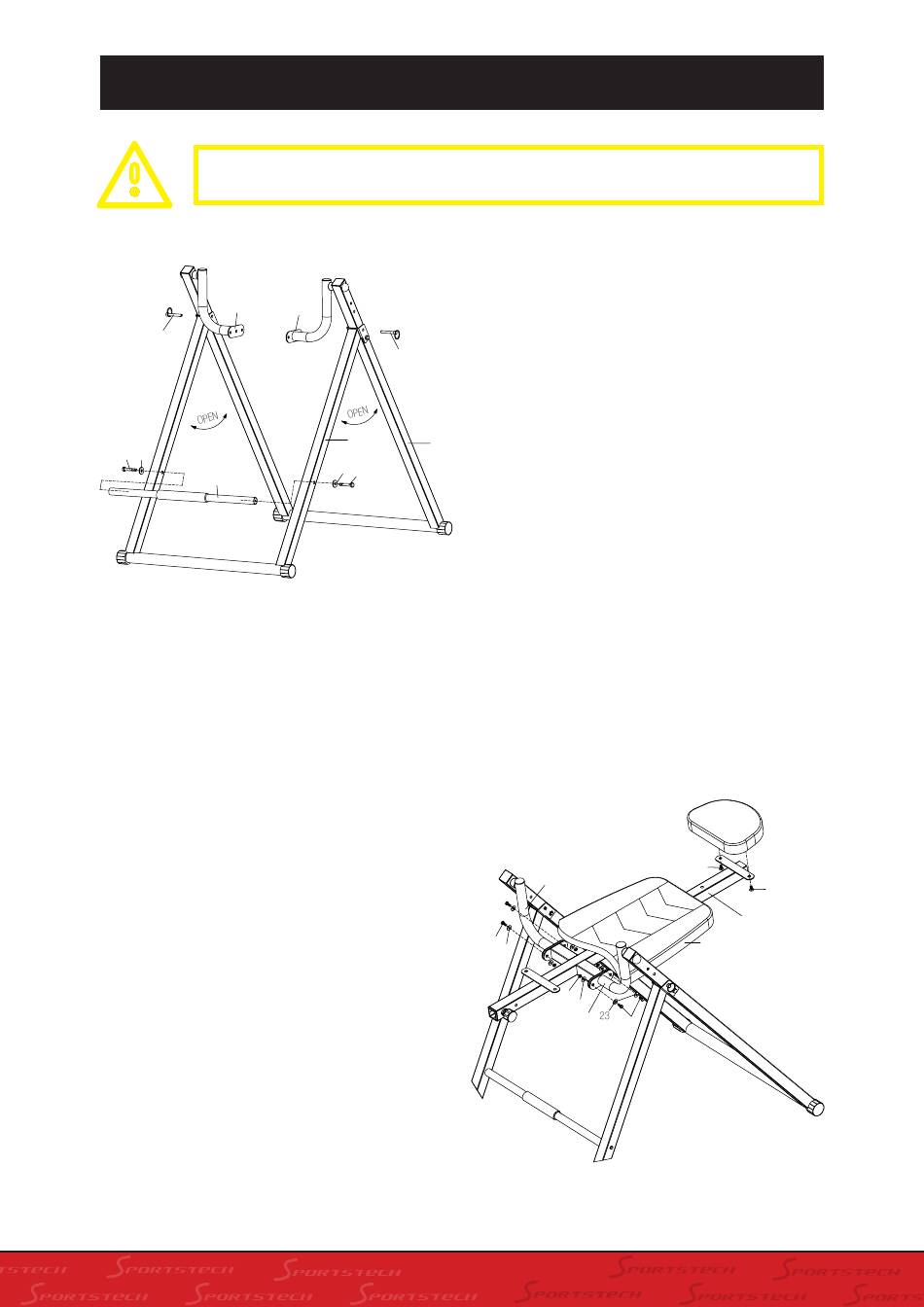

STEP 1
1. Open the front and rear main frame (1, 2) into
a stand and insert the locking pin (18).
2. Install the boundary bar (3) on the front main
frame (1) with the washers (23) and the
screws (19).
