Technical data

Materials:
Table dimensions:
Table height:
Max. load:
Weight:
Description
The Einhell table width extension is an accessory
item intended specially for the Einhell PKS 250 W/D
precision circular saw. It extends the width of the
support table for bulky boards and panels. The
maximum weight limit of 25 kg is not to be exceeded.
Assembly

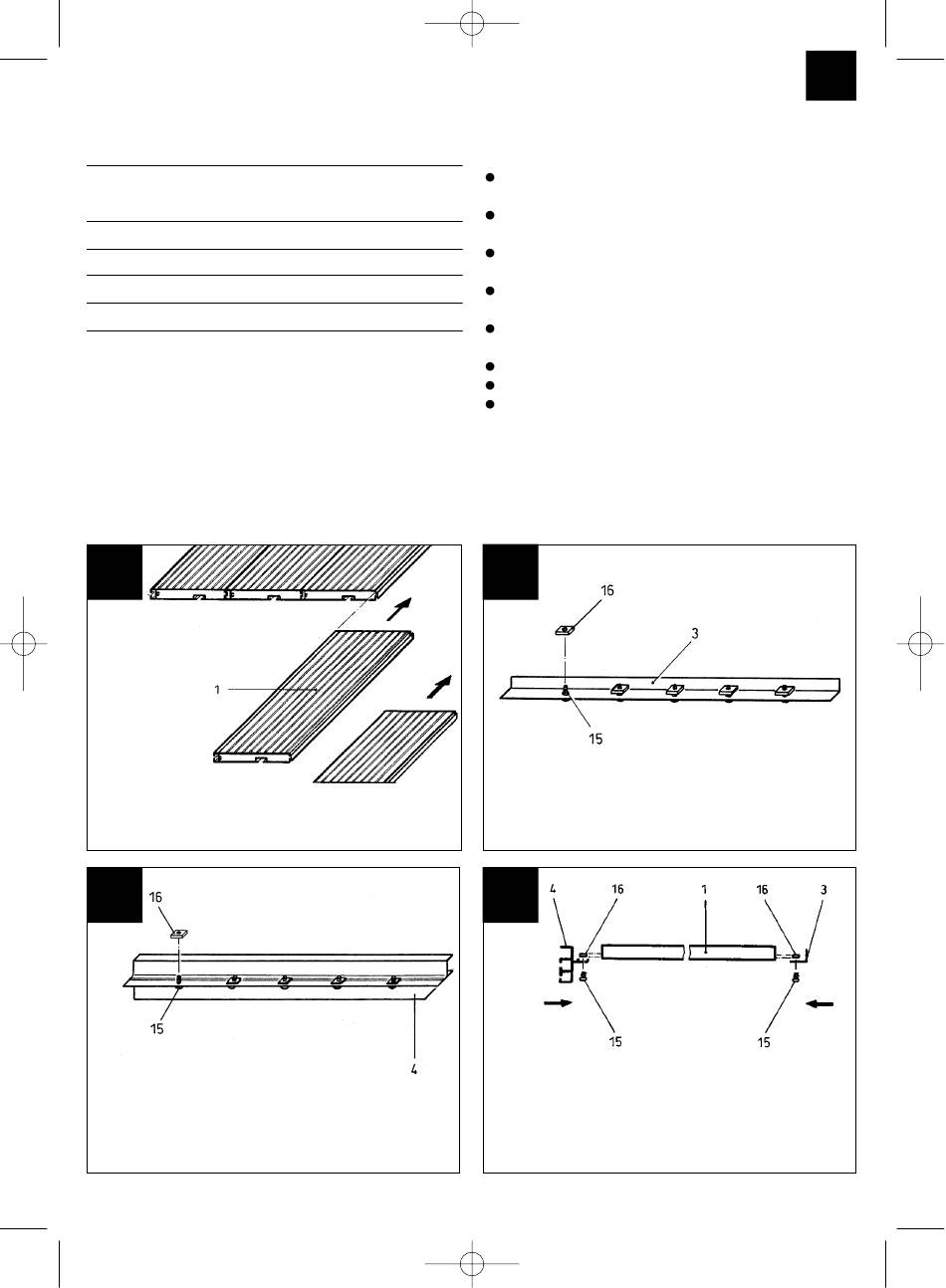

The numbers used in the drawings correspond to the serial numbers in the list of replacement parts.
1
Interlock the sections (1) as shown in the
drawing above.
3
Insert the M8x10 oval head screws (15) in the
support section (4) and then fit the square nuts
(16) by turning 2-3 full turns.
09.11.2001 11:44 Uhr
aluminium sections,
steel plate fasteners
900 mm x 720 mm
same as machine height
25 kg
16,5 kg
Seite 5

Safety regulations

Observe the safety regulations for your precision
circular saw
Follow the operating instructions for your precision
circular saw
Fit the Einhell table width extension only on
Einhell precision circular saws
Fit the table width extension in accordance with
the assembly instructions
Observe the maximum table load quoted in the
technical data
Keep your workplace clean at all times
Do not load the table with material unnecessarily
Never place heavy tools on the table
2
Insert the M8x10 oval head screws (15) in the
end plate (3) and then fit the square nuts (16) by
turning 2-3 full turns.
4
Then connect the table sections (1) to the end
plate (3) and the support section (4) as shown
above. Make sure that the table is at right
angles.
