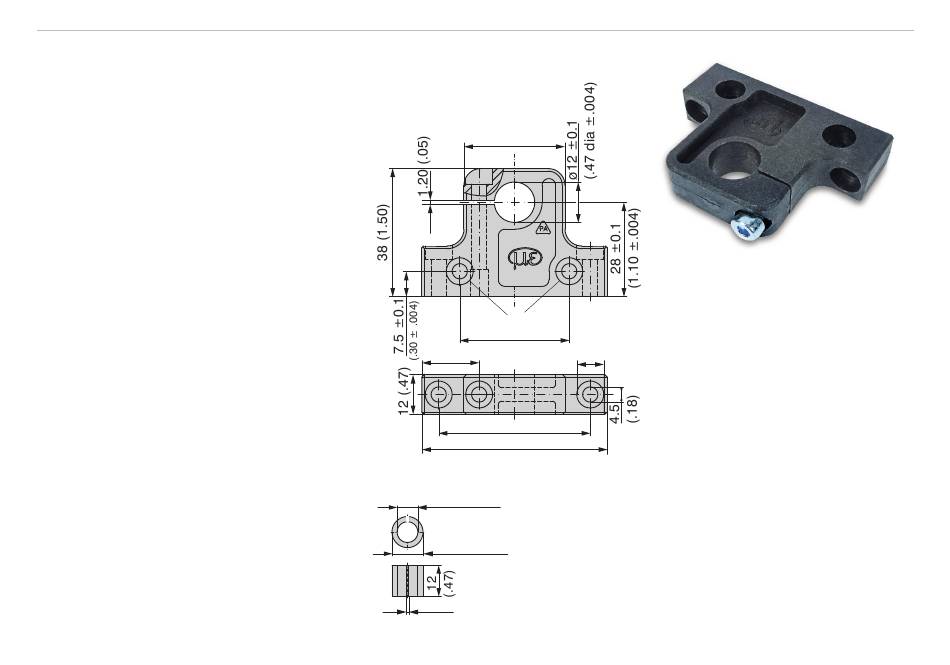

Mounting block
MBS12/8
Adapter ring
induSENSOR, Series LVDT, Gauge
30 (1.18)
Countersink ø8x4 deep
32.5 ±0.1
(1.28 ±.004)
17 (.67)
8 (.31)
45 ±0.1 (1.77 ±.004)
55 (2.17)
8+0.05
(.31+0.002)
12-0.05
(.47-0.002)
1 (.04)
