Installation and Assembly
Cable diameter approx. 3.1 mm
Cable length 3 m (open ends)

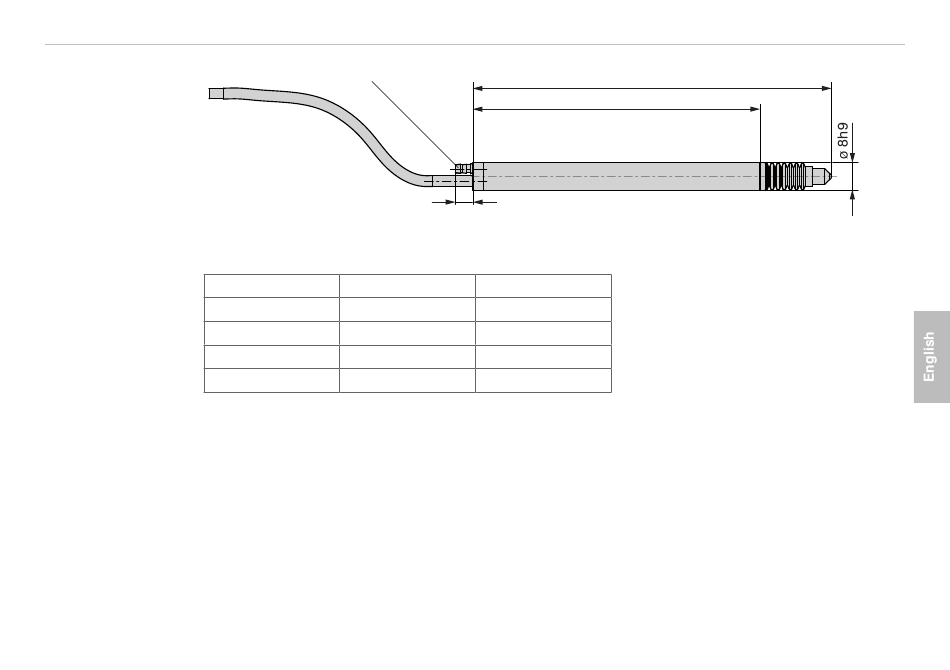

Abb. 11 Housing dimensions for gauge DTA-xG8-3-CA-V
Model
DTA-1G8-3-CA-V
DTA-3G8-3-CA-V
DTA-5G8-3-CA-V
DTA-10G8-3-CA-V
Dimensions in mm (inches), not to scale
induSENSOR, Series LVDT, Gauge
For pneumatic connection 3 x 0.5 mm
A (zero setting)
94.8 mm (3.73)
102.8 mm (4.05)
134 mm (5.28)
171 mm (6.73)
B
5
(0.20)
B
76.3 mm (3.00)
82.3 mm (3.24)
105.3 mm (4.15)
137.3 mm (5.41)
A
