Pin Assignment - MICRO-EPSILON induSENSOR DTA-1G8 Betriebsanleitung

Installation and Assembly
4.6
-

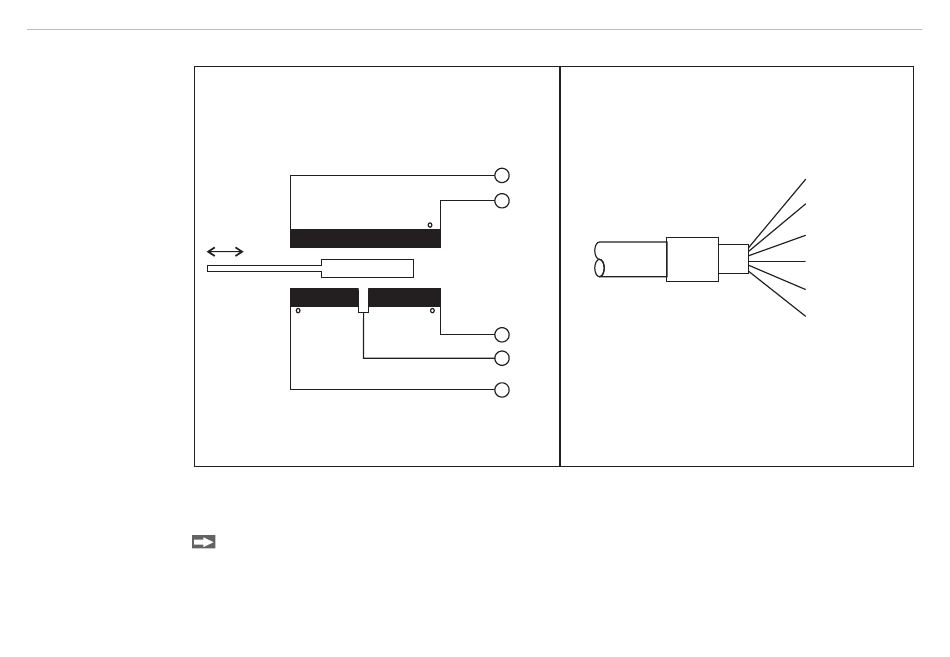

Fig. 5 Pin assignment for electrical connections
The integrated cable presents a strand cross-section of 5x 0.08 mm
induSENSOR, Series LVDT, Gauge

Pin Assignment

Excitation primary
+
Signal secondary
Use suitable ferrules to connect the sensor to the controller.
4
3
2
Type - CA
5
Integral cable, length 3 m
1
(AWG28).
2
1 white
2 black
3 blue
4 brown
5 gray
Shield
Housing
Page 34
