Installation and Assembly
4.5
Cable diameter approx. 3.1 mm
Cable length 3 m (open ends)

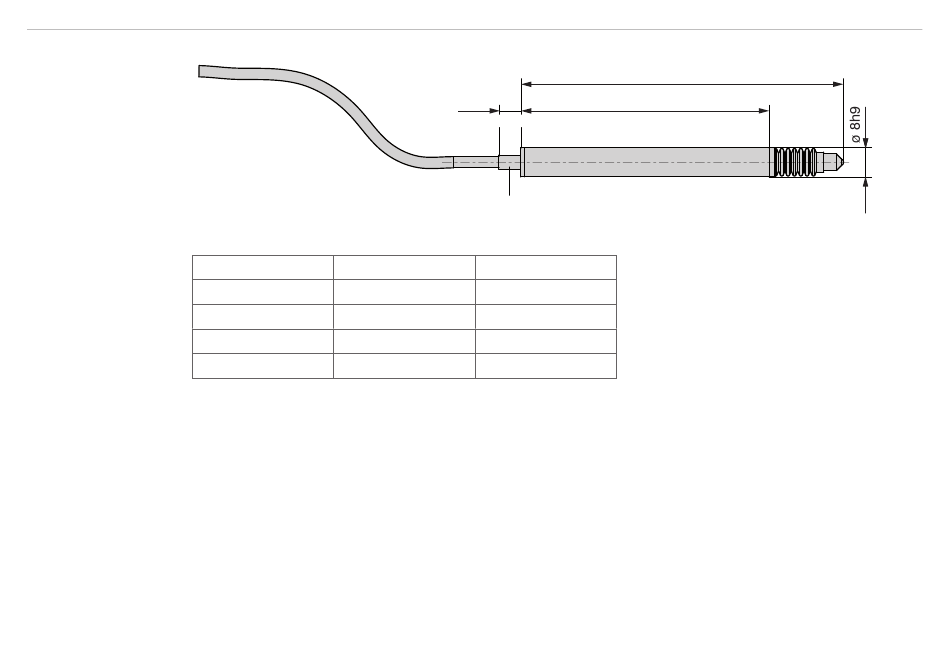

Fig. 4 Housing dimensions for gauge DTA-xG8-3-CA
Model
DTA-1G8-3-CA
DTA-3G8-3-CA
DTA-5G8-3-CA
DTA-10G8-3-CA
Dimensions in mm (inches), not to scale
induSENSOR, Series LVDT, Gauge

Sensor Dimensions

A (zero setting)
82.8 mm (3.26)
88.2 mm (3.47)
118 mm (4.64)
155 mm (6.10)
6
B
(0.24)
Crimp
B
64.3 mm (2.53)
68.3 mm (2.69)
89.5 mm (3.52)
121.7 mm (4.80)
A
