To check before installation
Plan the installation regarding all subsystems; charging stations, the CGC500™, Ethernet switch, cur-
1.
rent transformers and cables.
2.
Make sure that the placement off all equipment is suitable for normal operations and maintenance.
3.
Make sure that the wall is suitable for mounting the enclosure of the CGC500™. CGC500™ should be
installed close to the measurement point (incoming feeder cables or next to the main fuse). Also make
sure that the wall can support the weight of the enclosure with components. The weight is approx. 9
kg.
4.
If Internet access is via 3G/4G, make sure that there is adequate coverage at the relevant location
for the equipment. Do not install an antenna inside the CGC500™ enclosure as this may block the
reception.
To install the EV charging station
1.
Connect the Ethernet and power cables to the EV Charging stations. All Ethernet cables must be con-
nected to the same local area network, LAN.
2.
Connect the power phases to the EV charging stations. Note the phase rotation. This must be known
when the load balance is confi gured in the software confi guration.
To confi gure the EV charging station
Confi gure each individual EV charging station from the built in Web GUI accessed via the mini USB interface
to activate NanoGrid™. Refer to "CCU NanoGrid Confi guration Manual, Pd_CM_004".
Verify that the each EV charging station's fi rmware version is R3.6.1 or higher. Remember to reboot after
changing the confi guration.
To install the CGC500™
1.
Locate the mounting holes and mount the enclosure with suitable screws for the wall.
Insert the incoming cables (electrical, Ethernet and transformer cables) into the enclosure at the top
2.
or at the bottom. Separate communication cables and power cables from each other if possible.
Switch/Router
Service interface
192.168.7.2
3.

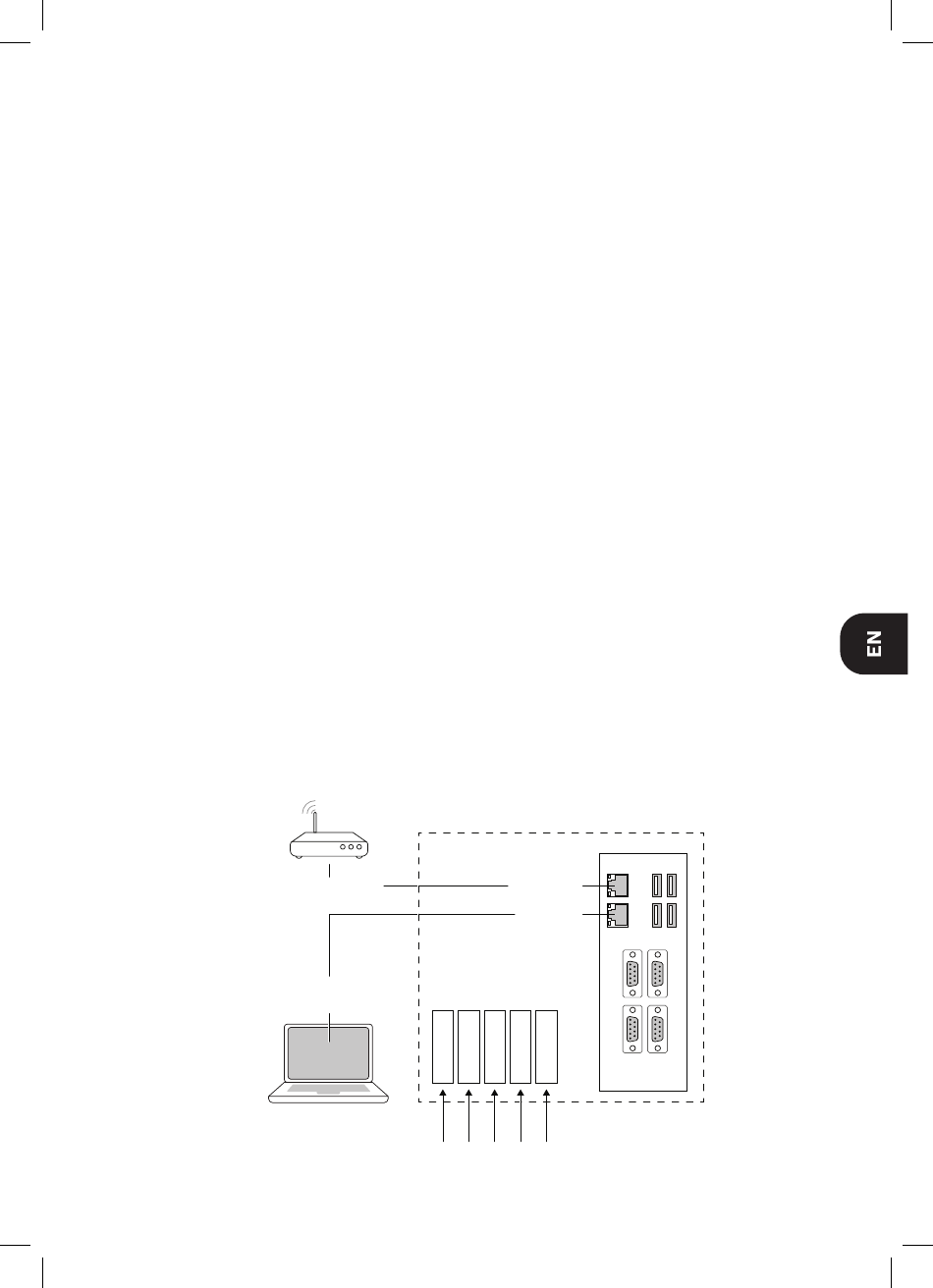

Connect the cables according to the schematics.
CTEK SWEDEN AB
WAN/LAN
SERVICE
L3
L2
L1
N
PE
