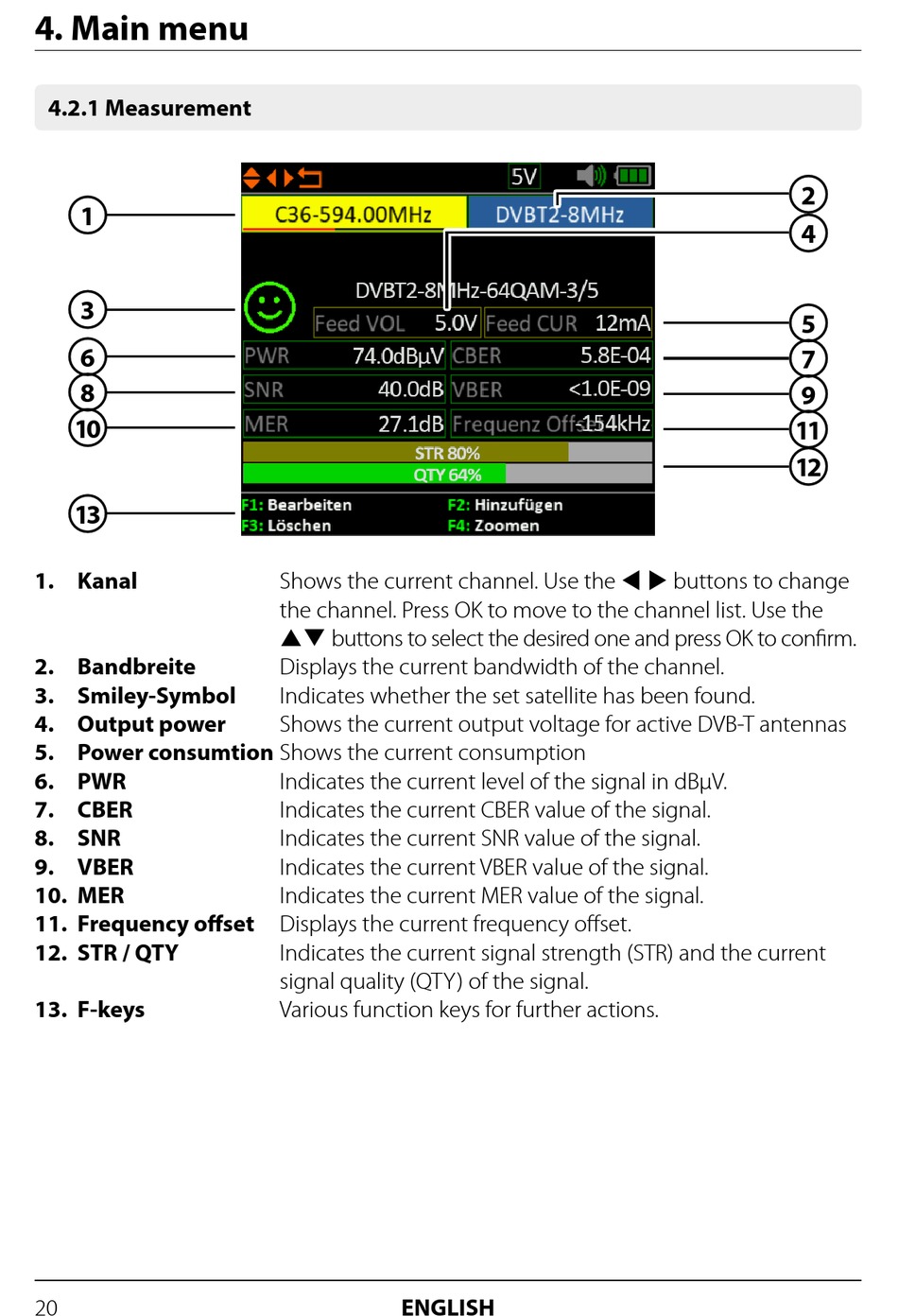

4. Main menu
4.2.1 Measurement
1
3
6
8
10
13
1. Kanal
2. Bandbreite
3. Smiley-Symbol
4. Output power
5. Power consumtion Shows the current consumption
6. PWR
7. CBER
8. SNR
9. VBER
10. MER
11. Frequency offset
12. STR / QTY
13. F-keys
20
Shows the current channel. Use the t u buttons to change
the channel. Press OK to move to the channel list. Use the
pq buttons to select the desired one and press OK to confirm.
Displays the current bandwidth of the channel.
Indicates whether the set satellite has been found.
Shows the current output voltage for active DVB-T antennas
Indicates the current level of the signal in dBµV.
Indicates the current CBER value of the signal.
Indicates the current SNR value of the signal.
Indicates the current VBER value of the signal.
Indicates the current MER value of the signal.
Displays the current frequency offset.
Indicates the current signal strength (STR) and the current
signal quality (QTY) of the signal.
Various function keys for further actions.
