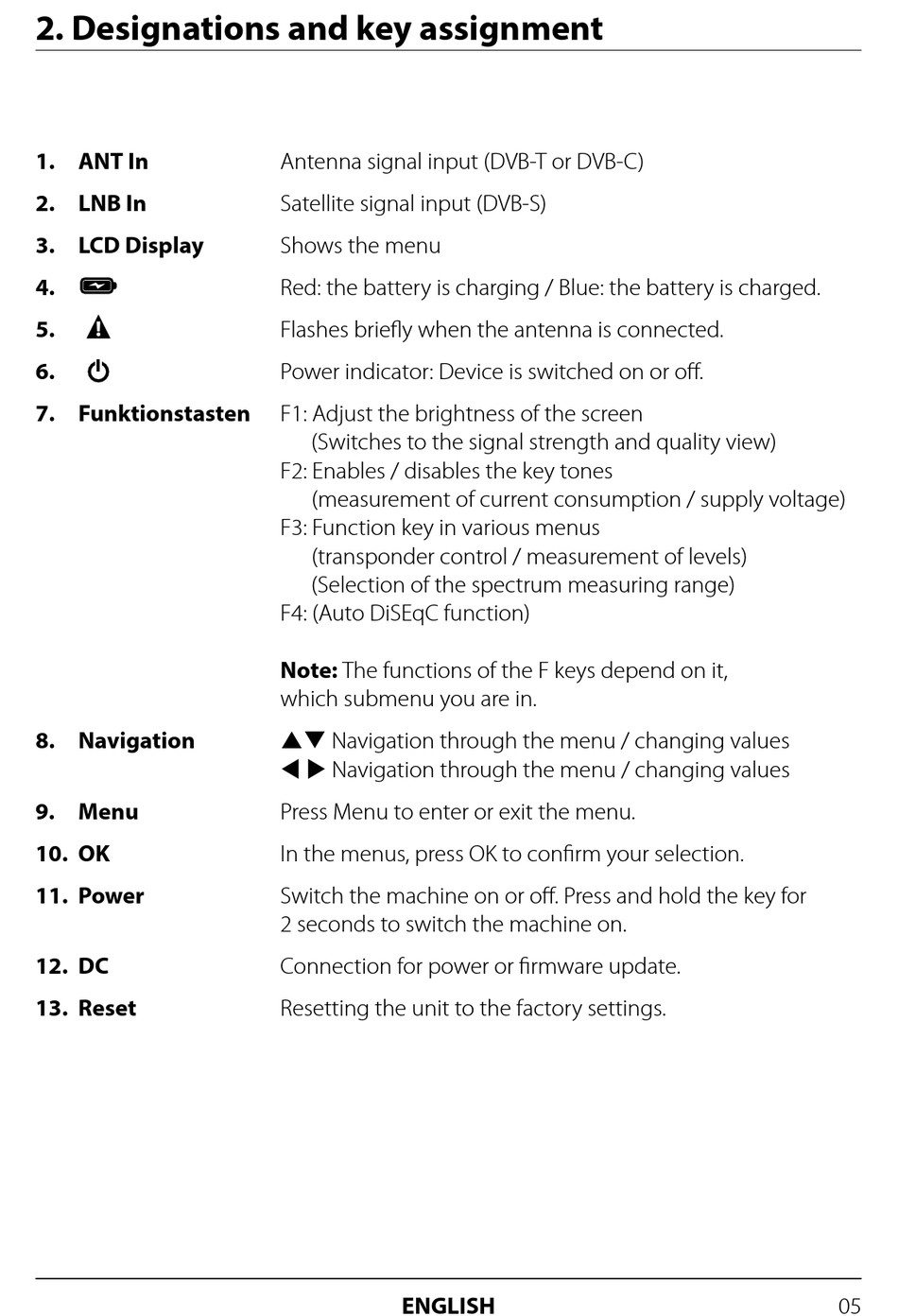

2. Designations and key assignment
1. ANT In
2. LNB In
3. LCD Display
4.
5.
6.
7. Funktionstasten
8. Navigation
9. Menu
10. OK
11. Power
12. DC
13. Reset
Antenna signal input (DVB-T or DVB-C)
Satellite signal input (DVB-S)
Shows the menu
Red: the battery is charging / Blue: the battery is charged.
Flashes briefly when the antenna is connected.
Power indicator: Device is switched on or off.
F1: Adjust the brightness of the screen
(Switches to the signal strength and quality view)
F2: Enables / disables the key tones
(measurement of current consumption / supply voltage)
F3: Function key in various menus
(transponder control / measurement of levels)
(Selection of the spectrum measuring range)
F4: (Auto DiSEqC function)
Note: The functions of the F keys depend on it,
which submenu you are in.
pq Navigation through the menu / changing values
t u Navigation through the menu / changing values
Press Menu to enter or exit the menu.
In the menus, press OK to confirm your selection.
Switch the machine on or off. Press and hold the key for
2 seconds to switch the machine on.
Connection for power or firmware update.
Resetting the unit to the factory settings.
ENGLISH
05
