WARNING  SERVICING TO BE CARRIED OUT ONLY BY AN AUTHORISED PERSON
Disconnect from electricity and gas before servicing. Check appliance is safe when you have finished.
22. To Remove an Oven Element.
Disconnect from electricity supply.
Remove oven inner back (see 19).
Remove 2 screws from the top of the element and 1 from
the bottom of the element in side the oven. Lift element out
carefully, disconnect the terminals connected to the element
noting their positions. If it is not possible to disconnect the
leads in this way, pull cooker forward to gain access to the
rear, remove screws securing the electric cover to the back
sheet and remove cover and disconnect the terminals from
the rear.
Fit new element, and reassemble in reverse order. Check
operation of oven.
23. To Remove the LH Oven Bottom and Top
Elements
Disconnect from the electricity supply.
Bottom Element

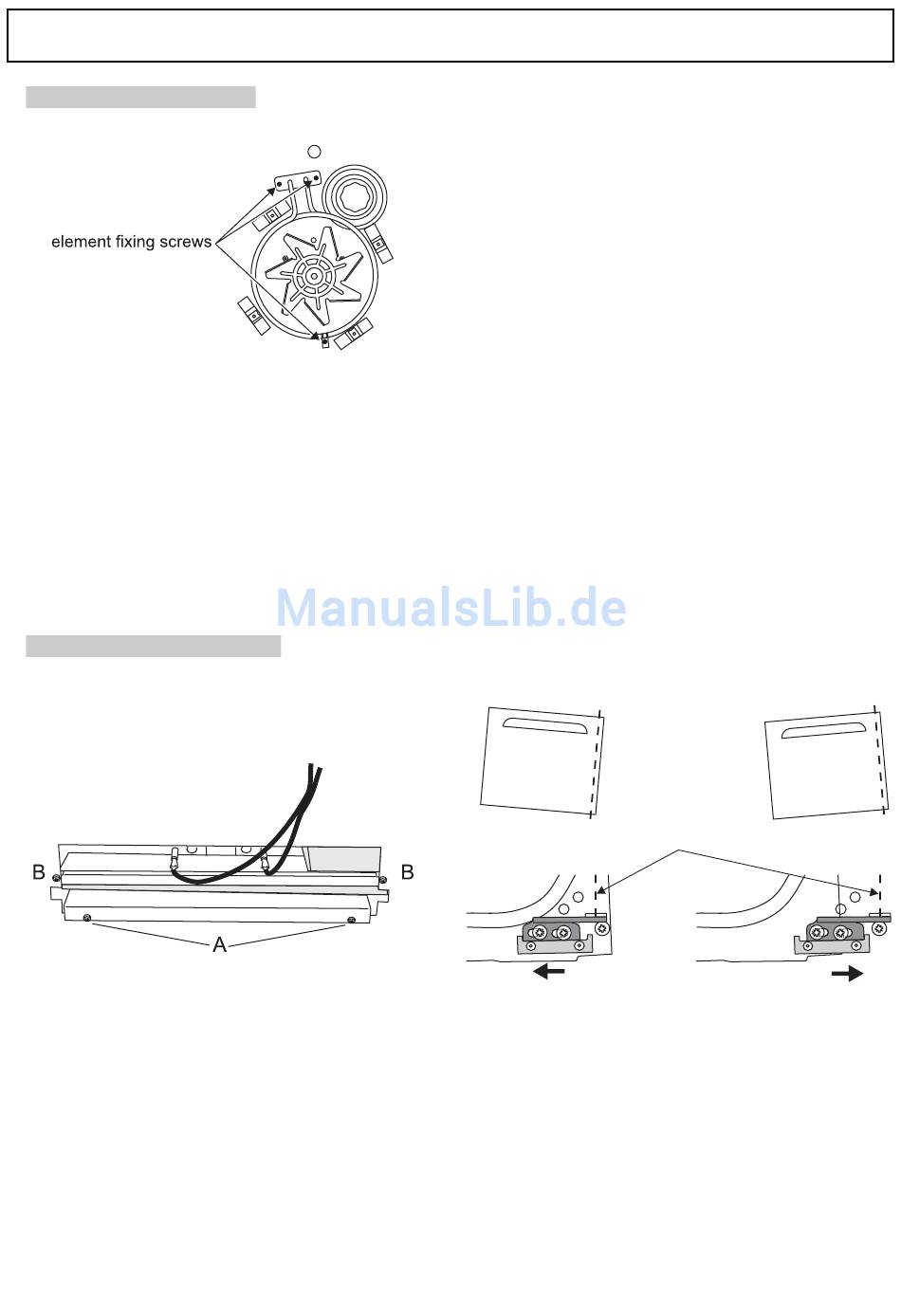

Pull the cooker forward to access the cover boxes at the rear
of the unit. Remove the fi xings that secure the cover and lift it
clear.
Remove the 2 screws 'A' and allow the plate to drop down.
Remove the 2 screws B, lower the upper plate and remove
through the slot in the cooker back.
Undo the terminal connections, noting their positions.
Remove the element fi xings and withdraw element. Replace
the element and re-assemble parts in reverse order.
Top Element
Open the LH oven door and undo the fi xings that secure the
heat shield. Remove the top element bracket fi xings and
withdraw element. Replace the element and re-assemble
parts in reverse order. Check that the oven operates
satisfactorily.
24. To Replace the ceramic hob glass.
Remove the hotplate, see 2. Fit the replacement hotplate and
ceramic hob.
Reassemble in reverse order. Check operation of the ceramic
hob.
25. To Replace a Hob Element.
Remove the hotplate, see 2. The elements are now accessible.
Reassemble in reverse order. Check operation of the ceramic
hob.
26. To change oven light bulb.
See the 'Trouble shooting' section of the users instruction.
27 To Adjust the Oven Door Angle
The door bottom hinge can be adjusted to alter the angle of
the door.
Loosen the bottom hinge fi xing screws and use the notch and
a fl at bladed screwdriver to move the position of the hinge to
set the hinge position.
Retighten the hinge screws.
Eff ect of hinge adjustment – exaggerated for clarity
Centre line of hinge pin
Oven door omitted for clarity
