Included In Shipment; Technical Data; General Notes - Scheppach ac 500r Originalanleitung

Compressor ac 500r
2 wheels
Woven hose 10m
1 accessory bag
Operating instructions
Maximum operating pressure, bars ................................................................................................................................................. 10
Maximum working pressure bars ..................................................................................................................................................... 10
Oil quantity, litres ........................................................................................................................................................................ 1,25
Actual air discharge (FAD) l/min ................................................................................................................................................... 220
Suction capacity (PD) l/min ............................................................................................................................................................290
Weight kg .......................................................................................................................................................................................... 58
Motor
Input
Speed
Noise level
In accordance with valid product liability laws,
the manufacturer of this device shall not be
responsible for damage to and from this device
which results from:
• Improper care.
• Non-compliance with the Operating Instruc-
tions.
• Repairs made by unauthorized persons.
• The installation and use of any parts which
are not original replacement parts.
• Improper use and application.
• Failure of the electrical system as a result
D GB
of non-compliance with the legal and appli
cable electrical directives and VDE regulati-
ons 0100, DIN 57113 / VDE 0113.
Read the Operating Instructions:
Carefully read the Operating Instructions before
setting up the compressor or putting it into
operation, or before doing any adjustment or
maintenance work.
Dangerous electrical voltage
Attention: Before doing any adjustment, main-
tenance or cleaning work on the compressor,
switch off the power supply.
Get to know your compressor:
1 Transport hanger
2 Pressure switch cover
3 ON/OFF switch
4 Pressure gauge for working pressure
5 Pressure regulator
6
Quick-disconnect coupling for adjustable
pressure
7 Pressure gauge for boiler pressure
8 Pressure relief valve
9 Non-return valve
10 Drain plug
11 Boiler
12 Wheel (2x)
13 Thermo overload switch
14 Sealing plug
15 Air filter unit
16 Oil drain screw with
17 Oil level indicator

Included in shipment

Technical data

230 V / 50 Hz
2200 W
2850 1/min
96 dB(A)

General notes

Danger emanating from hot surfaces
Attention: The compressor contains some parts
that can get very hot.
Danger through sudden start
Attention: After failure of electric power, the
compressor can suddenly restart.
Warning:
The pressure control has been set in the works
for maximum operating safety. Do not change
the given setting.
Before assembly and putting into operation,
read the entire Operating Instructions.
These Operating Instructions are to assist you
in getting to know your machine and utilize its
proper applications.
The Operating Instructions contain important
notes on how you work with the machine safely,
expertly, and economically, and how you can
avoid hazards, save repair costs, reduce down-
time, and increase the reliability and service life
of the machine.
In addition to the safety requirements contained
in these Operating Instructions, you must be
careful to observe your country's applicable
regulations.
Legend, Fig.1
1 2

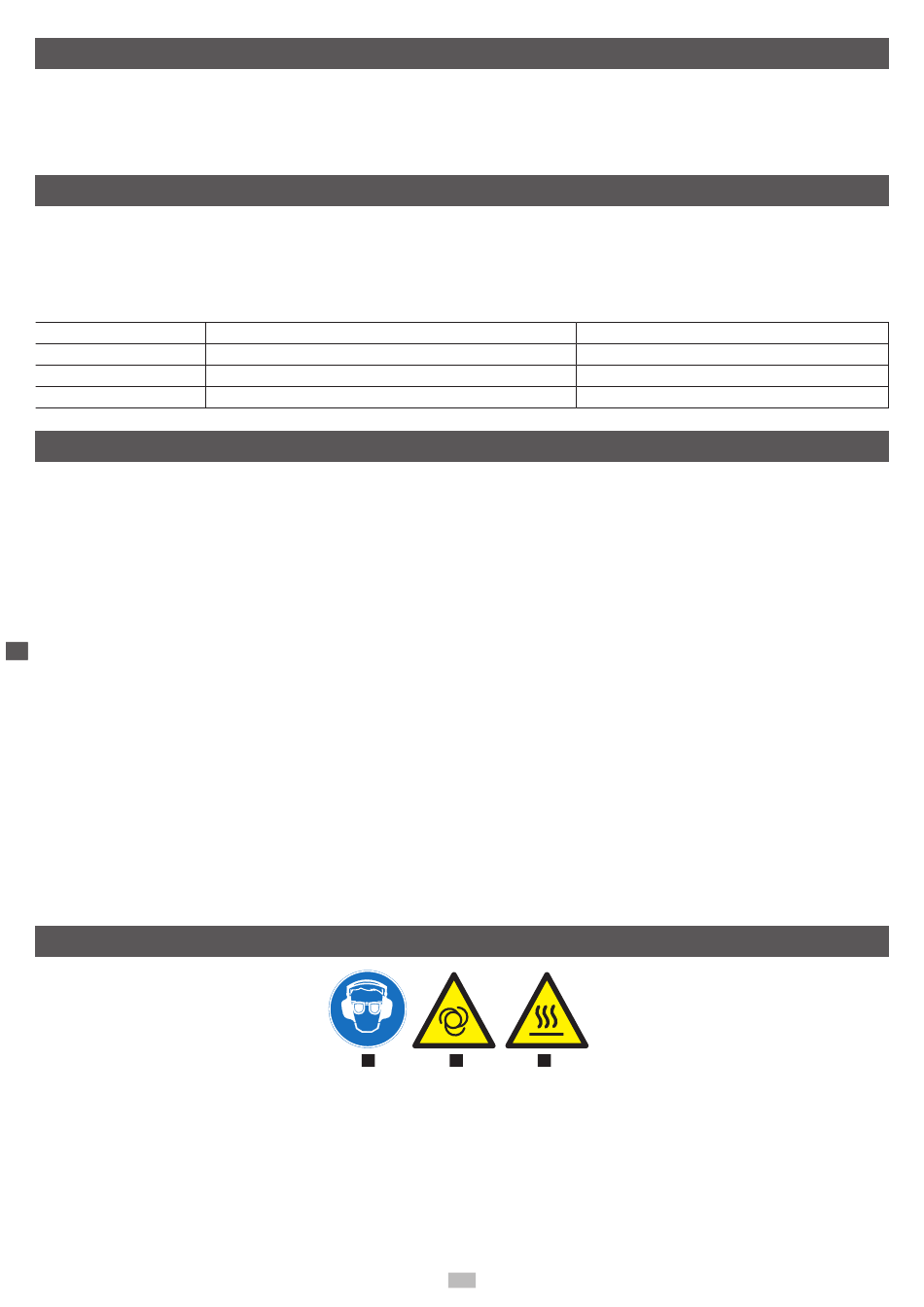

Description of symbols
The model plate on your machine may show
symbols. They contain important information
regarding the product or its use:
1 Wear ear protection.
Wear goggles.
2 Warning! Automatic start.
3 Warning! Hot Surface.
Meets the valid standards regarding electro-
magnetic compatibility.
10
400 V / 50 Hz
2200 W
2850 1/min
96 dB(A)
The Operating Instructions must always be
near the machine. Put them in a plastic folder to
protect them from dirt and humidity. They must
be read by every operator before beginning work
and observed conscientiously. Only persons
who have been trained in the use of the machine
and have been informed of the various dangers
may work with the machine. The required mini-
mum age must be observed.
In addition to the safety requirements contai-
ned in these Operating Instructions and your
country's applicable regulations, you should
observe the generally recognized technical
rules concerning the operation of woodworking
machines.
• After unpacking, check all parts for any
transport damage. Inform the supplier im-
mediately of any faults. Later complaints
cannot be considered.
• Make sure the delivery is complete.
• Before putting into operation, familiarize
yourself with the machine by carefully rea-
ding these instructions.
• Use only original accessories, wearing or
replacement parts. You can find replace-
ment parts at your scheppach dealer.
• When ordering, include our item number
and the type and year of construction of the
machine.
