Old devices must not be disposed of with house-
hold waste!
This symbol indicates that this product must
not be disposed of together with domestic
waste in compliance with the Directive
(2012/19/EU) pertaining to waste electrical
and electronic equipment (WEEE). This product must
be disposed of at a designated collection point. This
can occur, for example, by handing it in at an author-
ised collecting point for the recycling of waste elec-
trical and electronic equipment. Improper handling
of waste equipment may have negative consequenc-
es for the environment and human health due to po-
tentially hazardous substances that are often con-
tained in electrical and electronic equipment. By
properly disposing of this product, you are also con-
tributing to the effective use of natural resources.
You can obtain information on collection points for
waste equipment from your municipal administration,
public waste disposal authority, an authorised body
for the disposal of waste electrical and electronic
equipment or your waste disposal company.

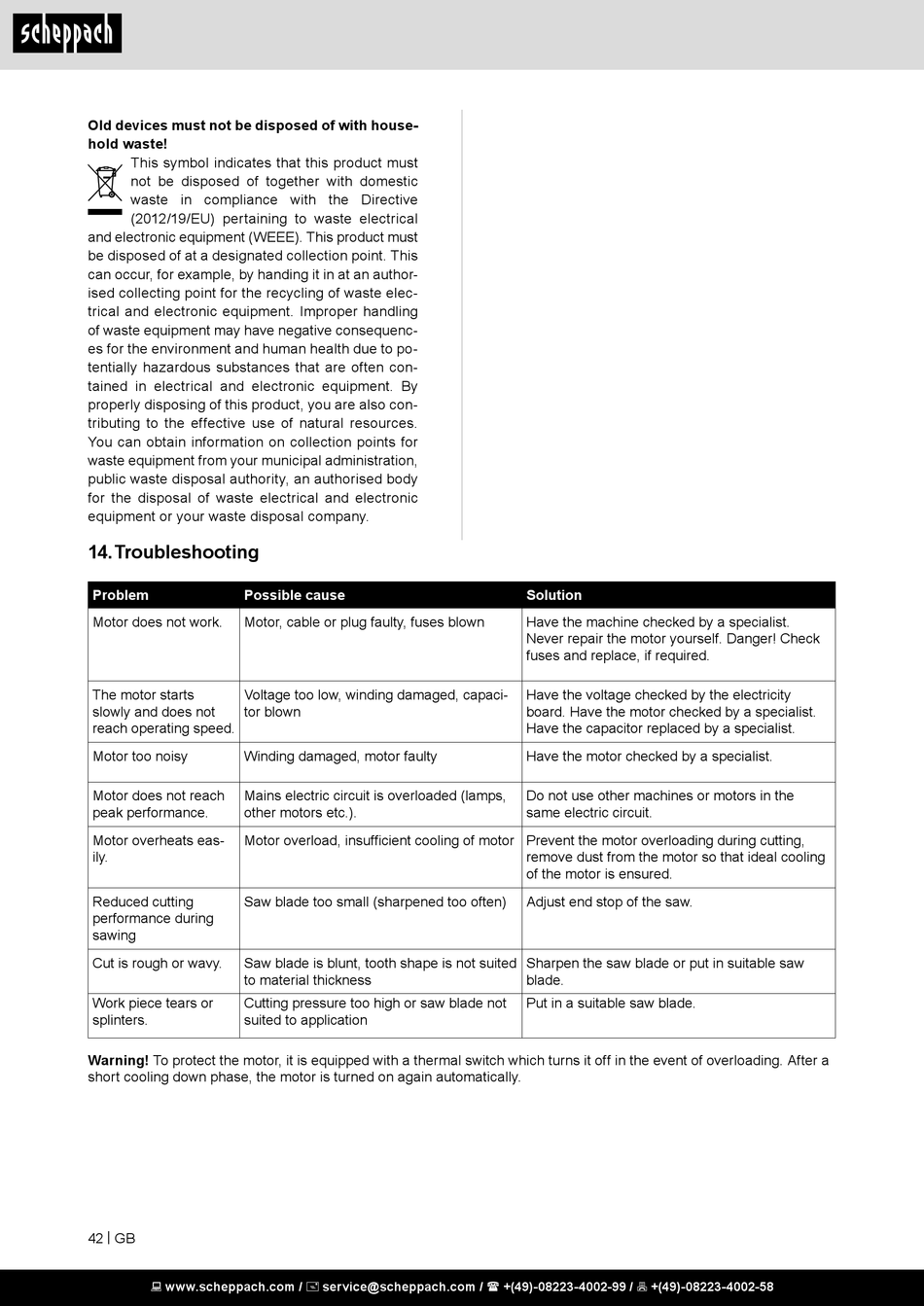

14. Troubleshooting

Problem Possible cause
Motor does not work. Motor, cable or plug faulty, fuses blown
The motor starts Voltage too low, winding damaged, capaci-
slowly and does not tor blown
reach operating speed.
Motor too noisy Winding damaged, motor faulty
Motor does not reach Mains electric circuit is overloaded (lamps,
peak performance. other motors etc.).
Motor overheats eas- Motor overload, insufficient cooling of motor Prevent the motor overloading during cutting,
ily.
Reduced cutting Saw blade too small (sharpened too often)
performance during
sawing
Cut is rough or wavy. Saw blade is blunt, tooth shape is not suited
to material thickness
Work piece tears or Cutting pressure too high or saw blade not
splinters. suited to application
Warning! To protect the motor, it is equipped with a thermal switch which turns it off in the event of overloading. After a
short cooling down phase, the motor is turned on again automatically.
42 | GB
 www.scheppach.com /  service@scheppach.com /  +(49)-08223-4002-99 /  +(49)-08223-4002-58
Solution
Have the machine checked by a specialist.
Never repair the motor yourself. Danger! Check
fuses and replace, if required.
Have the voltage checked by the electricity
board. Have the motor checked by a specialist.
Have the capacitor replaced by a specialist.
Have the motor checked by a specialist.
Do not use other machines or motors in the
same electric circuit.
remove dust from the motor so that ideal cooling
of the motor is ensured.
Adjust end stop of the saw.
Sharpen the saw blade or put in suitable saw
blade.
Put in a suitable saw blade.
