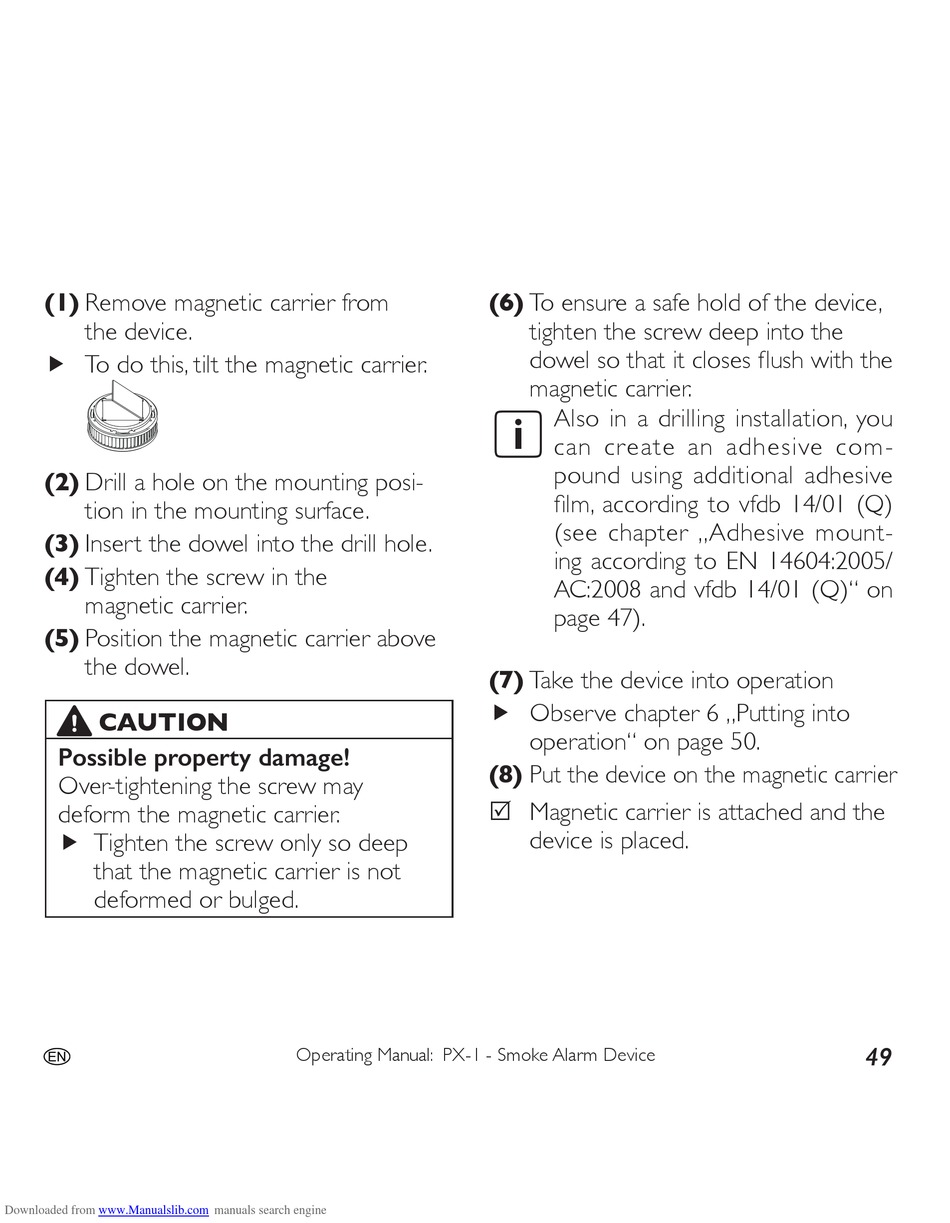

(1) Remove magnetic carrier from
the device.
f To do this, tilt the magnetic carrier.
(2) Drill a hole on the mounting posi-
tion in the mounting surface.
(3) Insert the dowel into the drill hole.
(4) Tighten the screw in the
magnetic carrier.
(5) Position the magnetic carrier above
the dowel.
CAUTION
Possible property damage!
Over-tightening the screw may
deform the magnetic carrier.
f Tighten the screw only so deep
that the magnetic carrier is not
deformed or bulged.
EN
Downloaded from www.Manualslib.com
Operating Manual: PX-1 - Smoke Alarm Device
manuals search engine
(6) To ensure a safe hold of the device,
tighten the screw deep into the
dowel so that it closes flush with the
magnetic carrier.
Also in a drilling installation, you
can create an adhesive com-
pound using additional adhesive
film, according to vfdb 14/01 (Q)
(see chapter „Adhesive mount-
ing according to EN 14604:2005/
AC:2008 and vfdb 14/01 (Q)" on
page 47).
(7) Take the device into operation
f Observe chapter 6 „Putting into
operation" on page 50.
(8) Put the device on the magnetic carrier
5 Magnetic carrier is attached and the
device is placed.
