3.2 Controls

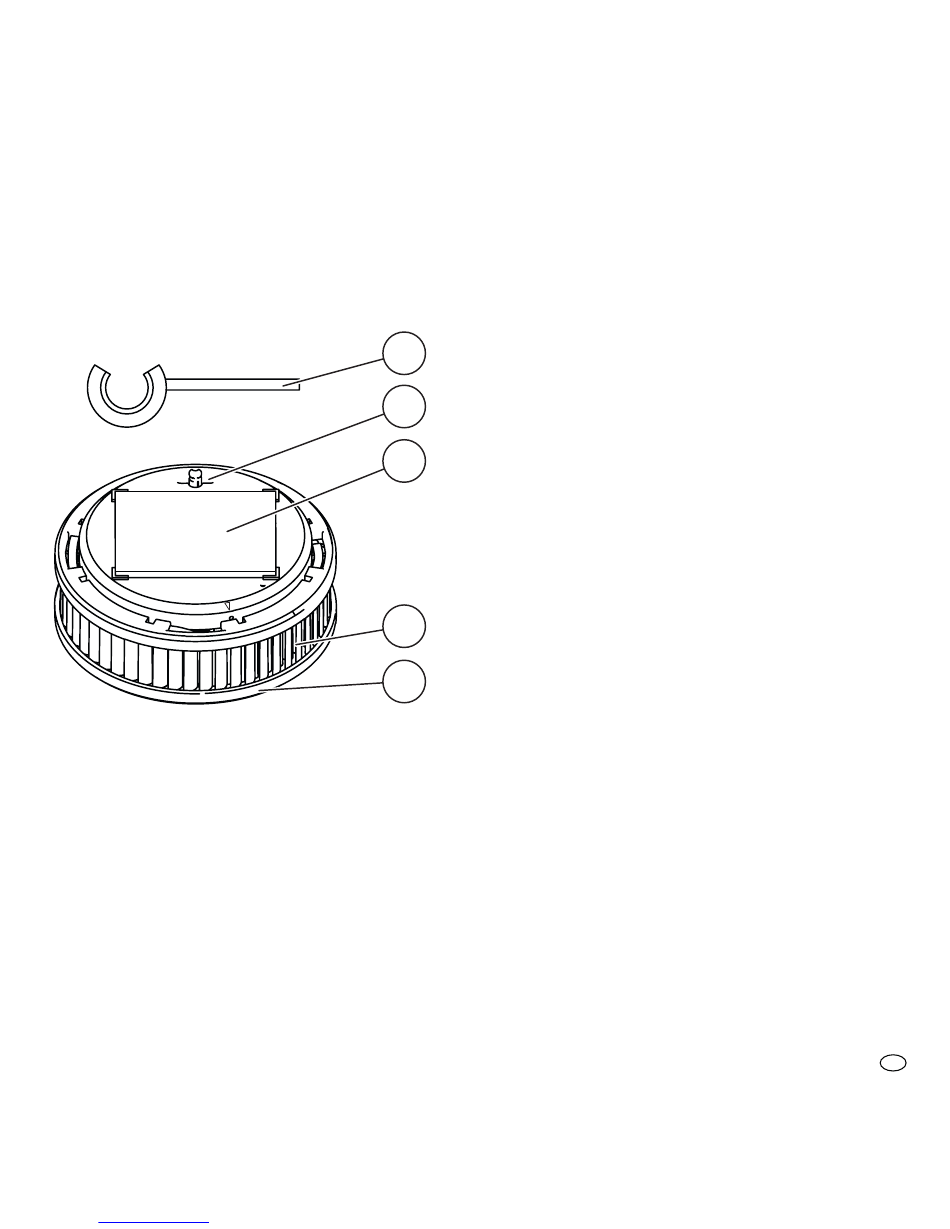

Fig. 12 Controls
1 Splint pin (activation backup)
2 Activation button
3 Magnetic carrier
4 Smoke intake lamella
5 Testing / stop button
(smoke alarm device cover)
40
Downloaded from www.Manualslib.com
Operating Manual: PX-1 - Smoke Alarm Device
manuals search engine
Splint pin (activation backup)
The splint pin (activation backup) is used
1
during the transport of the device to pro-
tect against accidental activation.
2
Activation button
3
The activation button is used to turn the
device on and off.
Magnetic carrier
The magnetic carrier is used for fastening
the device.
4
Testing / stop button
(smoke alarm device cover)
5
A self-test can be initiated using the
testing / stop button (smoke alarm de-
vice cover).
The testing / stop button (smoke alarm
device cover) can be actuated to interrupt
or stop the alarm and alert tones.
Smoke intake lamella
Through the smoke intake lamella, fire
smoke reaches the interior of the device
and can be detected by sensors.
