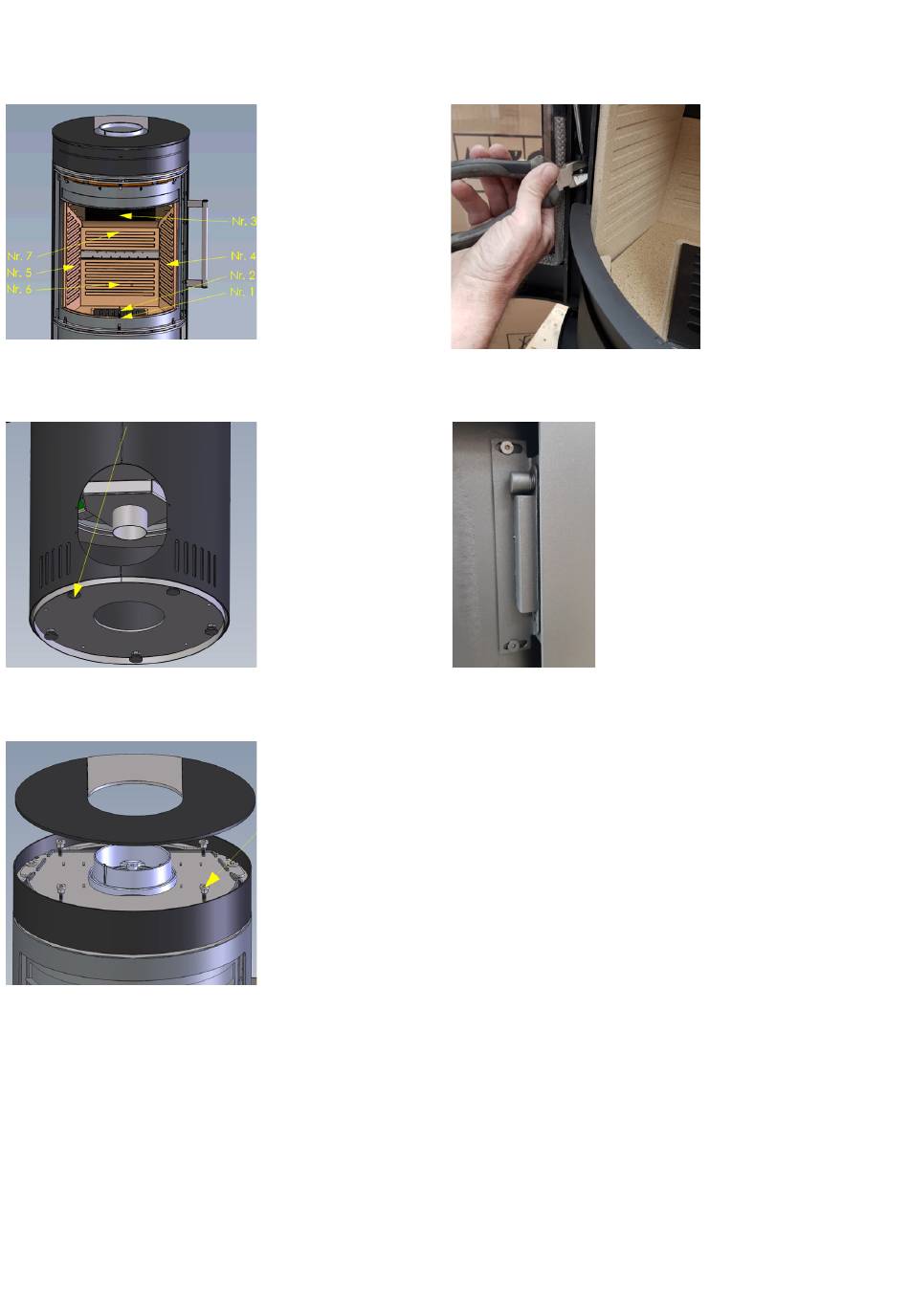

13.0. Drawings with explanation

13.1. Replacement of insulation plates

13.3. Adjusting the feet

13.5. Adjusting the top plate

38
Please follow the
numerical order.
The five adjustable
feet have to be ad-
justed outside with a
17mm wrench key, or
through the air hole in
the back of the stove
with a 5mm unbraco
key.
Adjusting the top
plate is done by the
4 nuts located under
the top plate.

13.2 Adjusting the doors auto lock

13.4. Changing the pull in the door

To change the pull in the door, ad-
just the two magnet modules.
Loosen the two unbrako screws
use, a 2,5mm unbrako key.
A stronger pull in the door: Move
the two magnet moduls closer to
the door.
A lower pull in the door: Move the
two magnet modules away from
the door
We recommand a pull in the door
between
Remove the split
and tighten the
screw (clockwise)
depending on how
fast the door should
close
5 - 6 kg.
