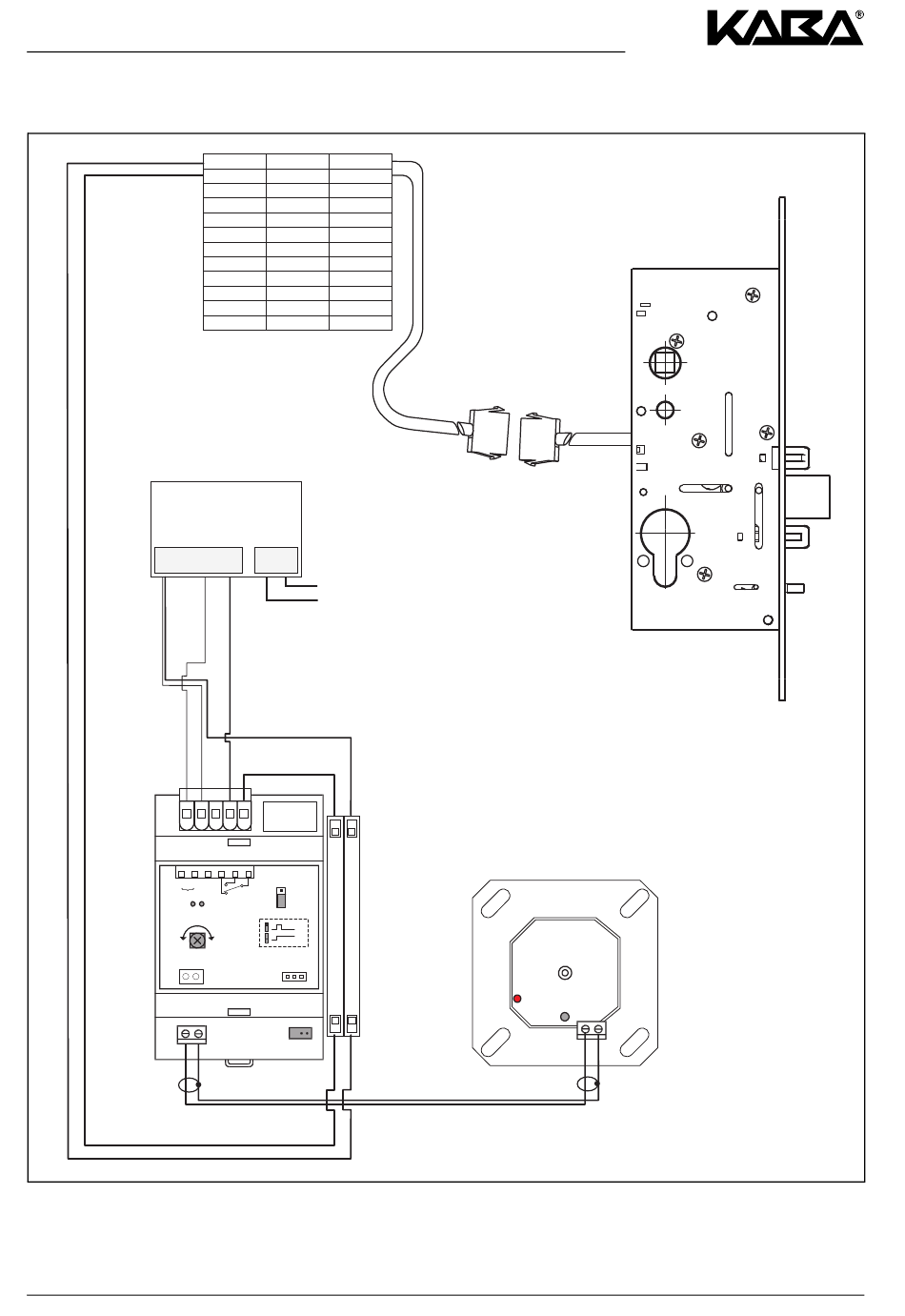

Applikation / Application / Applicazione Kaba Elolegic - Kaba X-Lock Installationsanleitung

Installation - Kaba x-lock Elektroschloss
Montage serrure électrique - Montaggio serratura elettrica

Applikation / application / applicazione Kaba elolegic

– –
+ ~
+ –
INI
-
+
+
- 38 -
Schwarz noir negro
Rot rouge rosso
Gelb jaune giallo
Rosa rose rosa
Blau bleu blu
Grün vert verde
Weiss blanc bianco
Violett violet viola
Grau gris grigio
Braun brun marrone
Rot/Blau rouge/bleu rosso/blu
Grau/Rosa gris/rose grigio/rosa
+ +
N L
230 V
- ~
NC NO C
1 2
2
1
0,5...80"
+
1 2
