20) Thread the air cylinder/spool assembly into fluid housing/outlet block assembly. Make
sure not to cross thread.

8.2 To replace seals in air cylinder

1) Hold the fluid housing (6) and rotate the air cylinder (18) counterclockwise. When
completely un-threaded, pull the two valve segments straight apart to separate.
2) Remove end cap (19) by rotating it in counterclockwise direction.
3) Using the snap ring pliers, remove the retaining ring (2).
4) Pull the spool assembly (5) straight out from the air cylinder (17)
5) Remove the compression spring (4).
6) Using the snap ring pliers, remove the retaining ring (7).
7) Remove the nylon washer (15) from the air cylinder.
8) Using o-ring removal tool, remove o-ring (16).
9) Replace all o-rings if necessary.
10) Lubricate all o-rings with o-ring grease.
11) Reinstall o-ring (16).
12) Reinstall nylon washer (15) and secure with retaining ring (7).
13) Reinstall compression spring (4) into air cylinder (18).
14) Thread the air cylinder into fluid housing/outlet block assembly. Make sure not to cross
thread.
15) Reinstall spool assembly (5) and secure with retaining ring (2).
16) Reinstall end cap (19).

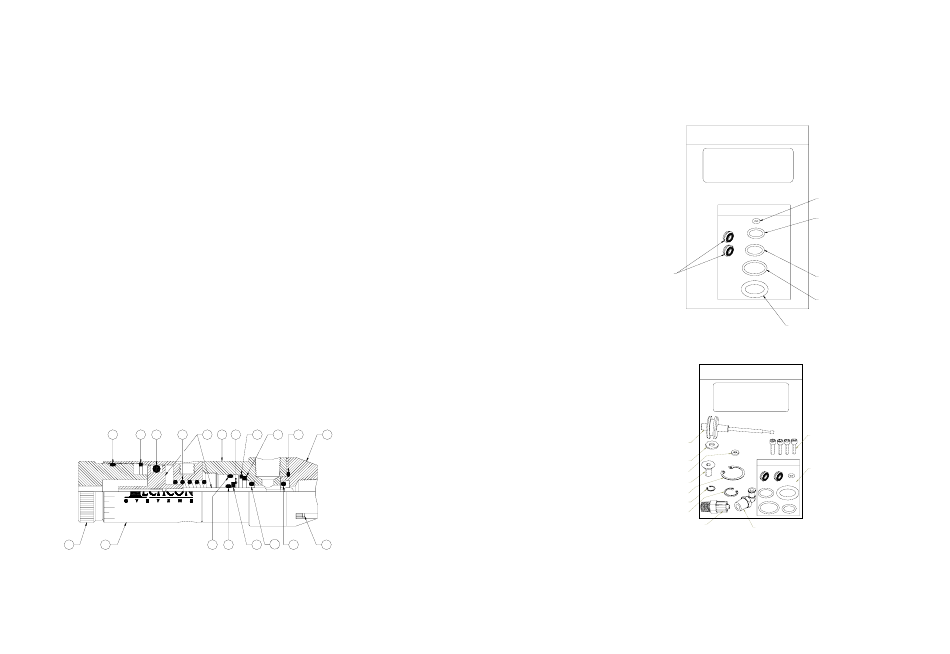

1 2 3 4
19 18
Figure 5.0
Techcon Systems is an OK International Brand
Copyright © All Rights Reserved • TS941 Rev 04/04
9
5 6 7 8 9 10 11
17 16 15 14 13 12
9.

Spare Parts and Accessories

9.1 SPARE PARTS: Techcon Systems makes available seals replacement kit and
valve repair kit.
The seal replacement kit, part number = 5322-SEALKIT, includes:
REPAIR KIT, MINI SPOOL VALVE
SEALS
UPPER (14), LOWER (13)
The valve kit includes:
REPAIR KIT, MINI SPOOL VALVE
SPOOL ASSEMBLY (5)
FLAT WASHER (9)
NYLON WASHER (15)
MOUNTING SCREW
RETAINING RING (2)
RETAINING RING (7)
RETAINING RING (8)
FLUID OUTLET FITTING
Figure 6.0
Techcon Systems is an OK International Brand
Copyright © All Rights Reserved • TS941 Rev 04/04
10
5322-SEALKIT
O-RING (6)
O-RING (16)
O-RING (10)
O-RING (1)
O-RING (3)
5322-VALVEKIT
SOCKET HEAD
CAP SCREWS (12)
5322-SEALKIT
FLUID INLET FITTING
