5. Set up Instructions
•
Connect the fluid reservoir feed tube (1) to the valve inlet port (2).
•
Connect the valve air hose (3) to the valve controller or other pneumatic
device that is used to control the valve.
•
Connect appropriate nozzle or dispensing tip (4) to the fluid outlet port.
•
Set the valve controller pressure at 70 psi (4.8 bars)
•
Set the fluid reservoir pressure. Do not exceed 500 psi (34.5 bars)
•
Make sure all connections are tight
•
Place container under the valve outlet and activate the valve until the fluid
flows steady.
The amount of fluid that flows through the valve is determined by:
•
Valve open time
•
Fluid reservoir pressure
•
Dispensing tip size
3
4

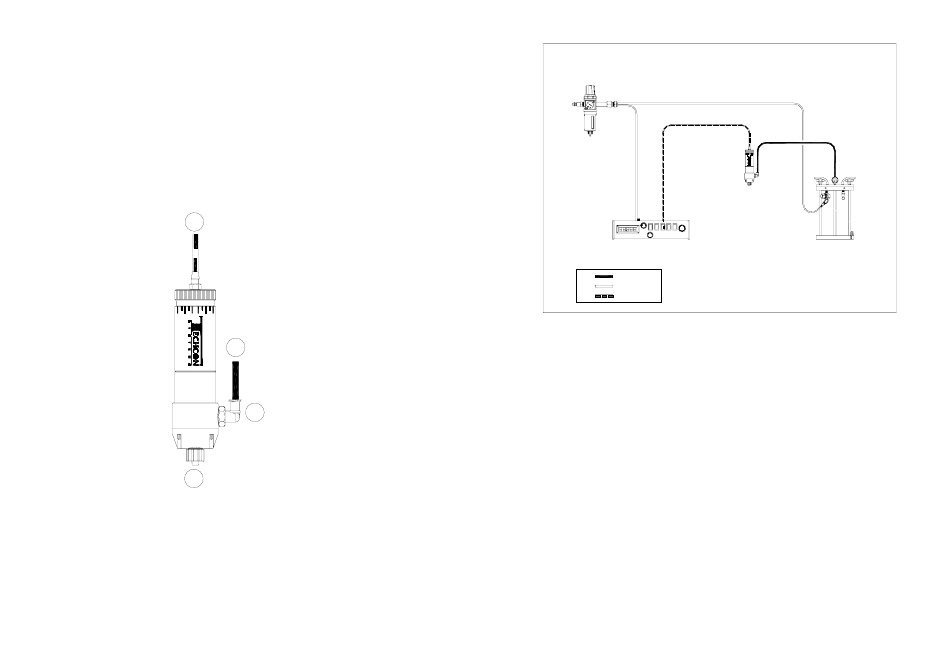

Figure 3.0
Techcon Systems is an OK International Brand
Copyright © All Rights Reserved • TS941 Rev 04/04
5
1
2
6. Typical System Set Up
PLANT AIR MUST BE PROPERLY
FILTERED AND DRY. IF NOT, SPECIFY
A 5-MICRON FILTER REGULATOR.
TECHCON SYSTEMS TS5130
CONTROLLER OR EQUIVALENT
MATERIAL
CONSTANT AIR
PULSED AIR
Figure 4.0
Techcon Systems is an OK International Brand
Copyright © All Rights Reserved • TS941 Rev 04/04
6
TS5322
MINI SPOOL VALVE
FLUID FEED SYSTEM
