1.

Specifications

Size: 4.0" length X 1.12" diameter (102mm X 28mm)
Weight: TS5322 = 0.31 lb (139g)
TS5322D = 0.26 lb (119g)
Fluid inlet port: 1/8"NPT female
Fluid outlet port: 1/8"NPT female
Air inlet port: 10-32 UNF
Mounting port: -20 UNC-2B
Maximum fluid pressure: 500 psi (34.5 bars)
Minimum air pressure required: 70 psi (4.9 bars)
Wetted parts: TS5322 = 303 Stainless steel, Anodized
Aluminum, Teflon®, EPR
TS5322D = 303 Stainless steel, Delrin, Teflon®,
EPR.
Operating frequency: exceeds 500 cycles/min.
Flow rate at 100 psi (water) 2700 ml/min.
Material viscosity range: Up to 1,000,000 Cps
Dimensions are in inches (mm)

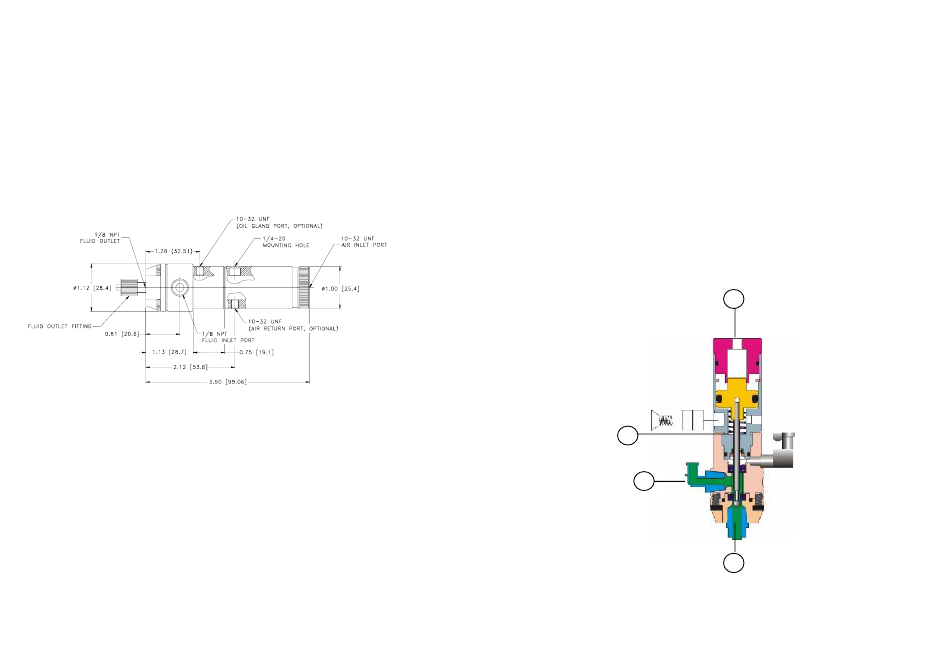

Figure 1.0
Techcon Systems is an OK International Brand
Copyright © All Rights Reserved • TS941 Rev 04/04
3
2.

Unpacking and Inspection

Carefully unpack the valve and examine the items contained in the carton.
These will include:
•
Valve Assembly
•
Valve bracket
•
User Guide
•
Valve Air Hose
3.

Description

The TS5320 Series mini spool valve is designed to dispense medium to high viscosity
fluid with very precise deposits over a wide range of shot and bead sizes. An internal
spring return makes the valve fully adaptable for use with any time/pressure controller.
A short opening stroke provides extremely fast, positive shut-off. An external
adjustment makes it easy to fine tune "suck back" level. The TS5322's compact
design allows for mounting flexibility and easy integration into automated applications.

Theory of Operation

4.
The TS5322 Series Mini spool Valves are normally closed spool valves with adjustable
suck back. Input air pressure of 70 psi (4.8 bars) through port (1) drives the spool
assembly (2) forward opening the material path from the material inlet (3) to the
material outlet (4).
Relieving the input air pressure allows the spool assembly travel back to the closing
position, ensuring rapid "fail-safe" shut-off of fluid flow
2
3
Figure 2.0
