3. Layout, Connections & Jumper Settings
3.2 Connections
USB 3.1 (Gen1) B-Port:
StdB_SSTX +
StdB_SSTX -
D-
D+

3.3 Jumper Settings

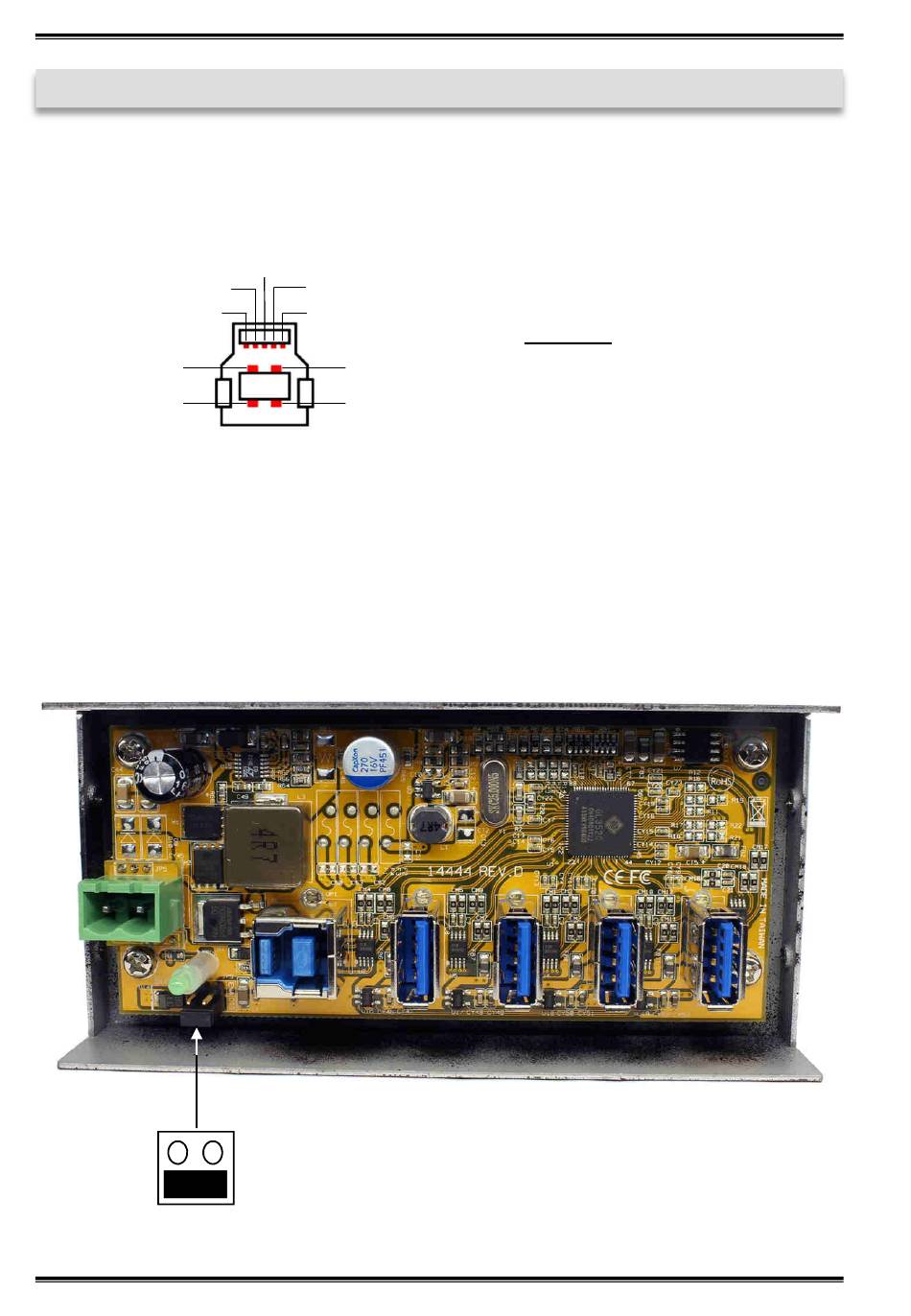

The EX-1186HMVS comes with the setting Self-Power. You also have the possibility
the EX-1186HMVS to supply Bus-Power. For this you open the case with the four
screws on both sides. Then you must set the jumper JP9 from DIS (Disable) to ENA
(Enable). See the following picture.
JP9
© Copyright 2018 by EXSYS Vertriebs GmbH. All Rights Reserved
GND_DRAIN
StdB_SSTX+
StdB_SSTX -
VBus
GND
ENA
DIS
Attention!
Never plug in with force
or in wrong direction.
