• Manifold Gauge will show cylinder pressure rather than suction pressure if the cylinder valve and Manifold valve
"A" are both open.
A
2. Charging procedures – Three phase compressors
The fundamental procedure is the same as for single phase models but the compressor can run in the wrong direction on
starting. If this happens reverse any two phases and start again. Short term reverse rotation will not damage the compressor.
All Specter compressors have internal discharge temperature protectors which are very effective in preventing dangerously
high discharge temperatures during charging. The protection module will trip and lock the compressor out for 30 minutes. It
is not normally necessary to wait 30 minutes for the module to reset. When the compressor has cooled down the module can
be reset by breaking the power supply to the control circuit. Very often the serviceman does not understand why the module
tripped and uses a jumper wire to bypass it. He continues to charge the system and removes the jumper when charging is
complete. The compressor may or may not run with the protector back in the circuit but it is certain that the compressor
has been damaged and premature failure is inevitable.

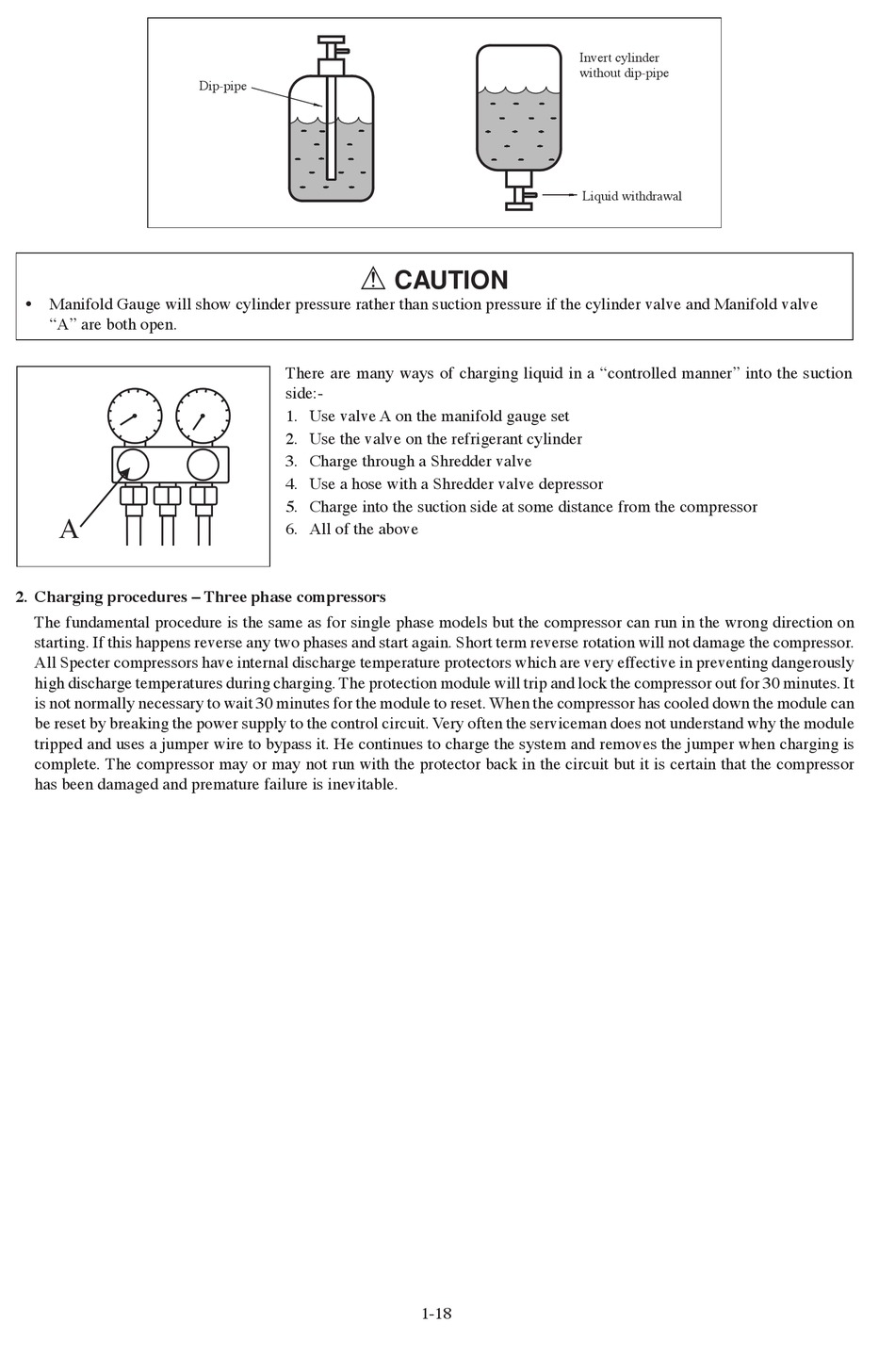

Dip-pipe
! CAUTION
There are many ways of charging liquid in a "controlled manner" into the suction
side:-
1. Use valve A on the manifold gauge set
2. Use the valve on the refrigerant cylinder
3. Charge through a Shredder valve
4. Use a hose with a Shredder valve depressor
5. Charge into the suction side at some distance from the compressor
6. All of the above
Invert cylinder
without dip-pipe
Liquid withdrawal
