4. ASSEMBLY

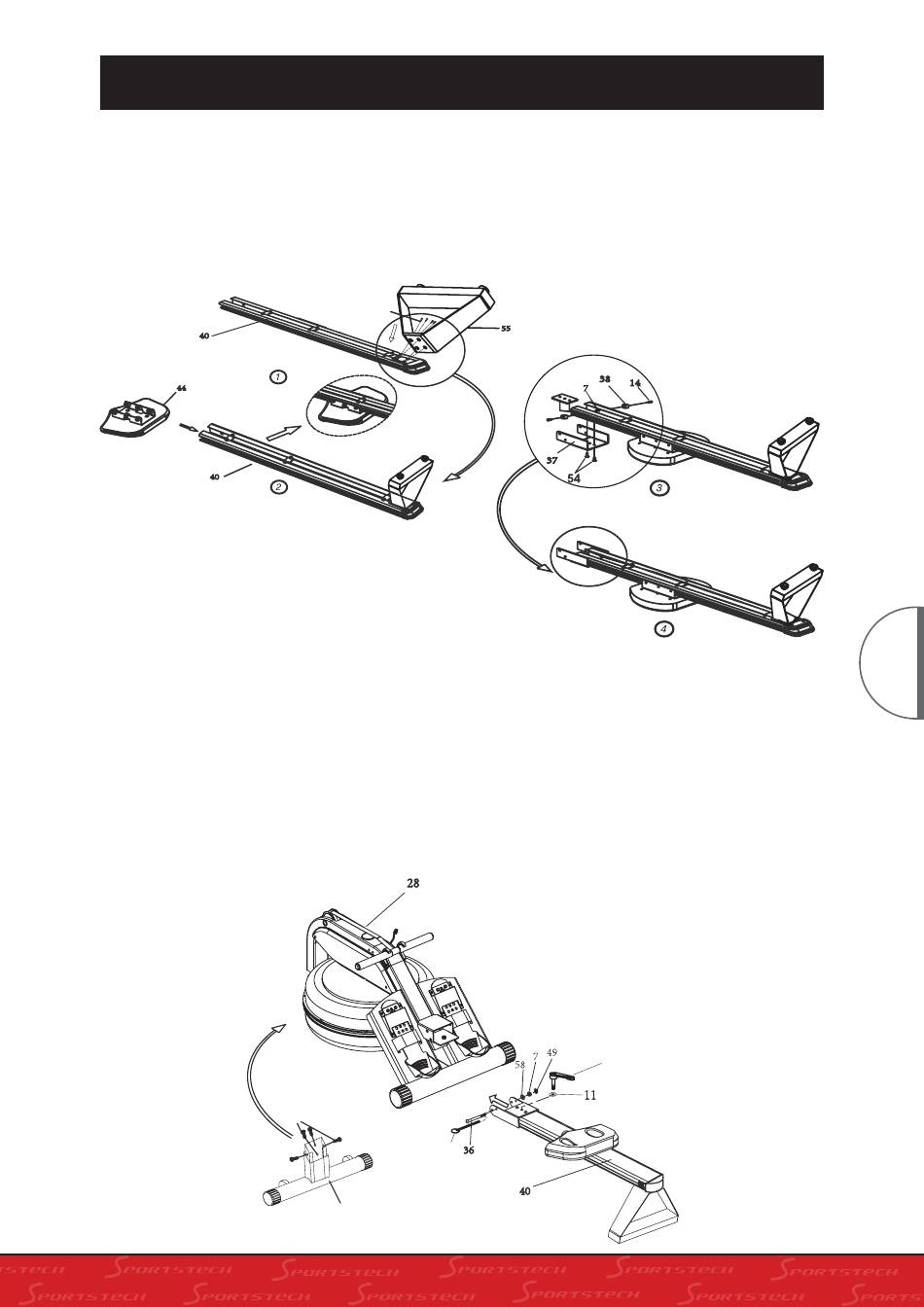

Step 1
Turn the main rail (40) over and secure the rear stand (55) with the screws (92), (Figure 1). Slide the
seat (44) into the main rail as indicated by the direction arrow (Figure 2). Then install the rail connec-
tor (37) with the perforated plate (100) and the pre-installed screws (54). Fasten the stoppers (38)
with the M8 nuts (7) and M8x25 screws (14).
92 92
EN
Step 2
Install the front stand (99) on the main frame (28) using the screws (54). Remove the handle (97),
washer (11) and locking pin (98) from the rail connector (37). Connect the main rail (40) to the
main frame (28) as indicated by the direction of the arrow. Fasten the main rail (40) with the screw
M8x130 (36), the washer (58), the nut M8 (7) and the nut sleeve (49). Re-insert the locking pin
(98) and secure the handle (97) with the washer (11) to the rail connector (37).
