Trane BFSL Technisches Handbuch Seite 98

PMM
GAV
53

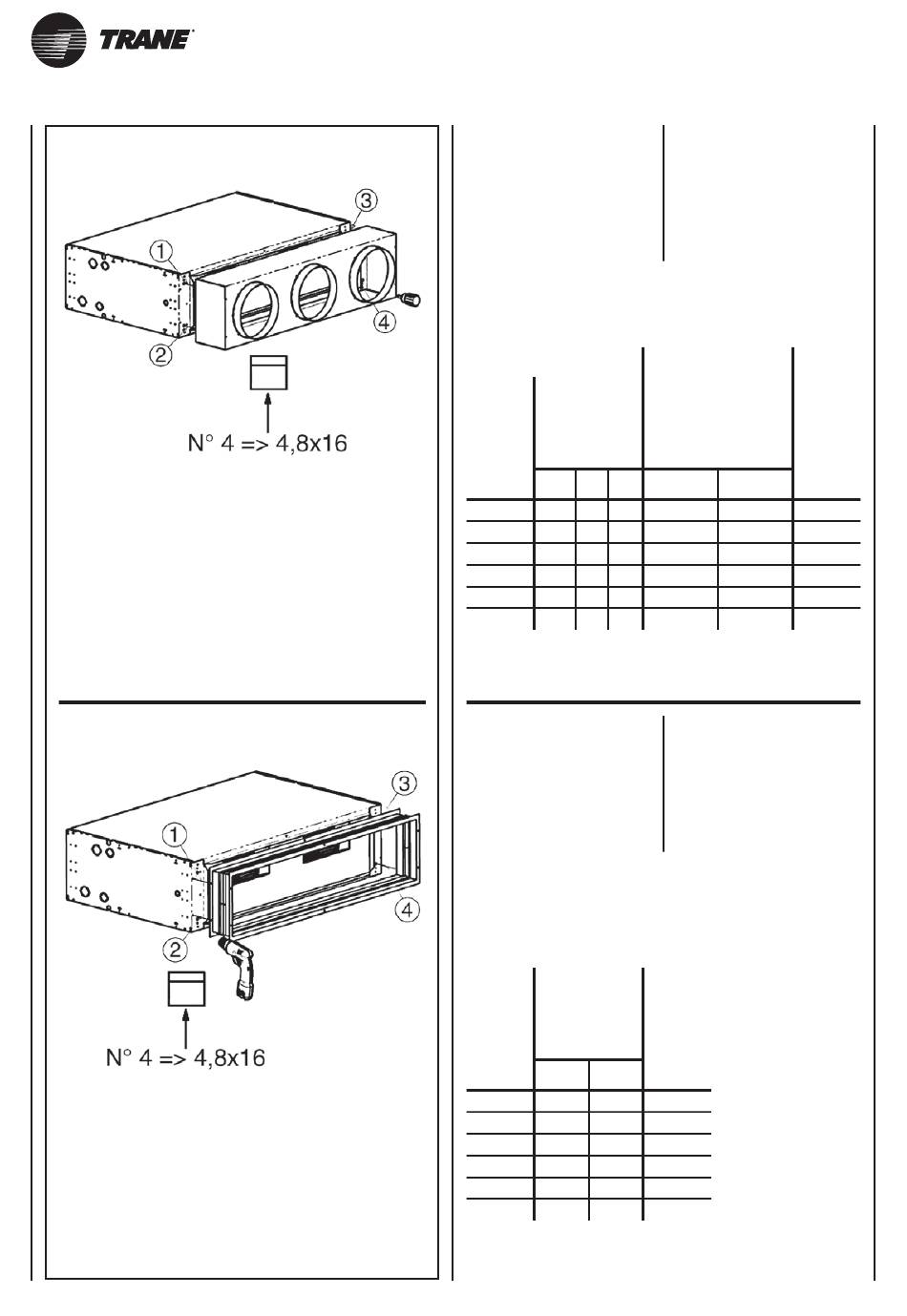

PLENUM
DI MANDATA/RIPRESA
CON DIFFUSORE
a 3 bocche circolari
(Mod. 1-2-3)
a 4 bocche circolari
(Mod. 4-5-6-7)
Grand.
Size
Типоразмер
Größe
Tamaño
A B C
Grootte
1 – 2 1133 182 298
3 1133 182 348
4
1445 300 348
5 1445 300 442
6 1535 300 472
7
1535 300 572
GIUNTO ANTIVIBRANTE
Giunto antivibrante
da installare
in mandata e/o aspirazione,
composto da doppia cornice
in lamiera zincata
e da un giunto fl essibile in PVC.
Grand.
Size
Типоразмер
Größe
Tamaño
A B
Grootte
1 – 2 1138 296
3 1138 346
4
1450 346
5 1450 421
6 1540 461
7
1540 561
OUTLET/INLET BOX
WITH
CIRCULAR DIFFUSERS
3 spigots (Mod. 1-2-3)
4 spigots (Mod. 4-5-6-7)
Diffusori circolari
Circular diffusers
Cod.
Runden Diffusoren
Code
Круглые диффузоры
Код
Difusores
Art. Nr.
Ronde verdelers
Cód.
N° Ø
Code
3 250 9034200
3 250 9034220
4 250 9034230
4 300 9034240
4 355 9034280
4 355 9034290
VIBRATION-DAMPING JOINT
Vibration-damping joint
to be installed
on the outlet and/or intake,
consisting of
a dual galvanised plate frame
and a fl exible PVC joint.
Cod.
Code
Код
Art. Nr.
Cód.
Code
6034200
6034201
6034202
6034203
6034204
6034205
UNT-SVX038F-YY
