EX-1196HMS

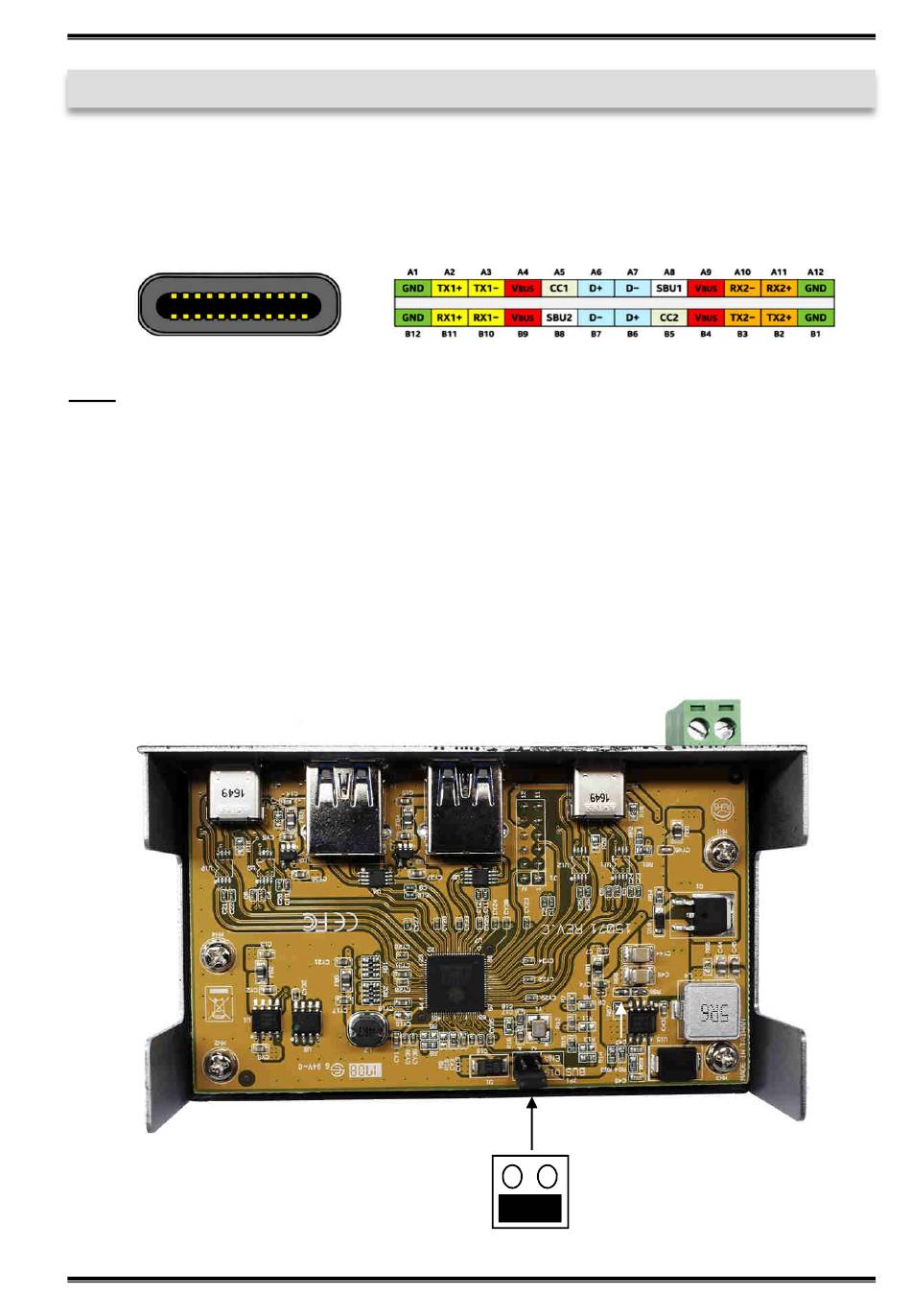

3. Layout, Connections & Jumper Settings
3.2 Connections
USB 3.1 (Gen1) C-Port:
Note!
By dual assignment of the pins, the USB Type-C plug can be plugged into the port on both
sides.

3.3 Jumper Settings

The EX-1196HMS comes with the setting Self-Power. You also have the possibility
the EX-1196HMS to supply Bus-Power. For this you open the case with the two
screws on both sides. Then you must set the jumper JP1 from DIS (Disable) to ENA
(Enable). See the following picture.
© Copyright 2018 by EXSYS Vertriebs GmbH. All Rights Reserved
ENA
JP1
DIS
