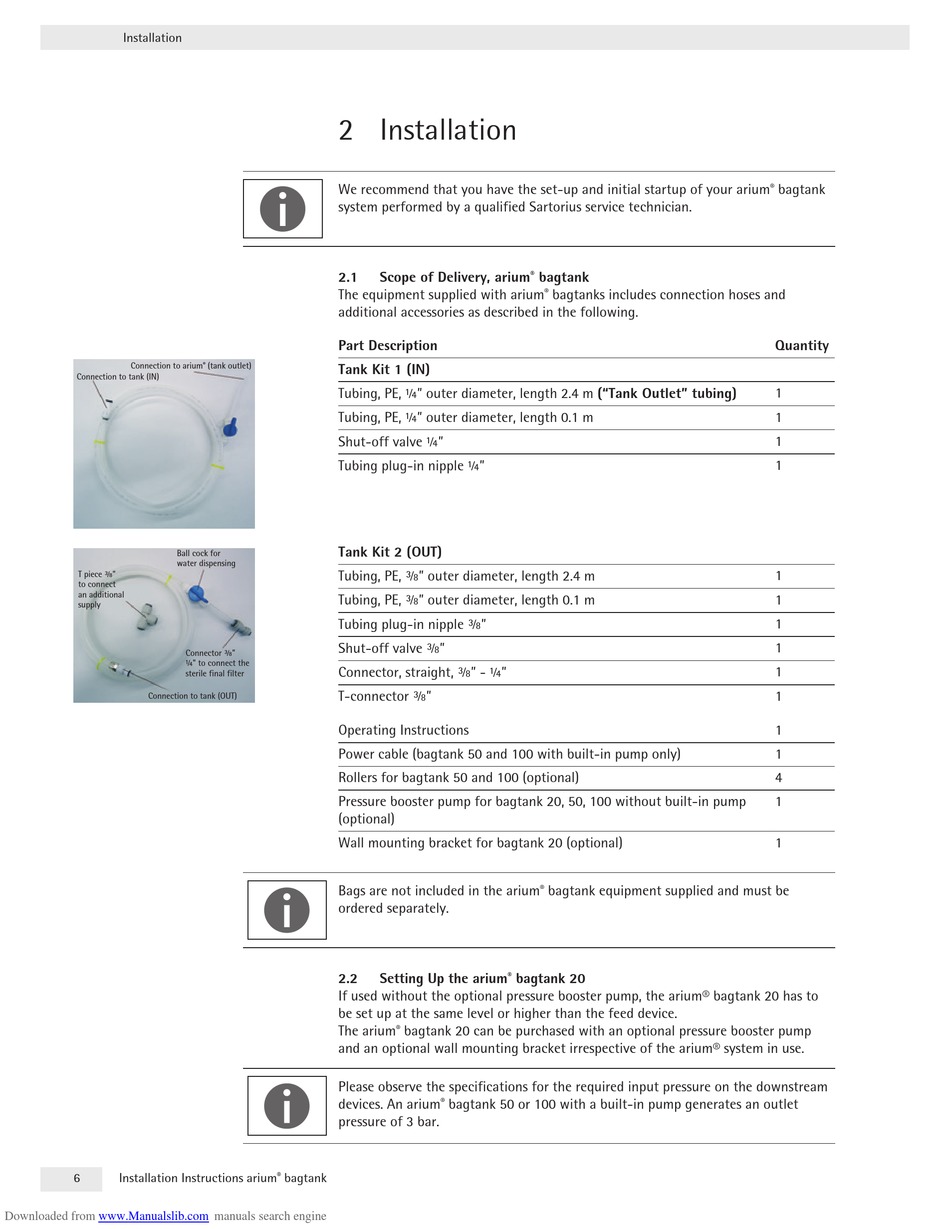

Installation

Connection to arium
Connection to tank (IN)
Ball cock for
water dispensing
T piece a"
to connect
an additional
supply
Connection to tank (OUT)
6 Installation Instructions arium
Downloaded from www.Manualslib.com
2 Installation
We recommend that you have the set-up and initial startup of your arium
system performed by a qualified Sartorius service technician.
2.1
The equipment supplied with arium
additional accessories as described in the following.
Part Description
(tank outlet) Tank Kit 1 (IN)
®
Tubing, PE, 4" outer diameter, length 2.4 m ("Tank Outlet" tubing)
Tubing, PE, 4" outer diameter, length 0.1 m
Shut-off valve 4"
Tubing plug-in nipple 4"
Tank Kit 2 (OUT)
Tubing, PE, a" outer diameter, length 2.4 m
Tubing, PE, a" outer diameter, length 0.1 m
Tubing plug-in nipple a"
Shut-off valve a"
Connector a"
4" to connect the
Connector, straight, a" - 4"
sterile final filter
T-connector a"
Operating Instructions
Power cable (bagtank 50 and 100 with built-in pump only)
Rollers for bagtank 50 and 100 (optional)
Pressure booster pump for bagtank 20, 50, 100 without built-in pump
(optional)
Wall mounting bracket for bagtank 20 (optional)
Bags are not included in the arium
ordered separately.
2.2
If used without the optional pressure booster pump, the arium® bagtank 20 has to
be set up at the same level or higher than the feed device.
The arium
and an optional wall mounting bracket irrespective of the arium® system in use.
Please observe the specifications for the required input pressure on the downstream
devices. An arium
pressure of 3 bar.
bagtank
®
