CPU Socket

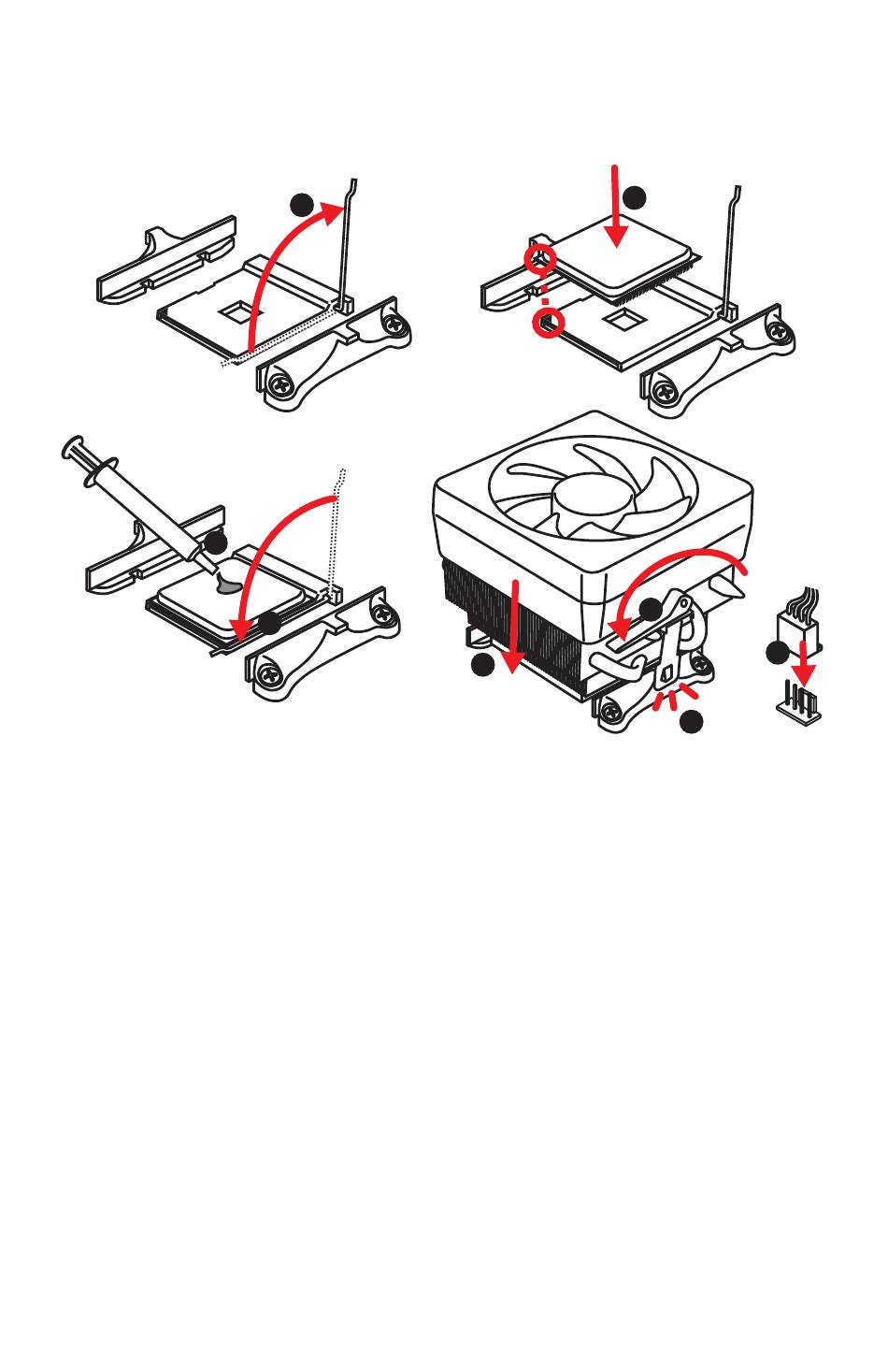

Please install the CPU into the CPU socket as shown below.
4
⚠
Important
∙ When changing the processor, the system configuration could be cleared and reset
BIOS to default values due to the AM4 processor's architecture.
Always unplug the power cord from the power outlet before installing or removing
∙
the CPU.
∙ When installing a CPU, always remember to install a CPU heatsink. A CPU heatsink
is necessary to prevent overheating and maintain system stability.
Confirm that the CPU heatsink has formed a tight seal with the CPU before booting
∙
your system.
Overheating can seriously damage the CPU and motherboard. Always make sure
∙
the cooling fans work properly to protect the CPU from overheating. Be sure to apply
an even layer of thermal paste (or thermal tape) between the CPU and the heatsink to
enhance heat dissipation.
∙ If you purchased a separate CPU and heatsink/ cooler, Please refer to the docu-
mentation in the heatsink/ cooler package for more details about installation.
1
3
2
5
Overview of Components
7
8
6
9
