DIMM Slots

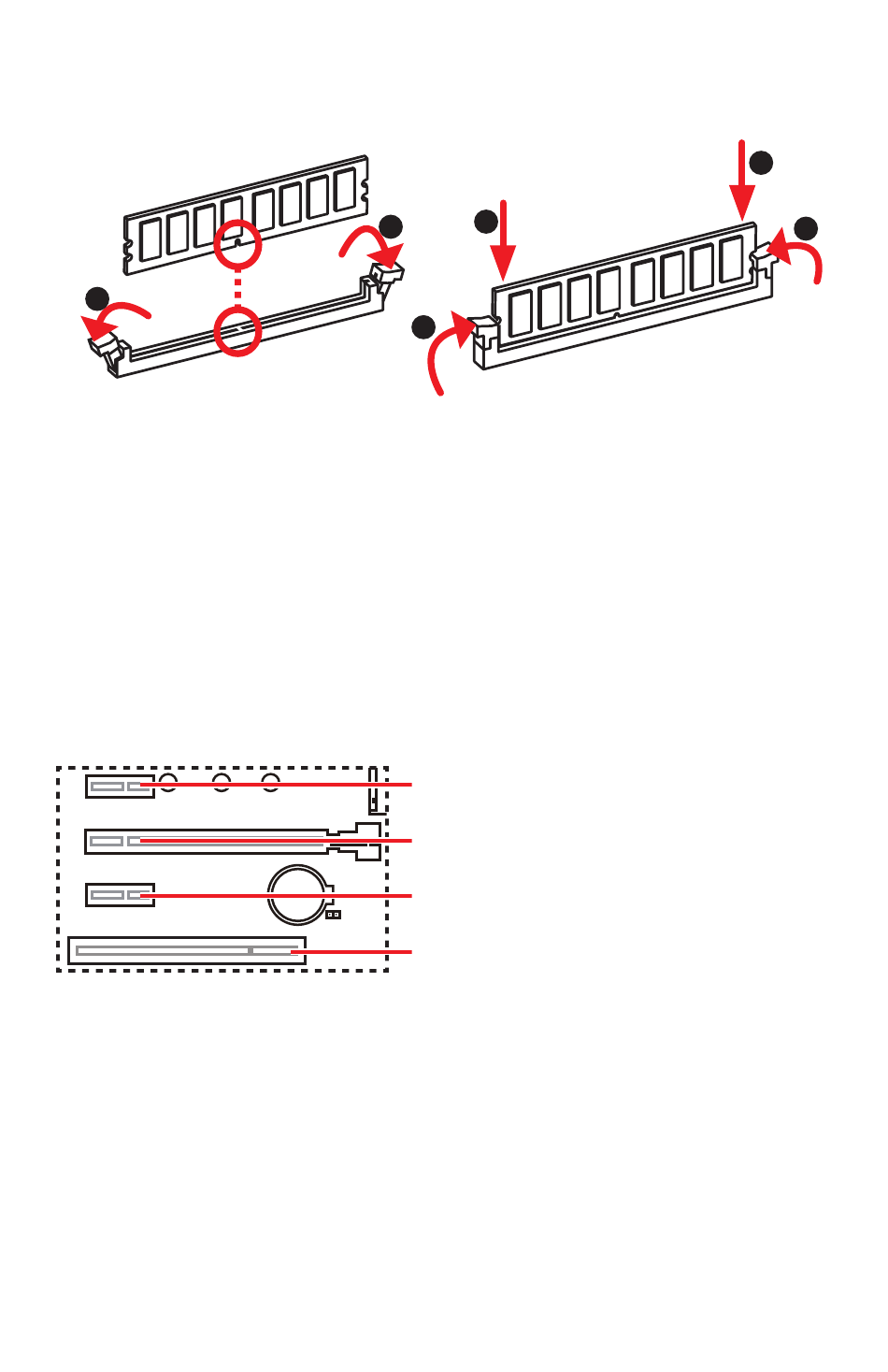

Please install the memory module into the DIMM slot as shown below.
1
⚠
Important
∙ Always insert memory modules in the DIMMA1 slot first.
∙ Due to chipset resource usage, the available capacity of memory will be a little less
than the amount of installed.
Based on processor specification, the Memory DIMM voltage below 1.35V is sug-
∙
gested to protect the processor.
Due to AM4 CPU/memory controller official specification limitation, the frequency
∙
of memory modules may operate lower than the marked value under the default
state. Please refer www.msi.com for more information on compatible memory.
PCI_E1~3 & PCI1: PCIe & PCI Expansion Slots
⚠
Important
When adding or removing expansion cards, always turn off the power supply and
∙
unplug the power supply power cable from the power outlet. Read the expansion
card's documentation to check for any necessary additional hardware or software
changes.
∙ If you install a large and heavy graphics card, you need to use a tool such as MSI
Gaming Series Graphics Card Bolster to support its weight to prevent deformation
of the slot.
10
Overview of Components
2
1
3
PCI_E1: PCIe 3.0 x1 (PCH)
PCI_E2: PCIe 3.0 x16 (CPU)
PCI_E3: PCIe 3.0 x1 (PCH)
PCI1: PCI slot
2
3
