Cleaning and maintenance

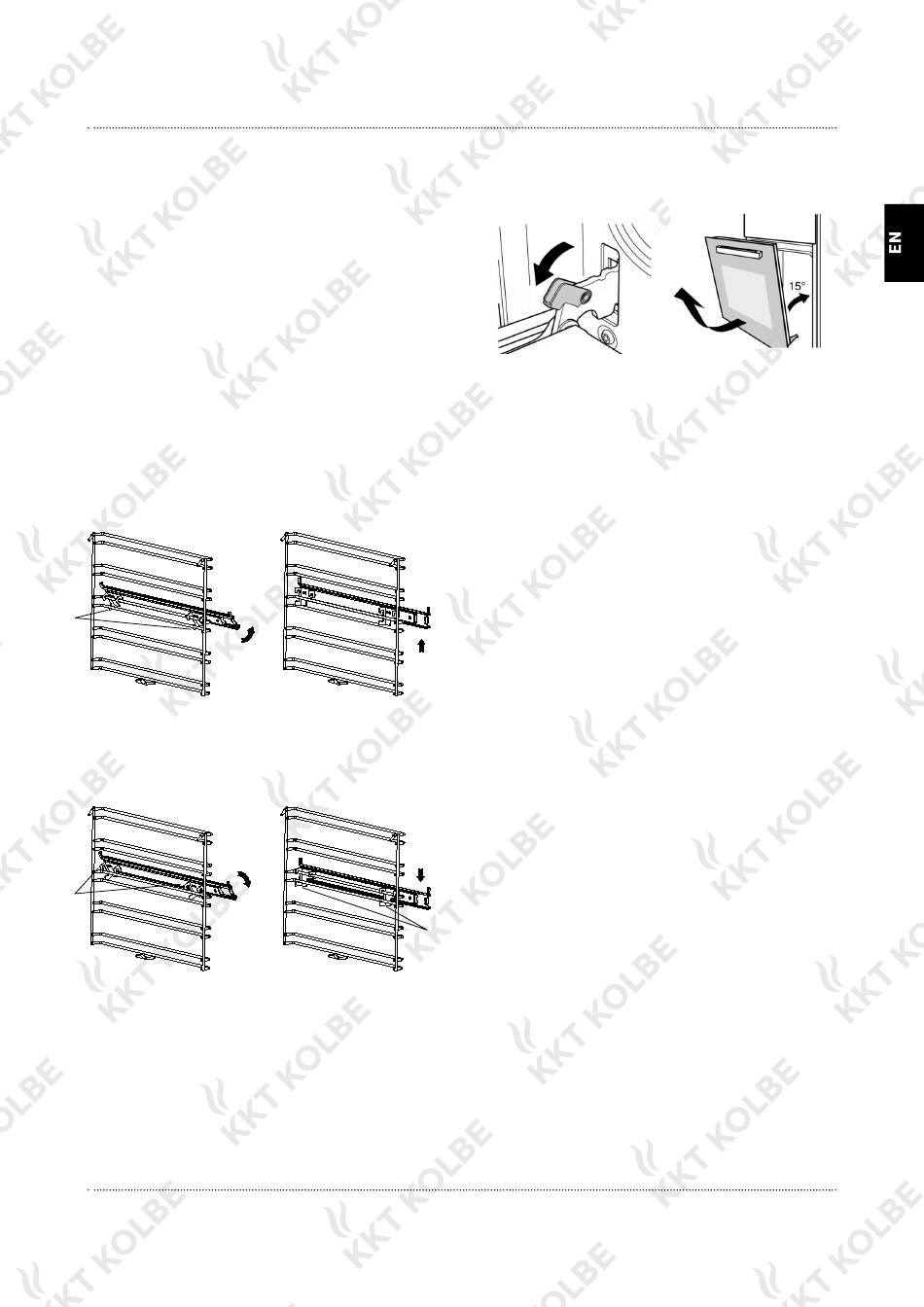

Removing the oven door

• Open the door to the maximum angle and pull the lock
back at the hinge of the door (1.1).
• Close the oven door at about 15 degree, then lift the
door and slowly pull out from the oven (1.2).
• For reinstalling after cleaning, follow the steps above in
reverse order.
2.1
A
2.3
B
2. 2
2. 4
C
1.1
Removing the telescopic pull-out rails
For disassembly on the left side
(right side mirror-inverted):
• Press on the hooks of the telescopic rail at the points
marked A until they are released from the slide-in rack
and then turn the telescopic rail slightly counterclock-
wise. (2.1)
• Lift the telescopic rail slightly so that you can remove it
from the rack without the hooks getting caught.
• Now you can remove the telescopic rail from the oven.
(2.2)
Fixing the telescopic pull-out rails
For mounting on the left side
(right side mirror-inverted):
• Place the rail hooks at the points marked B on the
upper guide rail of the desired insertion level in the
slide-in rack and then turn the telescopic rail clockwise.
(2.3)
• Press the rail hooks at the points marked C on the
lower guide rail until they „snap in". (2.4)
• Before closing the appliance door, make sure that all
telescopic rails are fully inserted.
