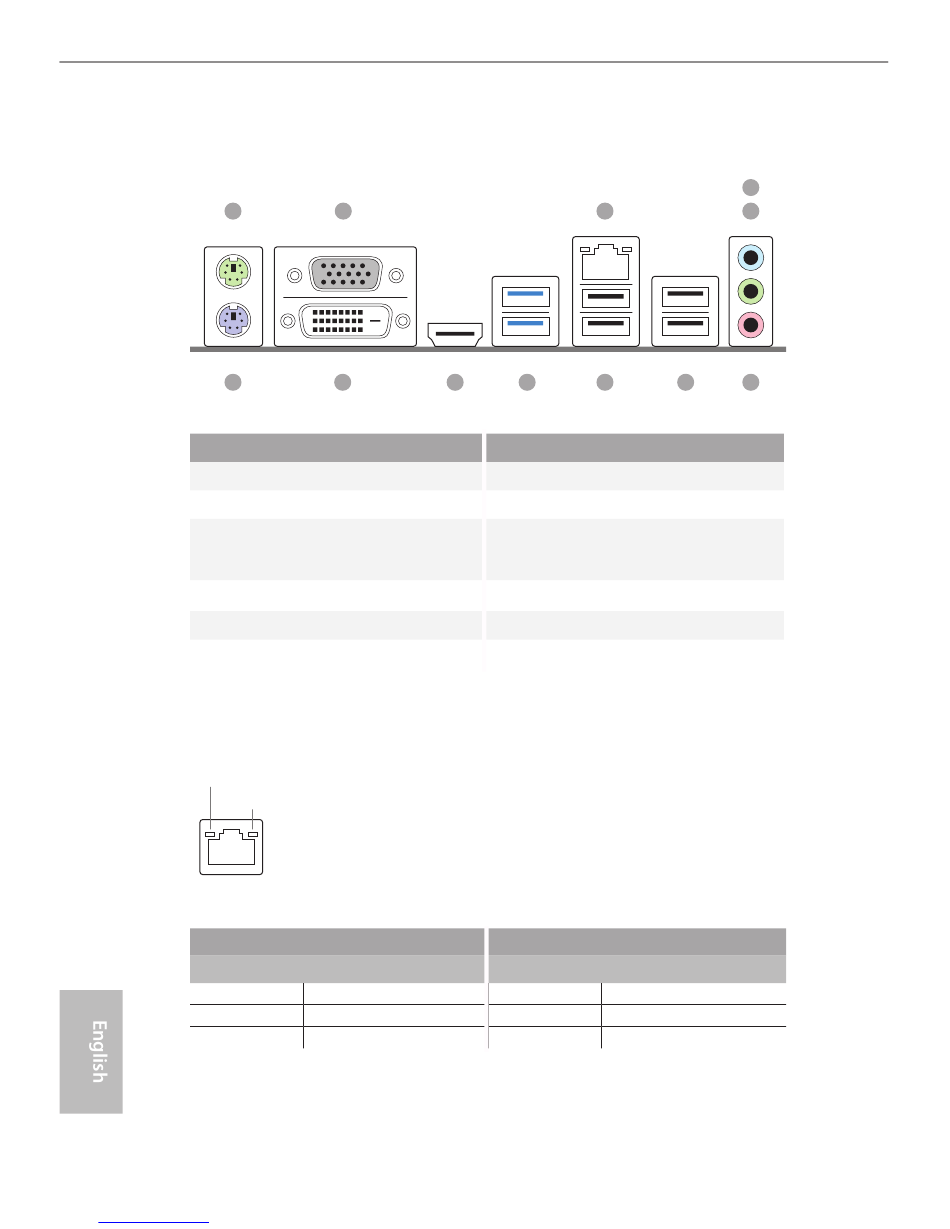

I/O Panel
1
2
12
11
No. Description
1
PS/2 Mouse Port
2
D-Sub Port
3
LAN RJ-45 Port*
4
Line In (Light Blue)
5
Front Speaker (Lime)
6
Microphone (Pink)
* There are two LEDs on the LAN port. Please refer to the table below for the LAN port LED indica-
tions.
ACT/LINK LED
SPEED LED
LAN Port
Activity / Link LED
Status
Description
Off
No Link
Blinking
Data Activity
On
Link
** It is recommended to install the USB Keyboard/Mouse cable to USB 2.0 ports (USB23 or
USB4_5) instead of USB 3.0 ports.
manuals search engine
3
10
9
8
No. Description
7
USB 2.0 Ports (USB4_5)**
8
USB 2.0 Ports (USB23)**
USB 3.0 Ports (USB_01)
9
(AMD A88X (Bolton-D4))
10
HDMI Port
11
DVI-D Port
12
PS/2 Keyboard Port
Speed LED
Status
Description
Off
10Mbps connection
Orange
100Mbps connection
Green
1Gbps connection
4
5
7
6
