HDLED (Hard Drive Activity LED):
Connect to the hard drive activity LED on the chassis front panel. The
LED is on when the hard drive is reading or writing data.
The front panel design may differ by chassis. A front panel module
mainly consists of power switch, reset switch, power LED, hard drive
activity LED, speaker and etc. When connecting your chassis front
panel module to this header, make sure the wire assignments and the
pin assign-ments are matched correctly.

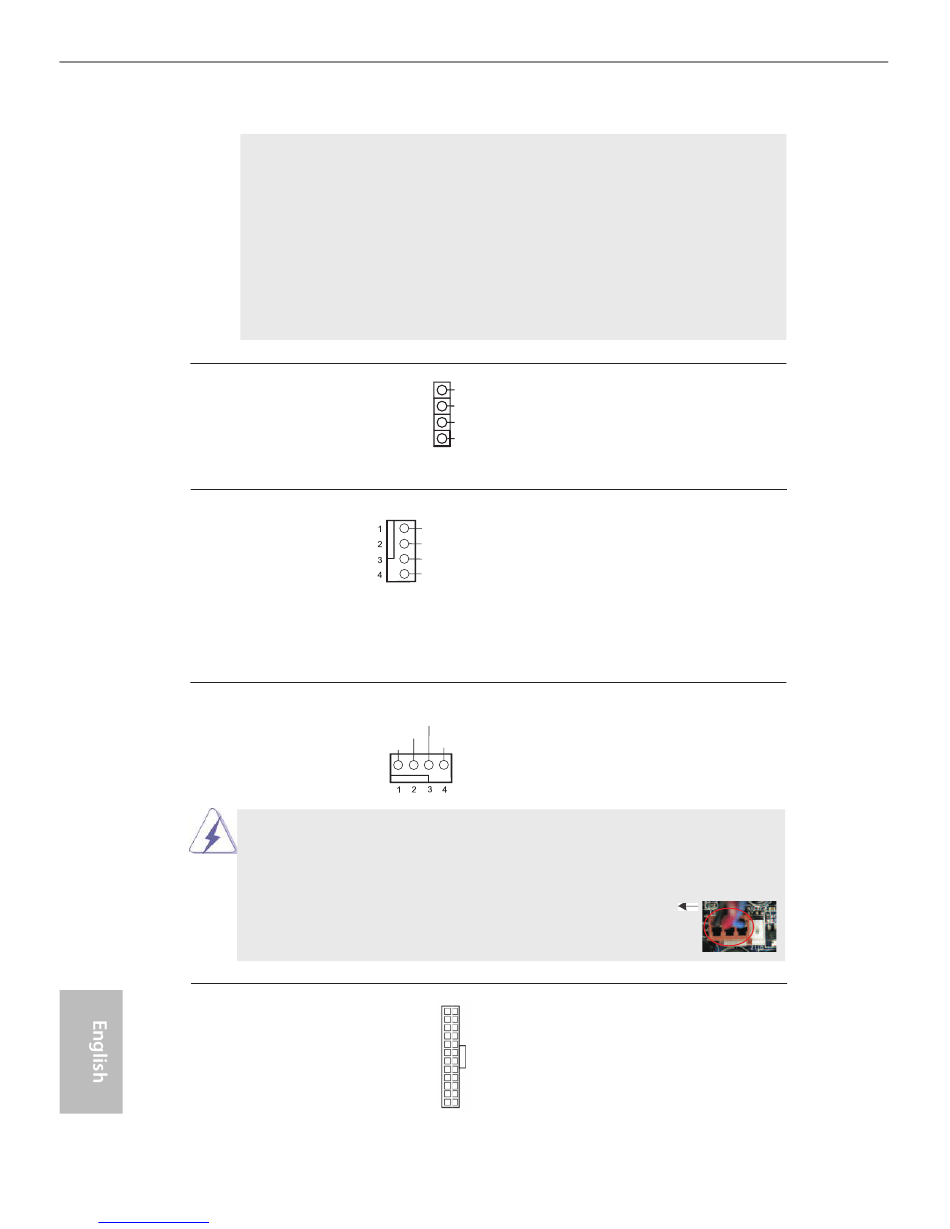

Chassis Speaker Header
(4-pin SPEAKER 1)
(see p.2 No. 7)
Chassis Fan Connector
(4-pin CHA_FAN1)
(see p.2 No. 10)
CPU Fan Connector
(4-pin CPU_FAN1)
FAN_VOLTAGE_CONTROL
(see p.2 No. 2)
Though this motherboard provides 4-Pin CPU fan (Quiet Fan) support, the 3-Pin
CPU fan still can work successfully even without the fan speed control function.
If you plan to connect the 3-Pin CPU fan to the CPU fan connector on this
motherboard, please connect it to Pin 1-3.
ATX Power Connector
(24-pin ATXPWR1)
(see p.2 No. 5)
manuals search engine
Please connect the chassis
SPEAKER
speaker to this header.
DUMMY
DUMMY
+5V
1
Please connect the fan cable
GND
to the fan connector and
FAN_VOLTAGE_CONTROL
match the black wire to the
FAN_SPEED
FAN_SPEED_CONTROL
ground pin. CHA_FAN1 fan
speed can be controlled through
UEFI or A-Tuning.
Please connect the CPU fan
FAN_SPEED
cable to the connector and
FAN_SPEED_CONTROL
GND
match the black wire to the
ground pin.
Pin 1-3 Connected
Please connect an ATX power
12
24
supply to this connector.
1
13
3-Pin Fan Installation
