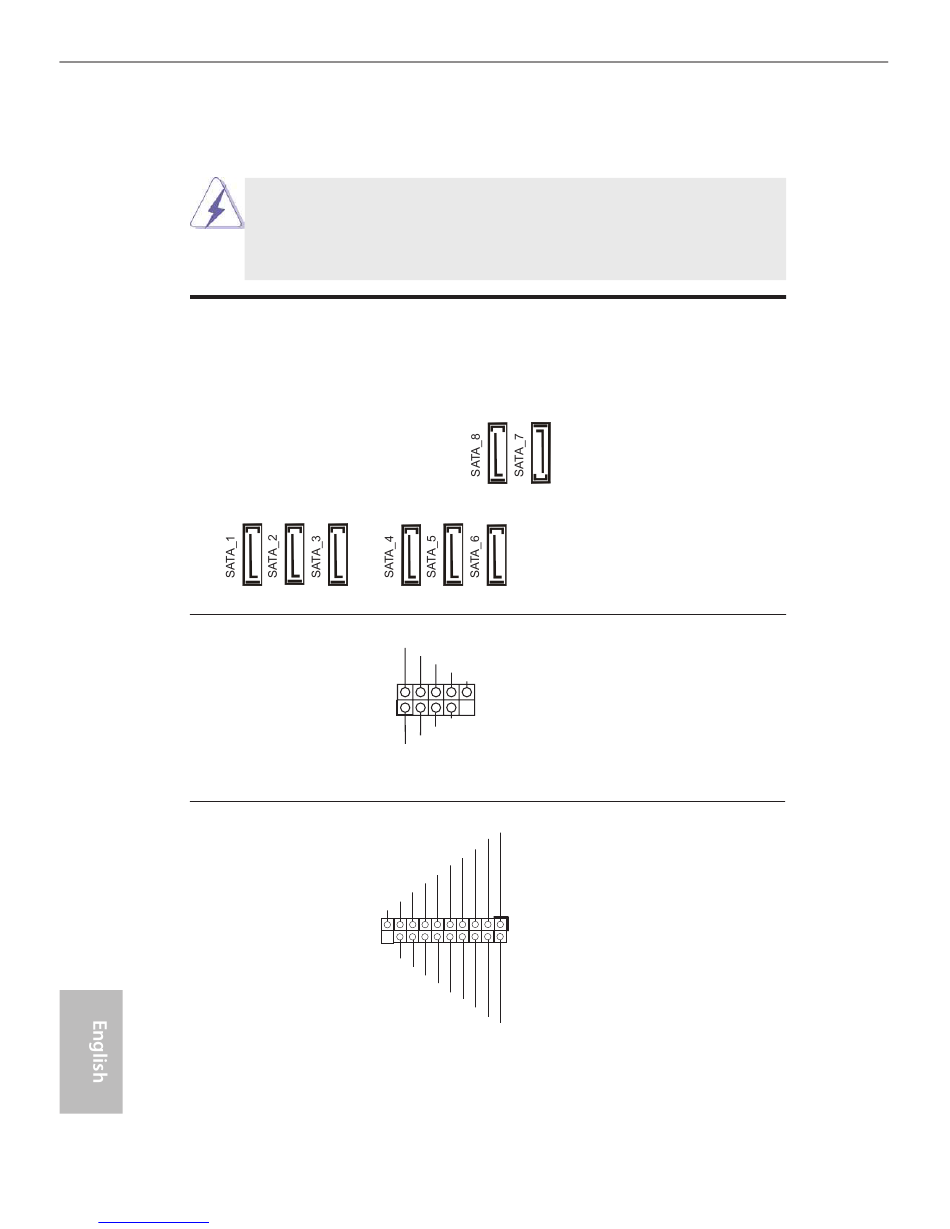

2.6 Onboard Headers and Connectors
Onboard headers and connectors are NOT jumpers. Do NOT place
jumper caps over these headers and connectors. Placing jumper caps
over the headers and connectors will cause permanent damage of the
motherboard!
Serial ATA3 Connectors
(SATA_1: see p.2, No. 16)
(SATA_2: see p.2, No. 15)
(SATA_3: see p.2, No. 14)
(SATA_4: see p.2, No. 13)
(SATA_5: see p.2, No. 12)
(SATA_6: see p.2, No. 11)
(SATA_7: see p.2, No. 9)
(SATA_8: see p.2, No. 8)
USB 2.0 Headers
(9-pin USB_6_7)
(see p.2 No. 18)
(9-pin USB_8_9)
(see p.2 No. 19)
USB 3.0 Header
(19-pin USB_10_11)
(see p.2, No. 20)
IntA_P_SSRX-
manuals search engine
USB_PWR
P-
P+
GND
DUMMY
1
GND
P+
P-
USB_PWR
ID
IntA_P_D+
IntA_P_D-
GND
IntA_P_SSTX+
IntA_P_SSTX-
GND
IntA_P_SSRX+
Vbus
1
Vbus
IntA_P_SSRX-
IntA_P_SSRX+
GND
IntA_P_SSTX-
IntA_P_SSTX+
GND
IntA_P_D-
IntA_P_D+
These eight Serial ATA3
(SATA3) connectors support
SATA data cables for internal
storage devices. The current
SATA3 interface allows up to
6.0 Gb/s data transfer rate.
Besides four default USB 2.0
ports on the I/O panel, there
are two USB 2.0 headers on
this motherboard. Each USB 2.0
header can support two USB
2.0 ports.
Besides two default USB 3.0
ports on the I/O panel, there is
one USB 3.0 header on this
motherboard. This USB 3.0
header can support two USB 3.0
ports.
