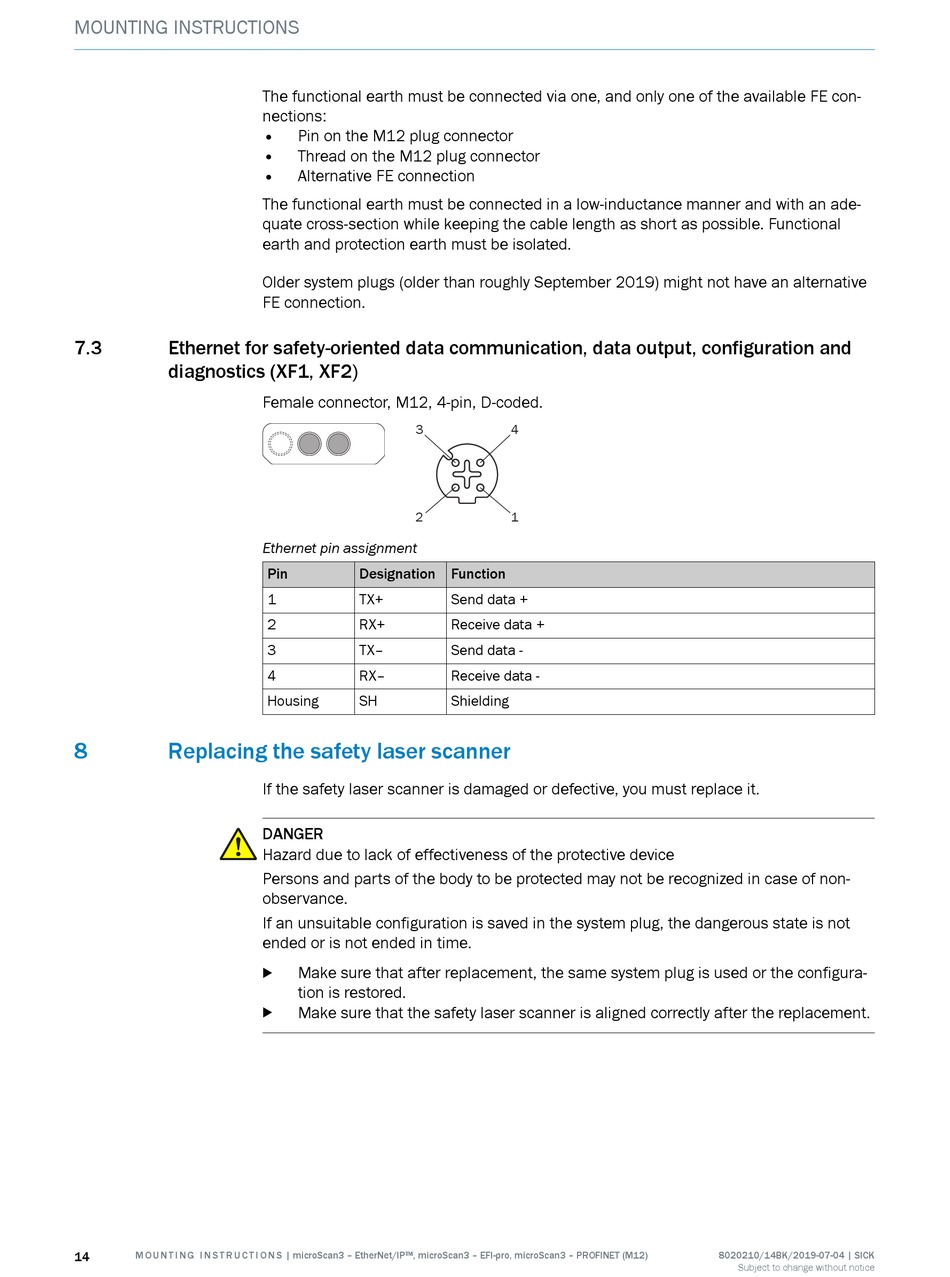

SICK microScan3 Montageanleitung Seite 14

MOUNTING INSTRUCTIONS
7.3 Ethernet for safety-oriented data communication, data output, configuration and
diagnostics (XF1, XF2)
8 Replacing the safety laser scanner
14 M O U N T I N G I N S T R U C T I O N S | microScan3 – EtherNet/IP™, microScan3 – EFI-pro, microScan3 – PROFINET (M12)
The functional earth must be connected via one, and only one of the available FE con‐
nections:
• Pin on the M12 plug connector
• Thread on the M12 plug connector
• Alternative FE connection
The functional earth must be connected in a low-inductance manner and with an ade‐
quate cross-section while keeping the cable length as short as possible. Functional
earth and protection earth must be isolated.
Older system plugs (older than roughly September 2019) might not have an alternative
FE connection.
Female connector, M12, 4-pin, D-coded.
3
2
Ethernet pin assignment
Pin Designation Function
1 TX+
2 RX+
3 TX–
4 RX–
Housing SH
If the safety laser scanner is damaged or defective, you must replace it.
DANGER
Hazard due to lack of effectiveness of the protective device
Persons and parts of the body to be protected may not be recognized in case of non-
observance.
If an unsuitable configuration is saved in the system plug, the dangerous state is not
ended or is not ended in time.
Make sure that after replacement, the same system plug is used or the configura‐
b
tion is restored.
Make sure that the safety laser scanner is aligned correctly after the replacement.
b
4
1
Send data +
Receive data +
Send data -
Receive data -
Shielding
