6

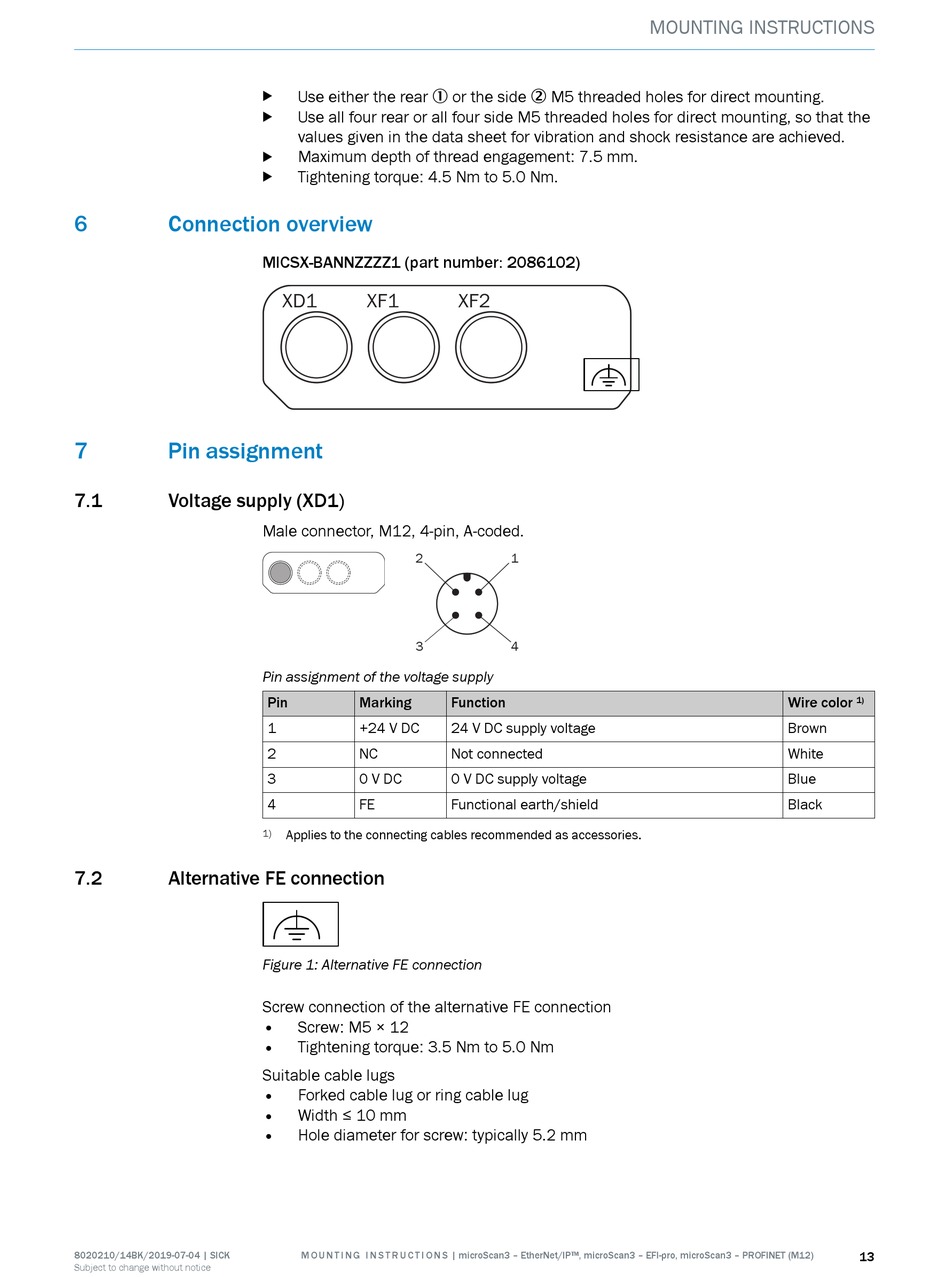

Connection overview

7

Pin assignment

7.1 Voltage supply (XD1)
7.2 Alternative FE connection
8020210/14BK/2019-07-04 | SICK
Subject to change without notice
Use either the rear 1 or the side 2 M5 threaded holes for direct mounting.
b
Use all four rear or all four side M5 threaded holes for direct mounting, so that the
b
values given in the data sheet for vibration and shock resistance are achieved.
Maximum depth of thread engagement: 7.5 mm.
b
Tightening torque: 4.5 Nm to 5.0 Nm.
b
MICSX-BANNZZZZ1 (part number: 2086102)
XD1 XF1
Male connector, M12, 4-pin, A-coded.
2
3
Pin assignment of the voltage supply
Pin Marking
1 +24 V DC
2 NC
3 0 V DC
4 FE
1) Applies to the connecting cables recommended as accessories.
Figure 1: Alternative FE connection
Screw connection of the alternative FE connection
•
Screw: M5 × 12
•
Tightening torque: 3.5 Nm to 5.0 Nm
Suitable cable lugs
• Forked cable lug or ring cable lug
• Width ≤ 10 mm
• Hole diameter for screw: typically 5.2 mm
M O U N T I N G I N S T R U C T I O N S | microScan3 – EtherNet/IP™, microScan3 – EFI-pro, microScan3 – PROFINET (M12)
XF2
1
4
Function
24 V DC supply voltage
Not connected
0 V DC supply voltage
Functional earth/shield
MOUNTING INSTRUCTIONS
Wire color
Brown
White
Blue
Black
1)
13
